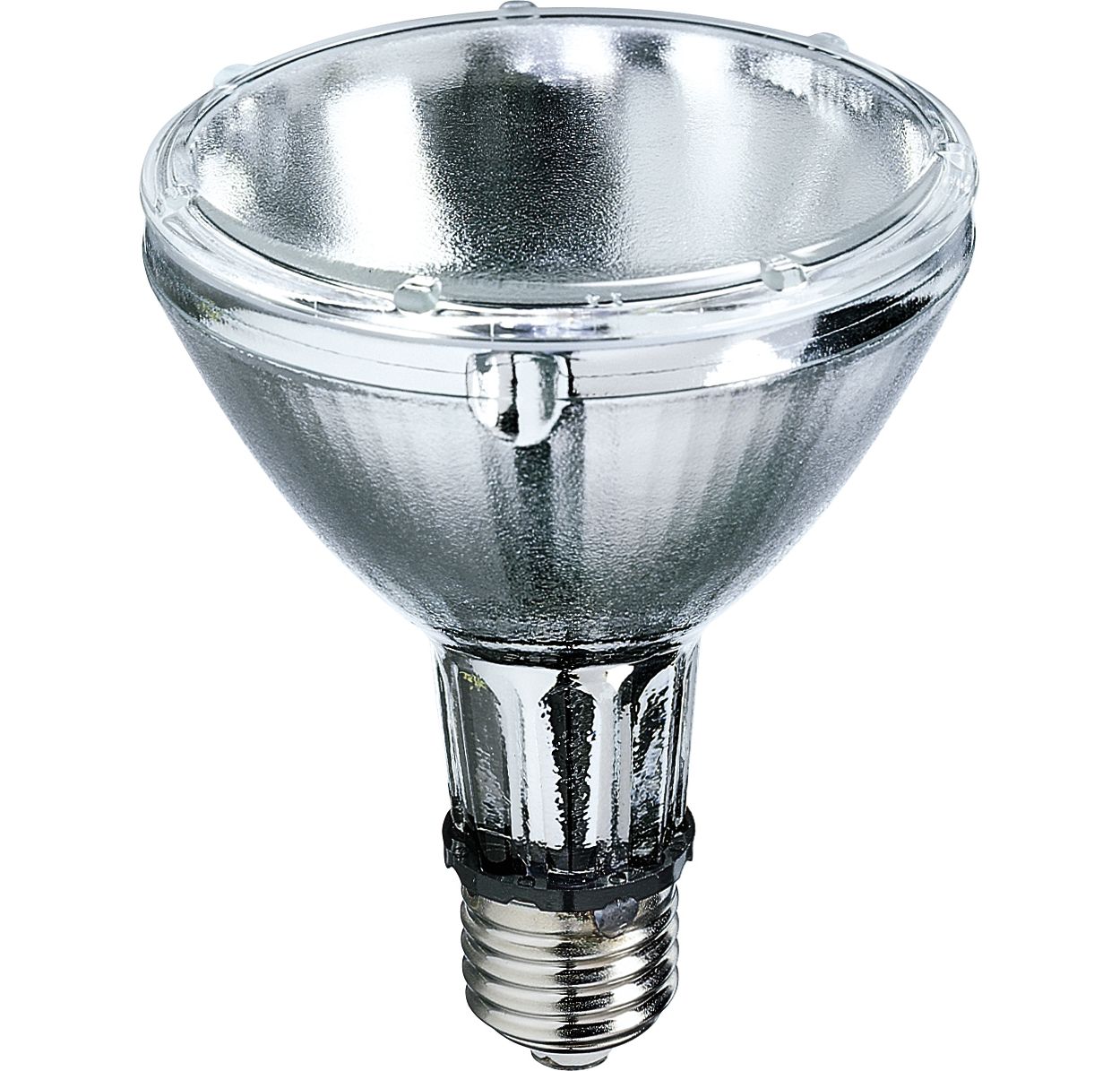

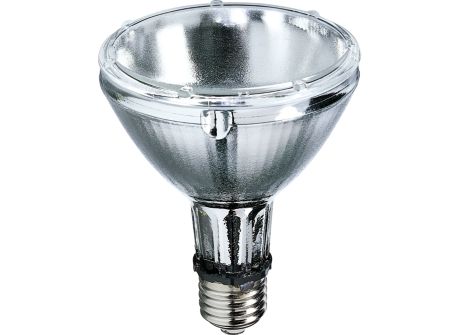

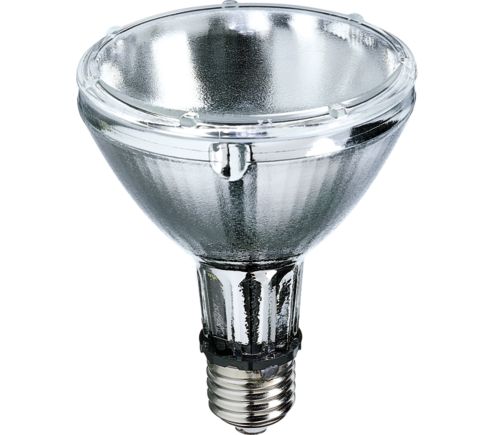

MASTERColour CDM-R 35W/830 E27 PAR20 30D 1CT

  • Beautiful sparkle, simple use

    MASTERColour CDM-R 35W/830 E27 PAR20 30D 1CT

    MASTERColour CDM-R 35W/830 E27 PAR20 30D 1CT

    Full Product Code: 871150021184200

    Order code: 21184200

    Downloads

    Leaflet
    Size:2.8 MB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Cap base
E27  [ E27]
Operating position
UNIVERSAL  [ Any or Universal (U)]
Life to 5% failures (nom.)
5000 h
Life to 20% failures (nom.)
8000 h
Life to 50% failures (nom.)
8000 h
Switching cycle
800X
Light Technical
Colour code
830  [ CCT of 3000K]
Beam Angle (Nom)
30 °
Beam angle technical
30 °
Beam angle technical
37.5 °
Beam angle technical
22.5 °
Luminous flux (rated) (nom.)
1900 lm
Luminous intensity (nom.)
5300 cd
Beam description
Flood  [ Flood]
Colour designation
Warm White (WW)
Chromaticity coordinate X (nom.)
0.433
Chromaticity coordinate Y (nom.)
0.402
Correlated colour temperature (nom.)
3000 K
Color rendering index (nom.)
81
LLMF at end of nominal lifetime (nom.)
52 %
Luminous Flux In 90° Cone (Rated)
1650 lm
Operating and Electrical
Power (Rated) (Nom)
35.0 W
Lamp current (EM) (nom.)
0.53 A
Ignition supply voltage (max.)
198 V
Ignition peak voltage (max.)
5000 V
Ignition supply voltage (min.)
198 V
Re-ignition time (min.) (max.)
15 min
Warm-up time to 60% light (nom.)
120 s
Ignition time (max.)
30 s
Voltage (Max)
96 V
Voltage (Min)
80 V
Voltage (Nom)
88 V
Controls and Dimming
Dimmable
No
Run-up time 90% (max.)
3 min
Mechanical and Housing
Bulb finish
Clear (CL)
Approval and Application
Energy efficiency label (EEL)
A
Mercury (Hg) content (nom.)
2.8 mg
Energy Consumption kWh/1000 h
42 kWh
Luminaire Design Requirements
Bulb temperature (max.)
300 °C
Cap base temperature (max.)
200 °C
Product Data
Full product code
871150021184200
Order product name
MASTERColour CDM-R 35W/830 E27 PAR20 30D 1CT
EAN/UPC – product
8711500211842
Order code
21184200
Numerator – quantity per pack
1
Numerator – packs per outer box
12
Material no. (12NC)
928084000691
Net weight (piece)
0.111 kg
ILCOS Code
MRS/UB-35/830-H-E27-63.5/96/30

Eco passport - Our environmental product specifications overview

Philips cares about the environment and society at large, and strongly supports eco-design of products.

Installation Diagrams
E27
E27
Performance Diagrams
Photometrics
