      Product family information

      Whether for a new building or renovation of an existing space, customers want lighting solutions that provide quality of light and substantial energy and maintenance savings. The new CoreLine Wall-mounted range of LED products can be used to replace traditional wall-mounted luminaires incorporating compact fluorescent lamps. The process of selecting, installing and maintaining is so easy – it’s a simple switch.


      Up to 55% energy savings compared with luminaires with PL-C lamps
      Direct replacement for traditional wall-mounted luminaires
      Complete range covering all application requirements in one product (light levels, IP65, IK10, certified emergency lighting, built-in controls)


      Unobtrusive design
      Three lumen packages replacing traditional wall-mounted luminaires with 1x18 W / 2x18 W / 2x26 W PL-C
      Water- and vandal-proof as standard
      Phase-cut dimming as standard
      Frosted diffuser ensuring homogeneous light effect and visual comfort
      Optional emergency lighting
      Optional on/off movement detection or programmed 100%-10%-0% corridor dimming functionality


      Public entrance areas
      Emergency exits
      Parking garages
      Outdoor safety lighting
      Product family details

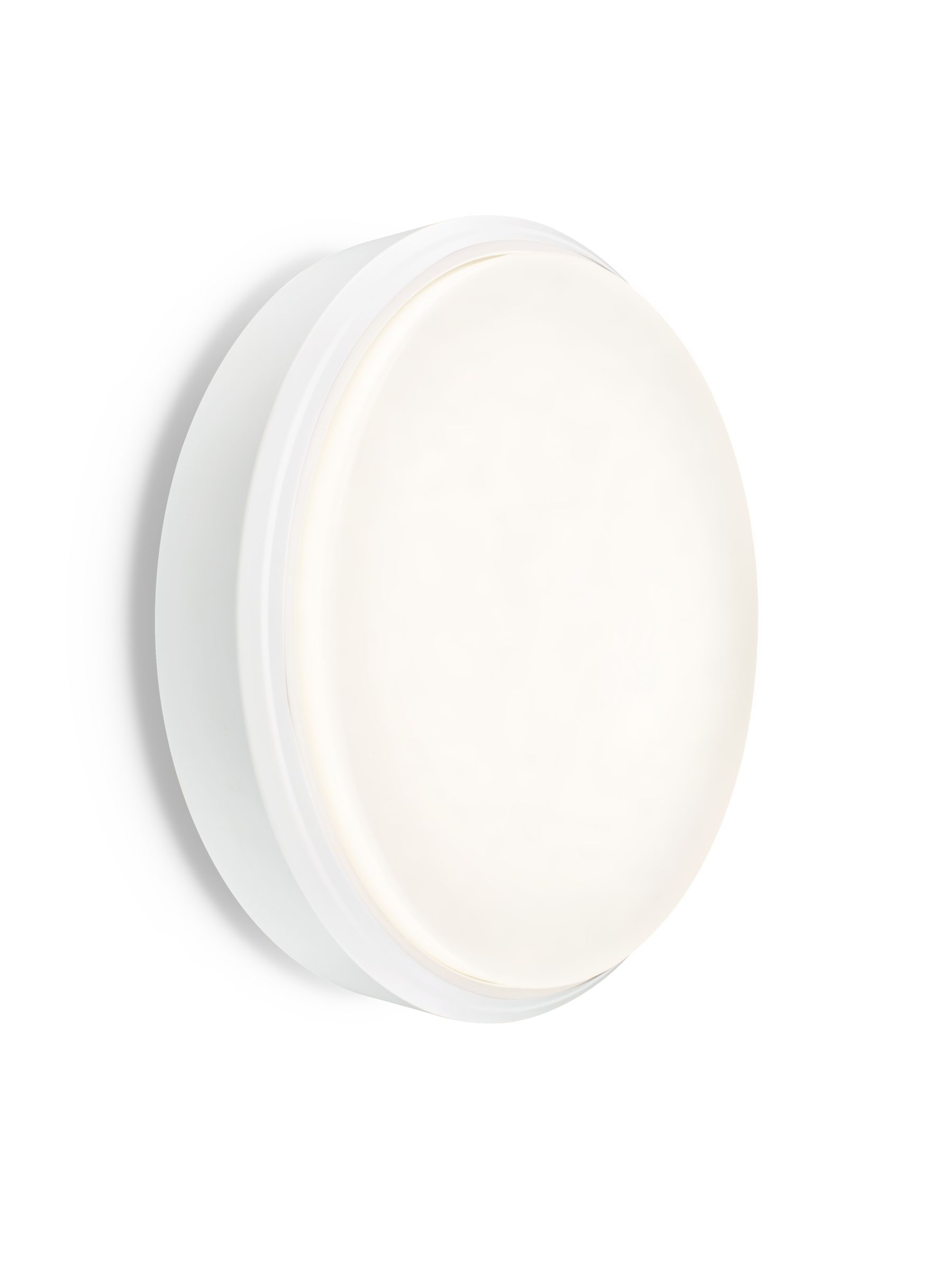

      • WL120V (round version)
      • WL121V (oval version)
      Light source
      • Non-replaceable LED module
      Power (+/-10%)
      • 8 W (LED5S version)
      • 18 W (LED12S version)
      • 24 W (LED16S version)
      Beam angle
      • 120º
      Luminous flux
      • 500 lm (LED5S version)
      • 1200 lm (LED12S version)
      • 1600 lm (LED16S version)
      Correlated Color Temperature
      • 3000 or 4000 K
      Color Rendering Index
      • ≥ 80
      Median useful life L70B50
      • 50,000 hours
      Median useful life L80B50
      • 30,000 hours
      Median useful life L90B50
      • 15,000 hours
      Average ambient temperature
      • +25 ºC
      Operating temperature range
      • -20 to +35 ºC (wall-mounted position)
      • -20 to +25 ºC (ceiling-mounted position)
      • 0 to +25 ºC (emergency lighting)
      • Built-in, replaceable
      Mains voltage
      • 220-240V / 50-60 Hz
      • TE/LE dimming, compatible with most commercial available ELV dimmers
      • Emergency lighting (integrated): 3 hours (EL3)
      • Movement detection unit (integrated): on/off switch with day light override (MDU)
      • DALI driver and movement detection unit (integrated): corridor functionality (PSD MDU)
      • Housing: nylon 30% fiber glass re-inforced, UV resistant
      • Difuser: high grade polycarbonate, UV resistant
      • White (RAL 9010)
      • Grey (RAL 7043)
      Optical cover
      • Polycarbonate difuser
      • Push-in connector with pull relief (PIP)
      • LED module closed, no internal cleaning required
      • Screw mounting, directly onto surface
      • 4-point screw installation of housing to wall
      • 4-point torx screw connection difuser to housing
      • Through-wiring not possible
