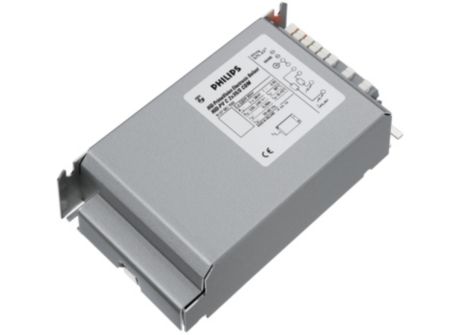

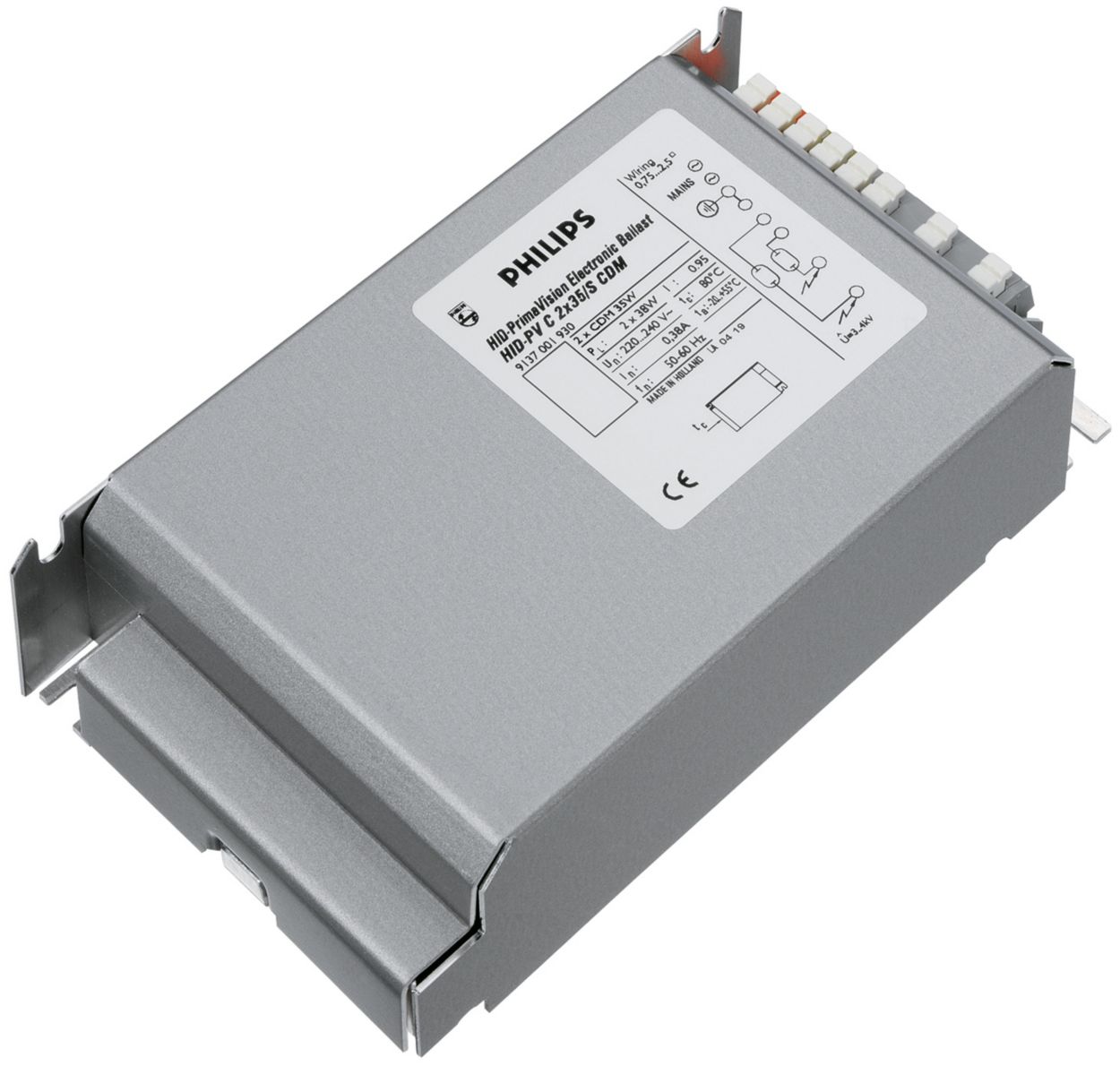

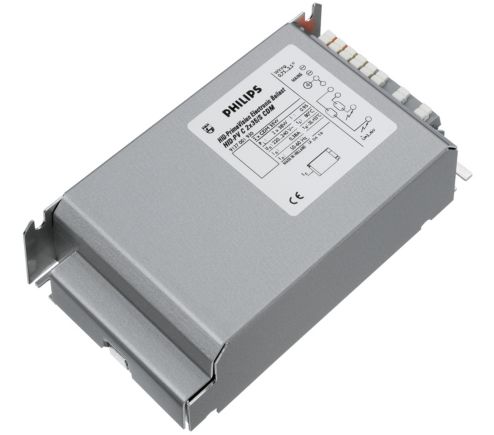

PrimaVision Twin for CDM

HID-PV C 2x35 /S CDM 220-240V 50/60Hz

HID-PV C 2x35 /S CDM 220-240V 50/60Hz

  • PrimaVision Twin (35W & 70W) for CDM - The cost-effective solution

    Product information

    Downloads

    Leaflet
    Size:114.4 kB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Characteristics
Application code
Int. Earth Loop
Design
-
Rated Lamptype
CDM
Rated Number of Lamps
2 piece
Rated Ballast-Lamp Power
35
Line Voltage
220-240 V
Line Frequency
50/60 Hz
Housing
/S
Suitable for Outdoor use?
No
Operating Characteristics
Automatic restart
Yes
Ignition switch-off time
20 min
Ignition Voltage
4.5 (max) kV
Operating frequency *
0.14 kHz
Mains voltage safety (AC)
-18%/+10%
Mains voltage performance (AC)
-10%/+6%
Inrush current Peak
33 (max) A
Inrush current Width
0.5 ms
Earth leakage current
0.5 (max) mA
Power losses gear
8 W
Constant wattage deviation
-3%/+3%
PowerFactor 100% output power
0.95 -
Overvoltage protection 320Vac
48 hr
Max ballast on MCB(16A type B)
14 x
Hum and Noise level
Inaudible
Wiring Characteristics
Cable-Cap outputwires mutual
120 pF
Connector type
Insert
Striplength
10.0-11.0 mm
Wcs Ballast contacts
0.50-2.50 mm2
Temperature Characteristics
Active temperature protection
Yes
F-marking
Yes
T-case life
70 C
T-case maximum
80 (max) C
T-ambient
-20 (min), 55 (max) C
T-storage
-25 (min), 80 (max) C
Product Dimensions
Length A1
135.0 mm
Fixing Hole Distance Length A2
123.5 mm
Width B1
75.0 mm
Fixing Hole Distance Width B2
63.5 mm
Height C1
32.0 mm
Fixing Hole Diameter D1
4.5 mm
Approval & Application Chars
EMI 9 kHz ... 300MHz
CISPR 15 ed 7.2
Vibrations
IEC 68-2-6 Fc
Bumps
IEC 68-2-29 Eb
CE marking
Yes
ENEC certificate
Yes
VDE certificate
No
VDE-EMV certificate
No
CB Certificate
Yes
Product Data
Order code
895728 00
Full product code
872790089572800
Full product name
HID-PV C 2x35 /S CDM 220-240V 50/60Hz
Order product name
HID-PV C 2x35 /S CDM 220-240V 50/60Hz
Pieces per pack
1
Packing configuration
12
Packs per outerbox
12
Bar code on pack - EAN1
8711500881892
Bar code on outerbox - EAN3
8727900895728
Logistic code(s) - 12NC
913700656866
Net weight per piece
0.271 kg
Successor order code
Installation Diagrams
HID-PV C 2x35 /S CDM 220-240V 50/60Hz
