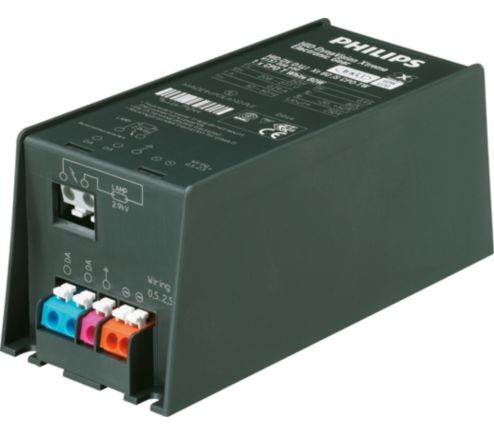

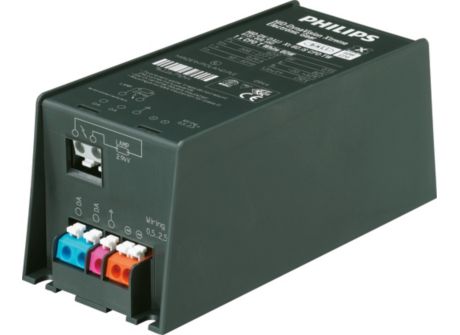

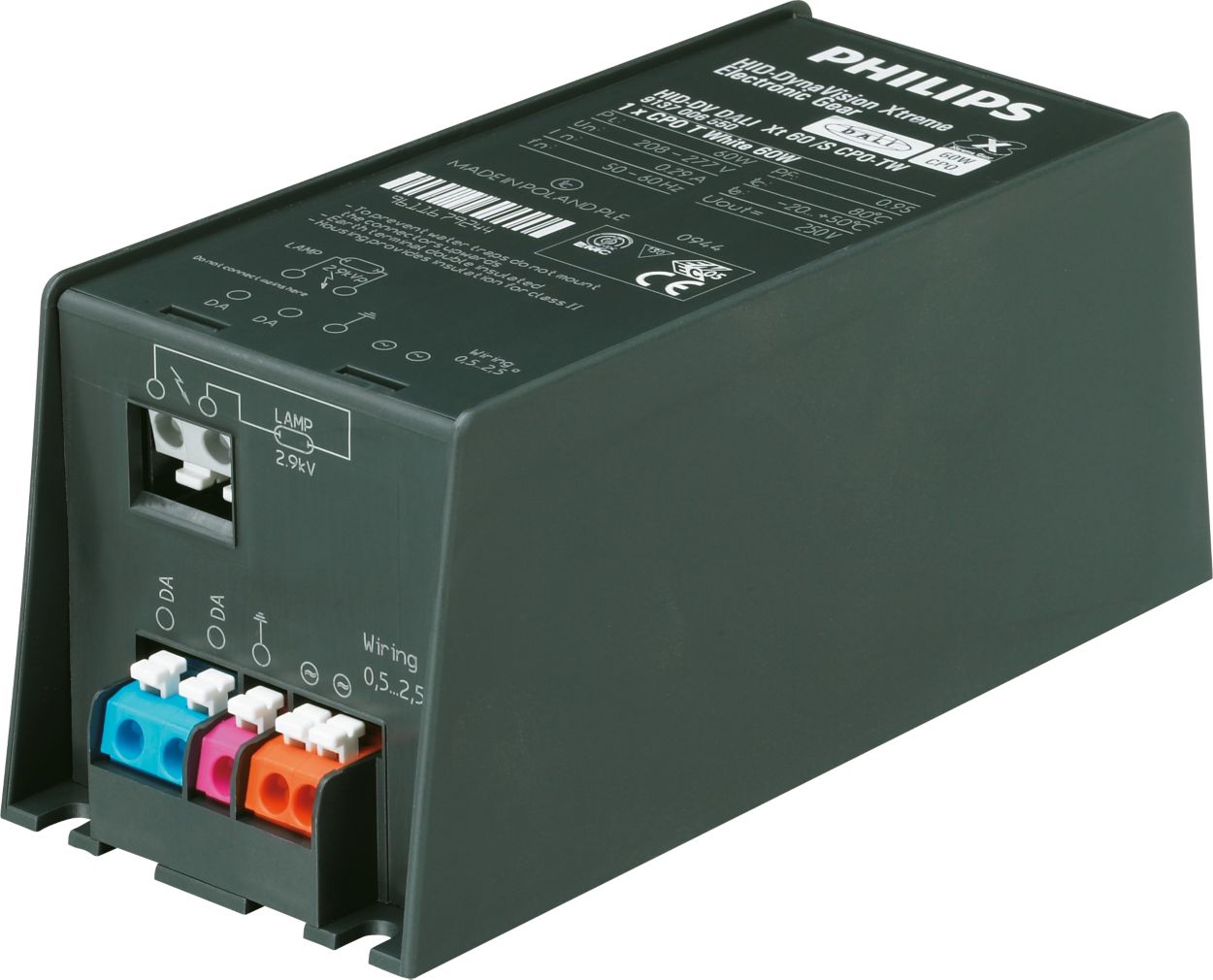

DynaVision Programmable Xtreme for CPO

HID-DV PROG Xt 90 CPO C1 208-277V

HID-DV PROG Xt 90 CPO C1 208-277V

  • Xtreme drivers for maximum energy savings

    Product information

    Downloads

    Leaflet
    Size:126.5 kB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Characteristics
Interface
PROG
Rated Lamptype
CPO
Rated Number of Lamps
1 piece
Rated Ballast-Lamp Power
90
Line Voltage
208-277 V  [208-240-277]
Line Current
0.49 A
Line Frequency
50/60 Hz
Housing
C1
IP Classification Luminaires
34
Suitable for Outdoor use?
Yes
Lifetime 90% surv.@Tcaselife
80000 hr
Operating Characteristics
Default Lamp selected
CPO90
Programmable lamp settings
CPO90/SON100/CDO100
Pre-set integrated controls
Dali
Programmable dimming options
ALO/CLO/Dynadimmer/Linesitch/AmpDim
Automatic restart
Yes
Ignition switch-off time
20 (max) min
Ignition Voltage
5 (max) kV
Operating frequency *
0.40 kHz
Mains voltage safety (AC)
160-305V
Mains voltage performance (AC)
188-305V
Min. Mains voltage operational
172 (min) V
Output peak voltage
250 (max) V
Inrush current Peak
52 (max) A
Inrush current Width
0.47 ms
Earth leakage current
0.7 (max) mA
Standby power consumption
W
Lamp Power Tolerance
-3%/+3%
Run-Up Time before Dimming
5 min
Fade Rate Down
0.5 %/sec
Fade Rate Up
6.3 %/sec
PowerFactor 100% output power
0.98 -
Power Factor (dimmed 50%)
0.97 (min) -
Overvoltage protection 320Vac
48 hr
Overvoltage protection 350Vac
2 hr
Control input protection
Yes (Basic insulation)
Max ballast on MCB(16A type B)
5 x
Hum and Noise level
< 30 dB(A)
Regulating level
50%-100%
Wiring Characteristics
Cable-Cap outputwires mutual
1000 pF
Connector type
WAGO series 804
Max. cable length Device/Lamp
10 m
Striplength
10.0-11.0 mm
Wcs Ballast contacts
0.50-2.50 mm2
System Chars on driver level
Rated Lamp Power on CPO
90
System Power on CPO
98
Lamp Power on CPO
90
Power Loss on CPO
8
Power Loss on CPO at Dim Power
5.5
Temperature Characteristics
Active temperature protection
Yes
F-marking
Yes
T-case life
80 C
T-case switch-off
92 (min) C
T-ambient
-30 (min), 50 (max) C
T-storage
-30 (min), 50 (max) C
Product Dimensions
Length A1
150.0 mm
Fixing Hole Distance Length A2
135.9 mm
Width B1
65.0 mm
Fixing Hole Distance Width B2
46.8 mm
Height C1
65.0 mm
Fixing Hole Diameter D1
5.0 mm
Approval & Application Chars
EMI 9 kHz ... 300MHz
CISPR 15 ed 7.2
EMI 30 MHz .. 1000MHz
-  [Not specified]
Safety Standard
IEC 607, 609, 926, 928  [No Standard for HID Lamp drivers exists. Requirements in these standards to be used if considered relevant for the product.]
Quality Standard
ISO 9000:2000
Environmental Standard
ISO 14001
Harmonic current emissions
IEC 61000-3-2
Vibrations
IEC 68-2-6 Fc (10-150Hz, 2G)
Bumps
IEC 68-2-29 Eb (10G/16ms)
Humidity
EN 61347-2-12 clause 11
Approval marks
ENEC / VDE-EMV
CE marking
Yes
ENEC certificate
No
VDE certificate
No
VDE-EMV certificate
No
ICEUR certificate
No
Surge Protection
EN61547 (L-L 2kV, L-G 4kV), 10kV TIL
CB Certificate
No
Product Data
Order code
204558 00
Full product code
871829120455800
Full product name
HID-DV PROG Xt 90 CPO C1 208-277V
Order product name
HID-DV PROG Xt 90 CPO C1 208-277V
Pieces per pack
1
Packing configuration
12
Packs per outerbox
12
Bar code on pack - EAN1
8718291204558
Bar code on outerbox - EAN3
8718291204565
Logistic code(s) - 12NC
913700675166
Net weight per piece
0.950 kg
Successor order code
