    • Product Description

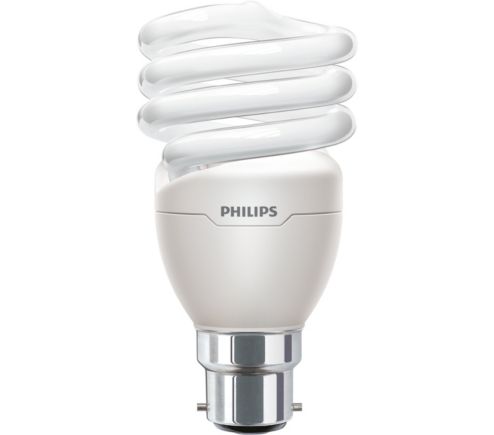

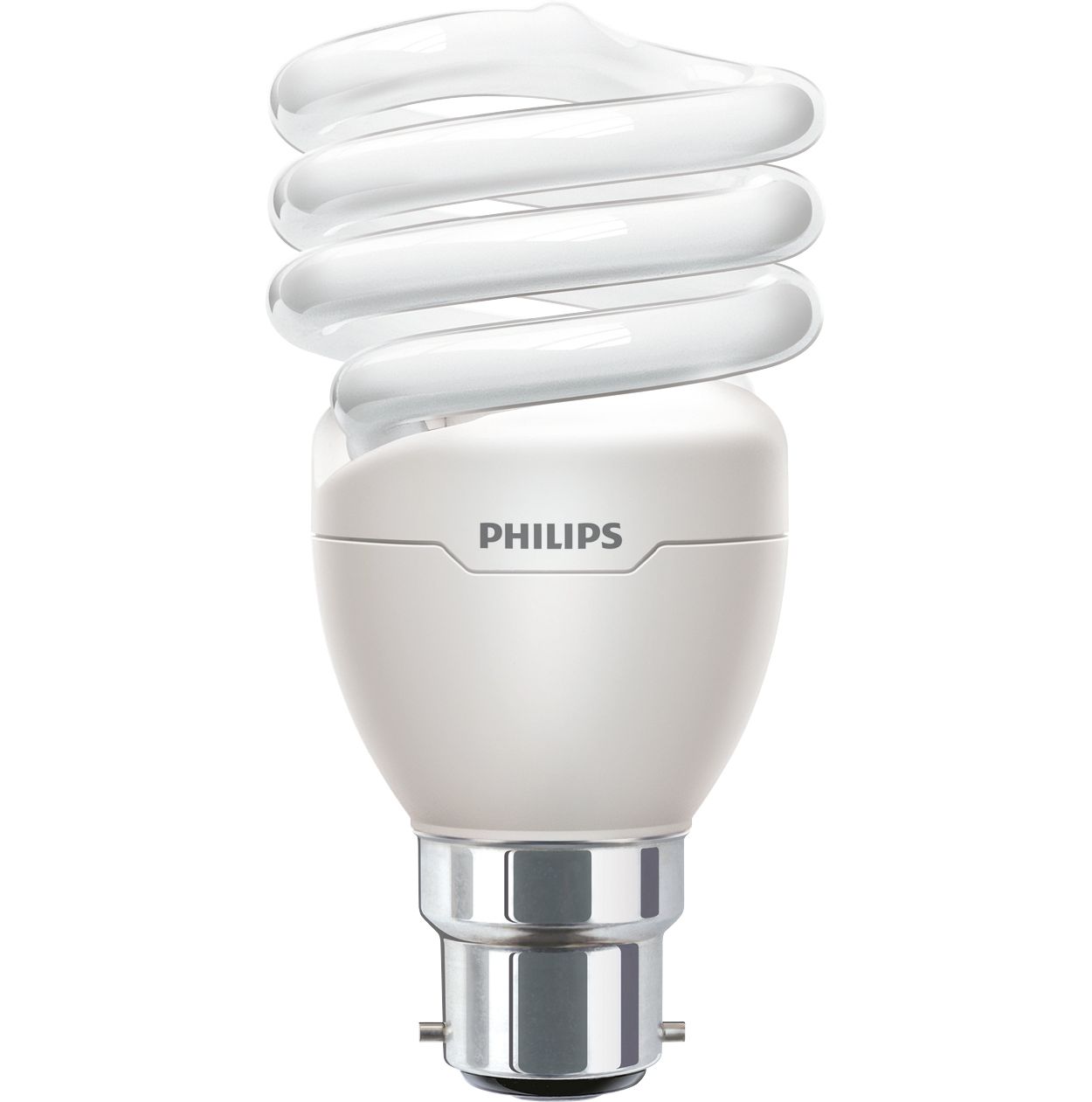

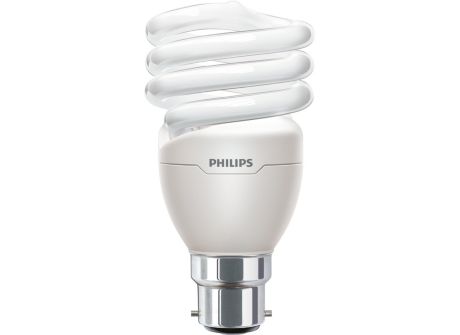

      TORNADO 20W CDL B22 220-240V 1PF/6
      TORNADO 20W CDL B22 220-240V 1PF/6
      TORNADO

      TORNADO 20W CDL B22 220-240V 1PF/6

      Downloads

      Spec Sheet
      Size:347.3 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Input Frequency
    50 or 60 Hz
    Power Consumption
    20 W
    Line Frequency
    50 or 60 Hz
    Power Factor (Fraction)
    0.6
    Starting Time (Nom)
    0.3 s
    Voltage (Nom)
    220-240 V
    Lamp Current (Nom)
    150 mA
    Approval and Application
    Mercury (Hg) Content (Nom)
    1.5 mg
    Energy Consumption kWh/1000 h
    20 kWh
    Product Data
    Order product name
    TORNADO 20W CDL B22 220-240V 1PF/6
    Numerator - Quantity Per Pack
    1
    Full product code
    871829113809900
    Full product name
    TORNADO 20W CDL B22 220-240V 1PF/6
    Order code
    929689858402
    Numerator - Packs per outer box
    6
    EAN/UPC - Case
    8718291138105
    Material number (12NC)
    929689858402
    Controls and Dimming
    Dimmable
    No
    General Information
    Nominal lifetime
    8,000 hour(s)
    Lighting Technology
    Compact Fluorescent Integrated
    Cap-Base
    B22  [B22]
    Rated Lifetime (Hours)
    8,000 hour(s)
    Switching Cycle
    5,000
    Mechanical and Housing
    Bulb Shape
    Spiral
    Light Technical
    Chromaticity Coordinate Y (Nom)
    337
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Correlated Color Temperature (Nom)
    6500 K
    Color Designation
    Cool Daylight
    Luminous Efficacy (rated) (Nom)
    61 lm/W
    Chromaticity Coordinate X (Nom)
    313
    Luminous Flux
    1,200 lumen
    Color rendering index (CRI)
    80
    Color Code
    865  [CCT of 6500K]
    Installation Diagrams
     B22 Spiral
    B22 Spiral
    B22
    B22
