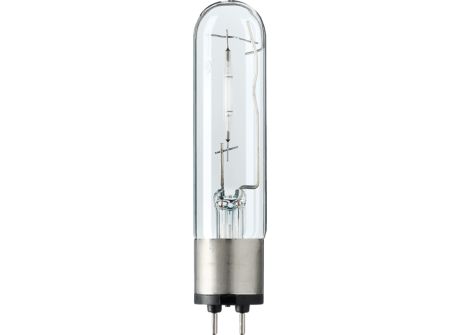

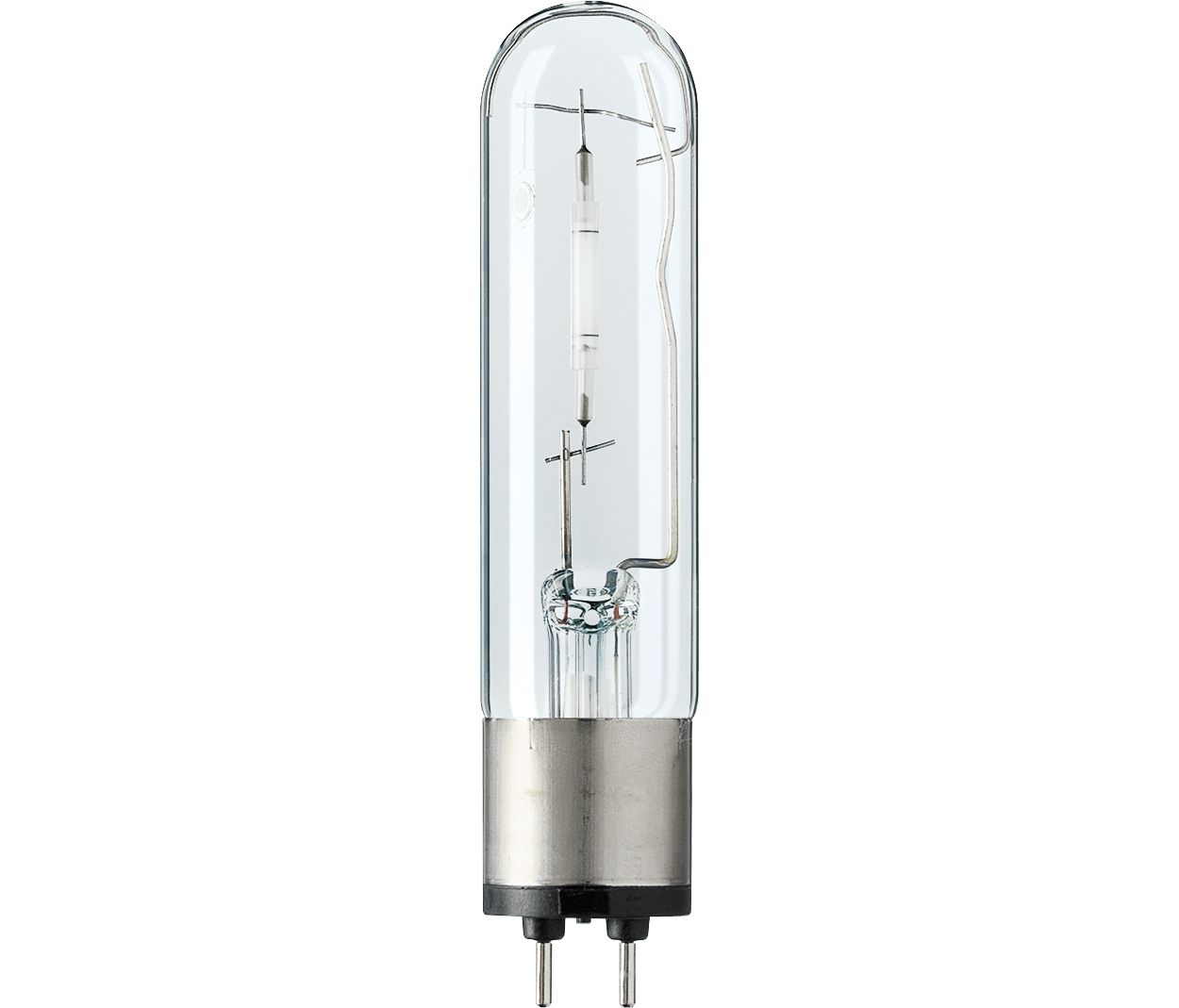

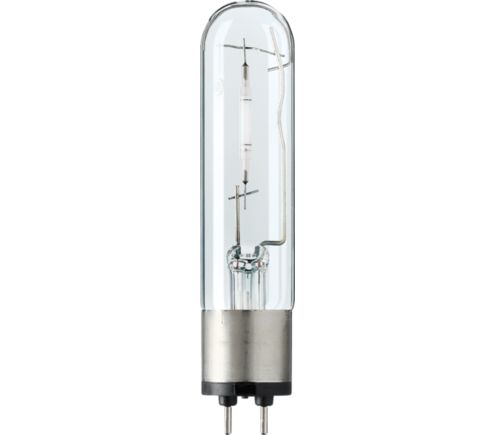

      MASTER SDW-T 35W/825 PG12-1 1SL/12
      MASTER SDW-T 35W/825 PG12-1 1SL/12

      MASTER SDW-T 35W/825 PG12-1 1SL/12

      Order code: 73402015

      Full Product Code: 871150073402015

      Downloads

      Spec Sheet
      Size:385.8 kB

      See all downloads

    Specifications Show all

    General Information
    Cap base
    PG12-1  [ PG12-1]
    Operating position
    UNIVERSAL  [ Any or Universal (U)]
    Life to 5% failures (nom.)
    8000 h
    Life to 20% failures (nom.)
    12000 h
    Life to 50% failures (nom.)
    15000 h
    Useful life (nom.)
    10000 h
    ANSI code HID
    -
    System description
    High Voltage  [ 200-250V (HV)]
    Light Technical
    Colour Code
    825  [ CCT of 2,500 K]
    Luminous flux (rated) (nom.)
    1320 lm
    Colour designation
    Golden White
    Lumen maintenance 2,000 hours (nom.)
    95 %
    Lumen maintenance 5,000 hours (nom.)
    90 %
    Chromaticity coordinate X (nom.)
    479
    Chromaticity coordinate Y (nom.)
    417
    Correlated Colour Temperature (Nom)
    2500 K
    Luminous efficacy (rated) (nom.)
    40 lm/W
    Colour-rendering index (min.)
    80
    Colour rendering index (nom.)
    81
    Operating and Electrical
    Power (Rated) (Nom)
    33.3 W
    Lamp current run-up (max.)
    1.0 A
    Lamp current (EM) (nom.)
    0.47 A
    Ignition peak voltage (max.)
    5000 V
    Ignition supply voltage (min.)
    205 V
    Voltage (Max)
    106 V
    Voltage (Min)
    86 V
    Voltage (Nom)
    98 V
    Controls and Dimming
    Dimmable
    No
    Mechanical and Housing
    Lamp Finish
    Clear
    Bulb material
    Soft Glass
    Approval and Application
    Energy efficiency label (EEL)
    B
    Mercury (Hg) content (nom.)
    3.8 mg
    Energy consumption kWh/1,000 hours
    36 kWh
    Luminaire Design Requirements
    Bulb temperature (max.)
    350 °C
    Cap-base temperature (max.)
    120 °C
    Product Data
    Full product code
    871150073402015
    Order product name
    MASTER SDW-T 35W/825 PG12-1 1SL/12
    EAN/UPC – product
    8711500734020
    Order code
    73402015
    SAP numerator – quantity per pack
    1
    Numerator – packs per outer box
    12
    SAP material
    928153809230
    SAP net weight (piece)
    0.048 kg
    ILCOS code
    STH-35-H/E-PG12
    Installation Diagrams
    PG12-1
    PG12-1
    OpPos_any.eps-Operating position
    OpPos_any.eps-Operating position
    Performance Diagrams
    LDRU_SDW-T-Lamp performance during run-up
    LDRU_SDW-T-Lamp performance during run-up
    LDSL_SDW-T_100W_825-Service Lifetime
    LDSL_SDW-T_100W_825-Service Lifetime
    Photometrics
    LDPO_SDW-T_35W_50W_100W-Spectral power distribution Colour
    LDPO_SDW-T_35W_50W_100W-Spectral power distribution Colour
    LDLD_SDW-T-Light distribution diagram
    LDLD_SDW-T-Light distribution diagram
