    • Perfect sparkle, unrivalled efficiency

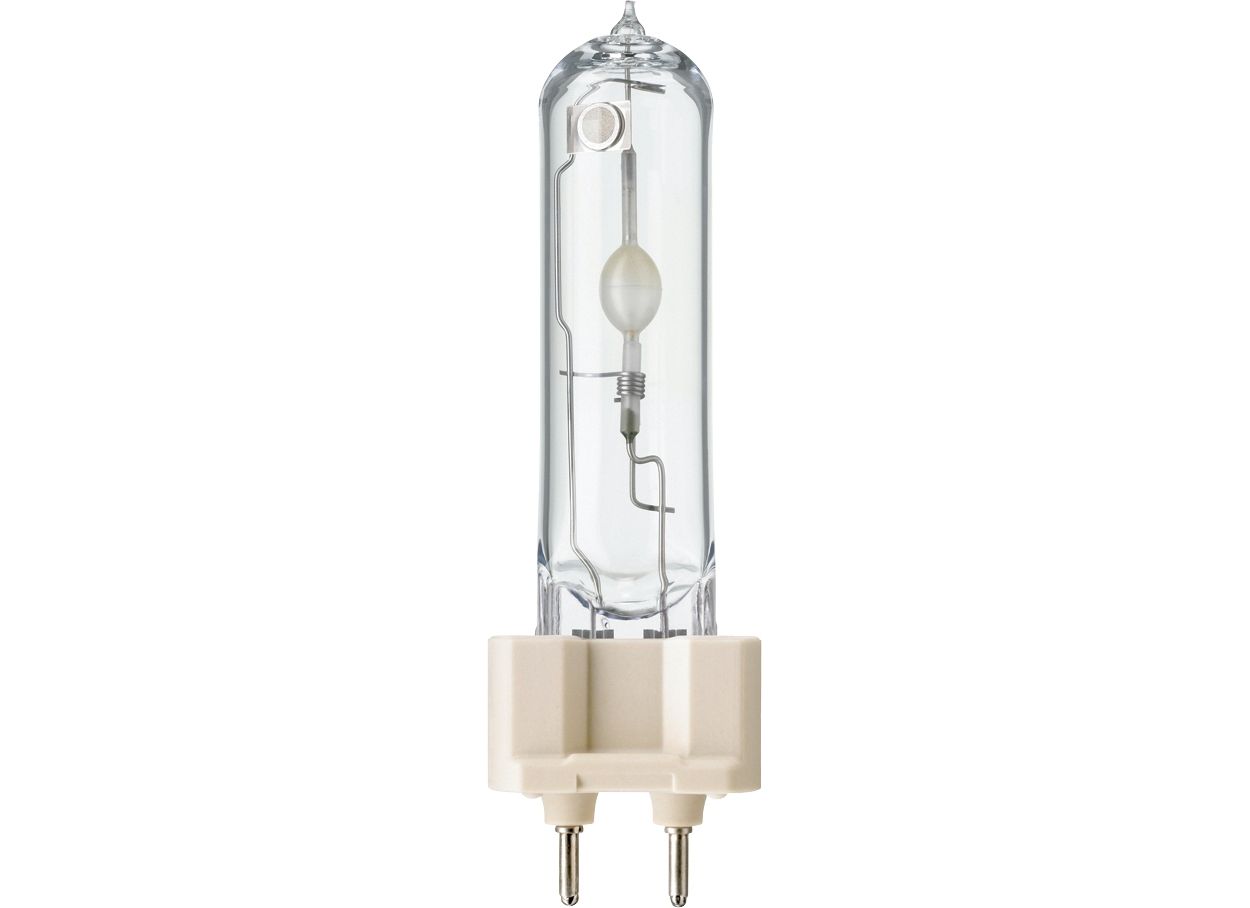

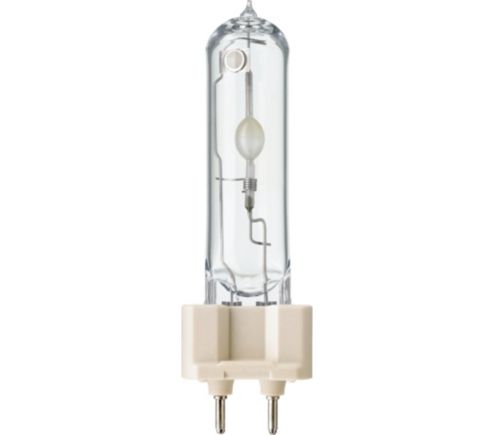

      MASTERC CDM-T Elite 35W/942 G12 1CT
      MASTERC CDM-T Elite 35W/942 G12 1CT
      MASTERColour CDM-T Elite

      MASTERC CDM-T Elite 35W/942 G12 1CT

      Downloads

      Spec Sheet
      Size:426.0 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Power Consumption
    39.1 W
    Voltage (Nom)
    90 V
    Voltage (Nom)
    90 V
    Approval and Application
    Mercury (Hg) Content (Nom)
    4.9 mg
    Energy Consumption kWh/1000 h
    43 kWh
    Product Data
    Order product name
    MASTERC CDM-T Elite 35W/942 G12 1CT
    Numerator - Quantity Per Pack
    1
    Full product code
    871869648453100
    Full product name
    MASTERC CDM-T Elite 35W/942 G12 1CT
    Order code
    928193605129
    Numerator - Packs per outer box
    12
    Material number (12NC)
    928193605129
    EAN/UPC - Case
    8718696484548
    Controls and Dimming
    Dimmable
    No
    General Information
    Cap-Base
    G12  [G12]
    Operating Position
    UNIVERSAL  [Any or Universal (U)]
    Mechanical and Housing
    Bulb Finish
    Clear
    Bulb Shape
    T19  [T 19mm]
    Light Technical
    Chromaticity Coordinate Y (Nom)
    0.364
    Correlated Color Temperature (Nom)
    4200 K
    Color Designation
    Cool White (CW)
    Luminous Efficacy (rated) (Nom)
    98 lm/W
    Chromaticity Coordinate X (Nom)
    0.366
    Color rendering index (CRI)
    90
    Color Code
    942  [CCT of 4200K]
    Installation Diagrams
     G12 T 19mm Clear CCT of 4200K
    G12 T 19mm Clear CCT of 4200K
    G12
    G12
    any
    any
    Performance Diagrams
    Lamp Performance During Run-up - MASTERC CDM-T Elite 35W/942 G12 1CT
    Lamp Performance During Run-up - MASTERC CDM-T Elite 35W/942 G12 1CT
    Lumen Maintenance Diagram - MASTERC CDM-T Elite 35W/942 G12 1CT
    Lumen Maintenance Diagram - MASTERC CDM-T Elite 35W/942 G12 1CT
    Life Expectancy Diagram - MASTERC CDM-T Elite 35W/942 G12 1CT
    Life Expectancy Diagram - MASTERC CDM-T Elite 35W/942 G12 1CT
    Photometrics
    Spectral Power Distribution Colour - MASTERC CDM-T Elite 35W/942 G12 1CT
    Spectral Power Distribution Colour - MASTERC CDM-T Elite 35W/942 G12 1CT
    Light Distribution Diagram - MASTERC CDM-T Elite 35W/942 G12 1CT
    Light Distribution Diagram - MASTERC CDM-T Elite 35W/942 G12 1CT
