    • Perfect sparkle, unrivalled efficiency

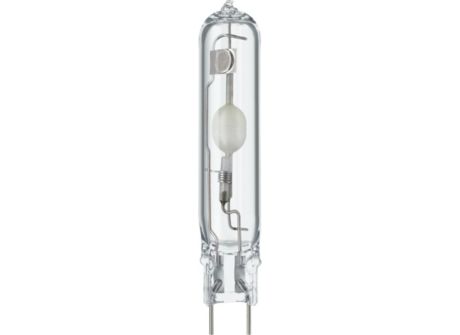

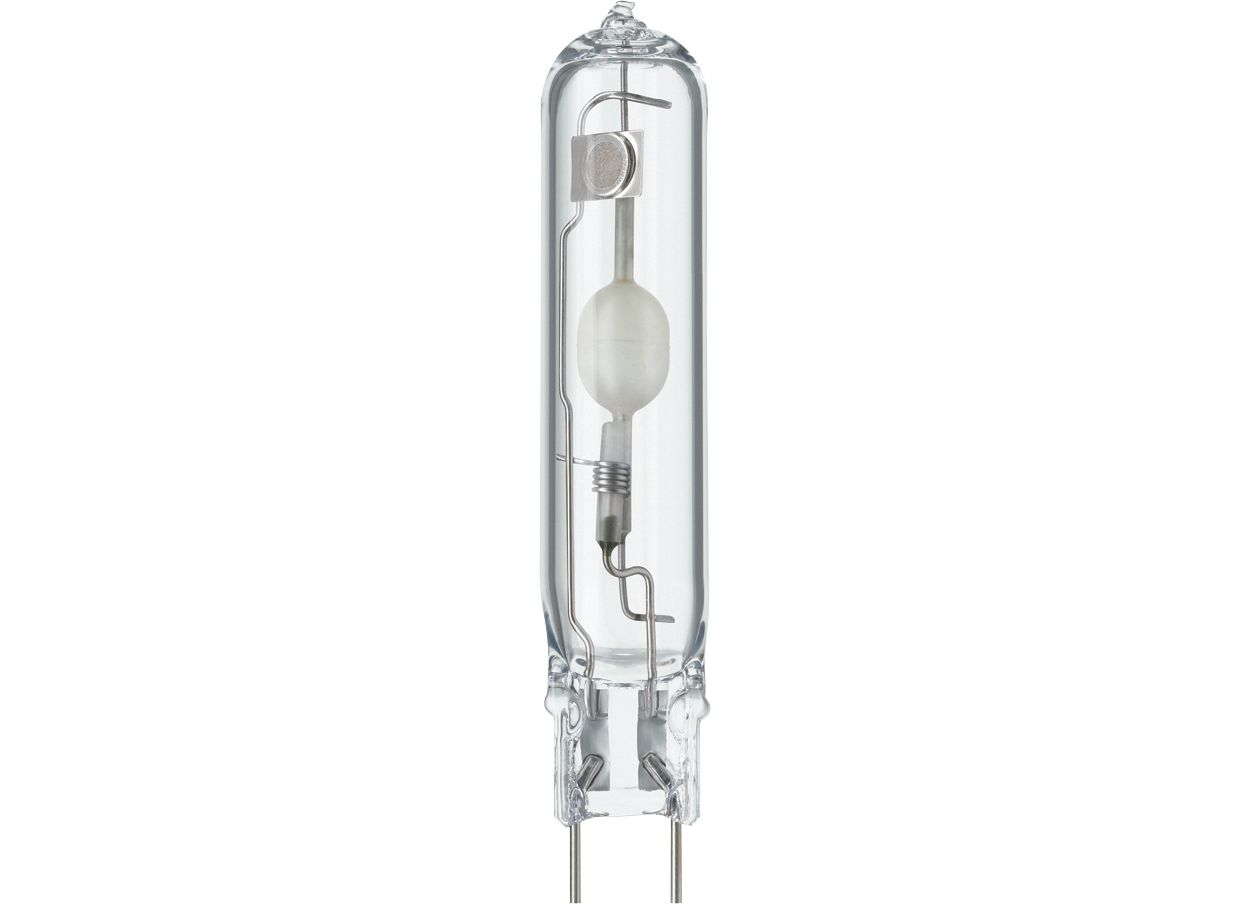

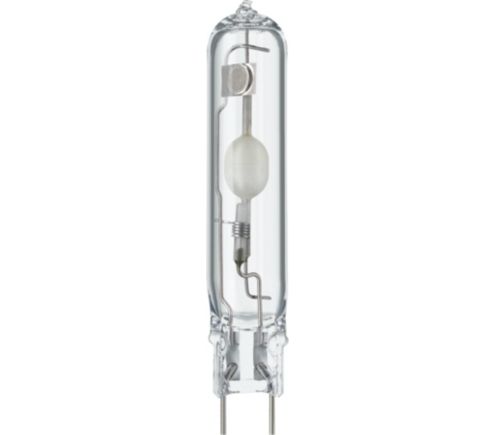

      MASTERC CDM-TC Elite 50W/930 G8.5 1CT/12
      MASTERC CDM-TC Elite 50W/930 G8.5 1CT/12
      MASTERColour CDM-TC Elite

      MASTERC CDM-TC Elite 50W/930 G8.5 1CT/12

      Downloads

      Spec Sheet
      Size:397.6 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Power Consumption
    50.2 W
    Voltage (Nom)
    90 V
    Voltage (Nom)
    90 V
    Approval and Application
    EPREL Registration Number
    473270
    Mercury (Hg) Content (Max)
    6.6 mg
    Mercury (Hg) Content (Nom)
    6.6 mg
    Energy Consumption kWh/1000 h
    51 kWh
    Energy Efficiency Class
    F
    Product Data
    Order product name
    MASTERC CDM-TC Elite 50W/930 G8.5 1CT/12
    Numerator - Quantity Per Pack
    1
    Full product code
    872790093062700
    Full product name
    MASTERC CDM-TC Elite 50W/930 G8.5 1CT/12
    Order code
    928191805131
    Numerator - Packs per outer box
    12
    Material number (12NC)
    928191805131
    EAN/UPC - Case
    8727900930634
    Controls and Dimming
    Dimmable
    No
    General Information
    Cap-Base
    G8.5  [G8.5]
    Flux measurement reference
    Sphere
    Operating Position
    UNIVERSAL  [Any or Universal (U)]
    Mechanical and Housing
    Bulb Finish
    Clear
    Bulb Shape
    T14  [T 14 mm]
    Light Technical
    Chromaticity Coordinate Y (Nom)
    0.398
    Correlated Color Temperature (Nom)
    3000 K
    Color Designation
    Warm White (WW)
    Luminous Efficacy (rated) (Nom)
    108 lm/W
    Chromaticity Coordinate X (Nom)
    0.434
    Luminous Flux
    5,400 lumen
    Color rendering index (CRI)
    91
    Color Code
    930  [CCT of 3000K]
    Installation Diagrams
     G8.5 T 14 mm Clear CCT of 3000K
    G8.5 T 14 mm Clear CCT of 3000K
    G8.5
    G8.5
    any
    any
    Performance Diagrams
    Lamp Performance During Run-up - MASTERC CDM-TC Elite 50W/930 G8.5 1CT/12
    Lamp Performance During Run-up - MASTERC CDM-TC Elite 50W/930 G8.5 1CT/12
    Lumen Maintenance Diagram - MASTERC CDM-TC Elite 50W/930 G8.5 1CT/12
    Lumen Maintenance Diagram - MASTERC CDM-TC Elite 50W/930 G8.5 1CT/12
    Service Lifetime - MASTERC CDM-TC Elite 50W/930 G8.5 1CT/12
    Service Lifetime - MASTERC CDM-TC Elite 50W/930 G8.5 1CT/12
    Life Expectancy Diagram - MASTERC CDM-TC Elite 50W/930 G8.5 1CT/12
    Life Expectancy Diagram - MASTERC CDM-TC Elite 50W/930 G8.5 1CT/12
    Photometrics
    Spectral Power Distribution Colour - MASTERC CDM-TC Elite 50W/930 G8.5 1CT/12
    Spectral Power Distribution Colour - MASTERC CDM-TC Elite 50W/930 G8.5 1CT/12
