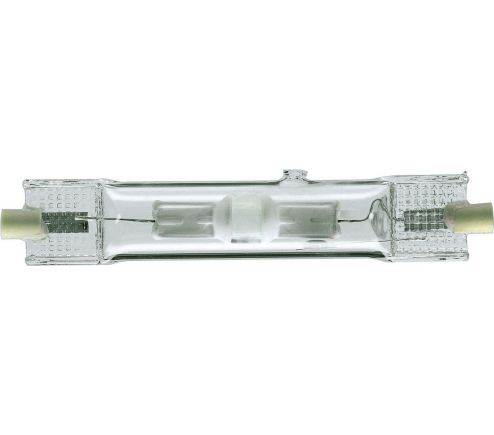

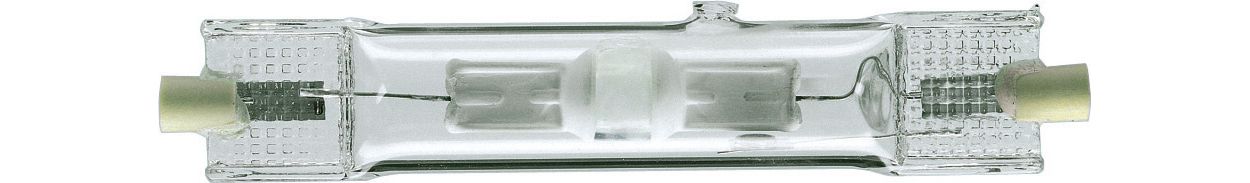

MHN-TD 70W/842 RX7s 1CT/12

Specifications Show all

Operating and Electrical

Voltage (Nom)	90 V
Power Consumption	77.0 W
Voltage (Nom)	90 V

Approval and Application

EPREL Registration Number	473,315
Mercury (Hg) Content (Max)	11 mg
Mercury (Hg) Content (Nom)	11 mg
Energy Consumption kWh/1000 h	77 kWh
Energy Efficiency Class	G

Product Data

Order product name	MHN-TD 70W/842 RX7s 1CT/12
Numerator - Quantity Per Pack	1
Full product code	871829121532500
Full product name	MHN-TD 70W/842 RX7s 1CT/12
Order code	928070205190
Numerator - Packs per outer box	12
Material number (12NC)	928070205190
EAN/UPC - Case	8718291215332

Controls and Dimming

Dimmable

No

General Information

Cap-Base	RX7S  [RX7s]
Flux measurement reference	Sphere
Operating Position	P45  [Parallel +/-45D or Horizontal(HOR)]

Mechanical and Housing

Bulb Finish	Clear
Bulb Shape	TD

Light Technical

Chromaticity Coordinate Y (Nom)	0.366
Correlated Color Temperature (Nom)	4200 K
Color Designation	Cool White (CW)
Luminous Efficacy (rated) (Nom)	75 lm/W
Chromaticity Coordinate X (Nom)	0.371
Luminous Flux	5,800 lumen
Color rendering index (CRI)	75
Luminous Efficacy (Rated) (Min)	67 lm/W
Color Code	842  [CCT of 4200K]
