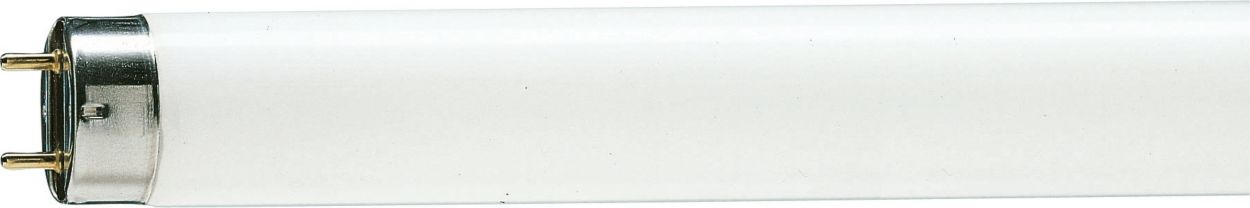

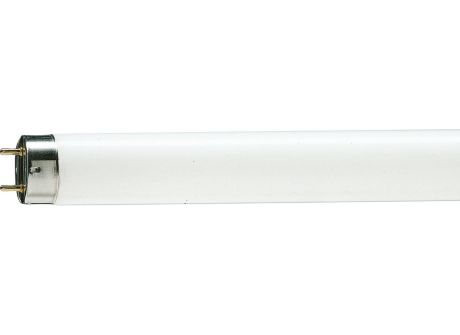

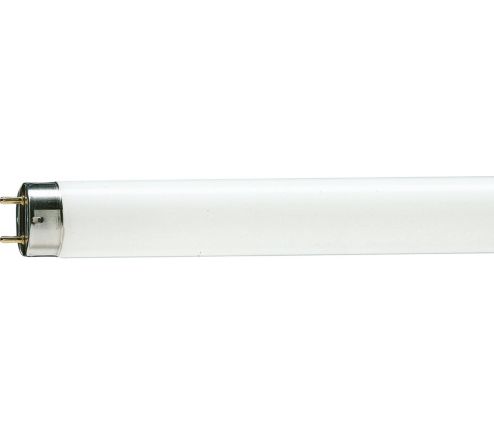

MASTER TL-D 90 De Luxe 58W/965 1SL/10

Specifications Show all

General Information

Cap base	G13  [ Medium Bi-Pin Fluorescent]
Life to 10% failures (nom.)	12000 h
Life to 50% failures (nom.)	15000 h
Life to 50% failures preheat (nom.)	20000 h
LSF 2000 h Rated	99 %
LSF 4000 h Rated	99 %
LSF 6000 h Rated	99 %
LSF 8000 h Rated	99 %
LSF 12000 h Rated	89 %
LSF 16000 h Rated	33 %
LSF 20000 h Rated	2 %
	Sphere

Light Technical

Colour Code	965  [ CCT of 6,500 K]
Luminous flux (nom.)	4550 lm
Colour designation	Cool Daylight
Chromaticity coordinate X (nom.)	0.313
Chromaticity coordinate Y (nom.)	0.337
Correlated Colour Temperature (Nom)	6500 K
Luminous efficacy (rated) (nom.)	76.1 lm/W
Colour rendering index (nom.)	93
LLMF 2000 h Rated	96 %
LLMF 4000 h Rated	95 %
LLMF 6000 h Rated	94 %
LLMF 8000 h Rated	93 %
LLMF 12000 h Rated	92 %
LLMF 16000 h Rated	91 %
LLMF 20000 h Rated	90 %

Operating and Electrical

Power (Rated) (Nom)	59.8 W
Lamp current (nom.)	0.670 A

Temperature

Design temperature (nom.)

25 °C

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Bulb shape

T8  [ 26 mm (T8)]

Approval and Application

Energy Efficiency Class	G
Mercury (Hg) content (nom.)	2 mg
Energy consumption kWh/1,000 hours	60 kWh
	423531

Product Data

Full product code	871150088873025
Order product name	MASTER TL-D 90 De Luxe 58W/965 SLV/10
EAN/UPC – product	8711500888730
Order code	88873025
SAP numerator – quantity per pack	1
Numerator – packs per outer box	10
SAP material	928045096581
SAP net weight (piece)	167.000 g
ILCOS code	FD-58/65/1A-E-G13
