    • UVB Narrowband TL – proven as the most effective in phototherapy

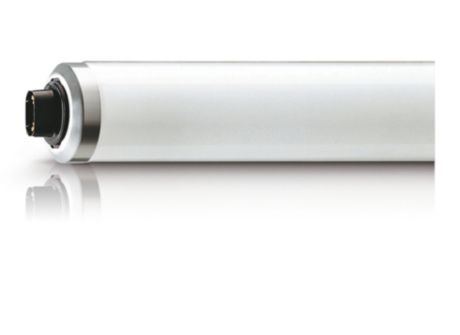

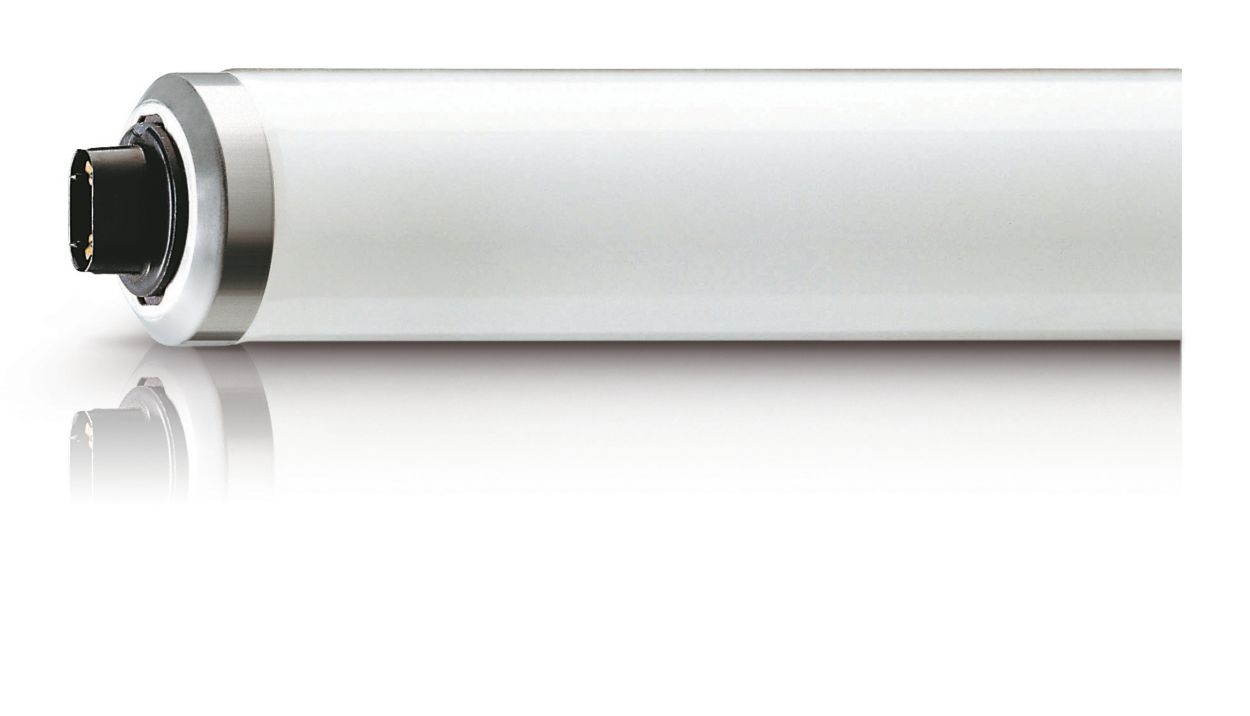

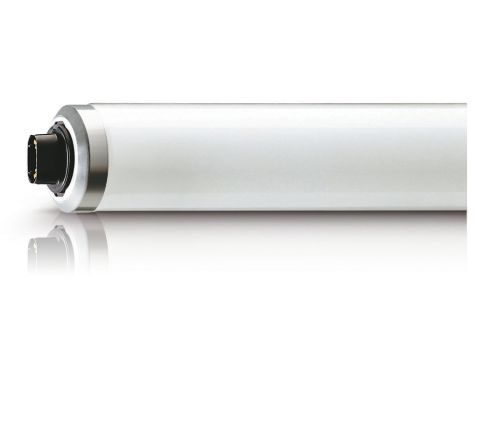

      TL 100W/01 SLV/10
      TL 100W/01 SLV/10
      UV-B Narrowband TL

      TL 100W/01 SLV/10

      Order code: 66233500

      Full product code: 871869666233500

      Downloads

      Spec Sheet
      Size:2.8 MB

      See all downloads

    Specifications Show all

    General information
    Cap base
    R17D  [ R17d (RDC)]
    Main application
    -
    Life to 50% failures (nom.)
    1000 h
    Useful life (nom.)
    1000 h
    Light technical
    Colour Code
    01
    Colour designation
    Ultra Violet B
    Chromaticity coordinate X (nom.)
    216
    Chromaticity coordinate Y (nom.)
    208
    Depreciation at 500 Hours
    10 %
    UV depreciation at 1,000 h
    15 %
    Operating and electrical
    Power (Rated) (Nom)
    100 W
    Lamp current (nom.)
    0.97 A
    Voltage (Nom)
    126 V
    Mechanical and housing
    Cap-base information
    Adaptor
    Bulb shape
    T38  [ T 38mm]
    Approval and application
    Mercury (Hg) content (nom.)
    14.0 mg
    UV
    UV-B radiation 100 hours (IEC)
    16.1 W
    UV-B radiation 5 hours (IEC)
    18.4 W
    Product data
    Full product code
    871869666233500
    Order product name
    TL 100W/01 SLV/10
    EAN/UPC – product
    8718696662335
    Order code
    66233500
    SAP numerator – quantity per pack
    1
    Numerator – packs per outer box
    10
    SAP material
    928034900130
    Net Weight (Piece)
    0.470 kg
    Installation Diagrams
    R17d
    R17d
    Photometrics
    XDPB_XUMTL_01-Spectral power distribution B/W
    XDPB_XUMTL_01-Spectral power distribution B/W
    XDPO_XUMTL_01-Spectral power distribution Colour
    XDPO_XUMTL_01-Spectral power distribution Colour
