| Connection | Connection unit 3-pole
|
| Number of products on MCB of 16 A type B | 12
|
| Inrush time | 760
ms
|
| Power Consumption | 145
W
|
| Line Frequency | 50 or 60
Hz
|
| Input Voltage | 220-240
V
|
| Inrush current | 5.1
A
|
| Cable | Cable 0.3 m with connector 3-pole
|
| Power Factor (Fraction) | 0.95
|
| Input Frequency | 50 or 60
Hz
|
| Numerator - Quantity Per Pack | 1
|
| Full product code | 871951452707200
|

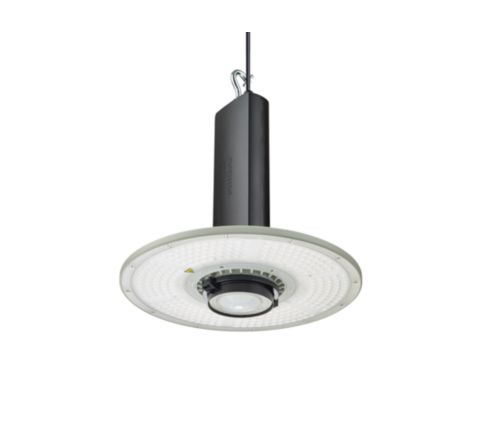

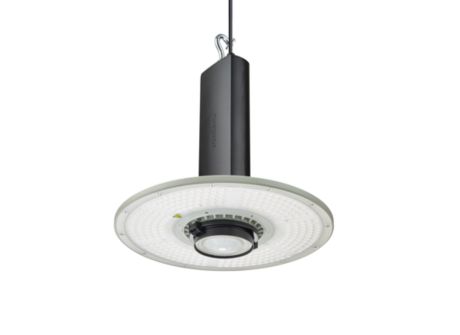

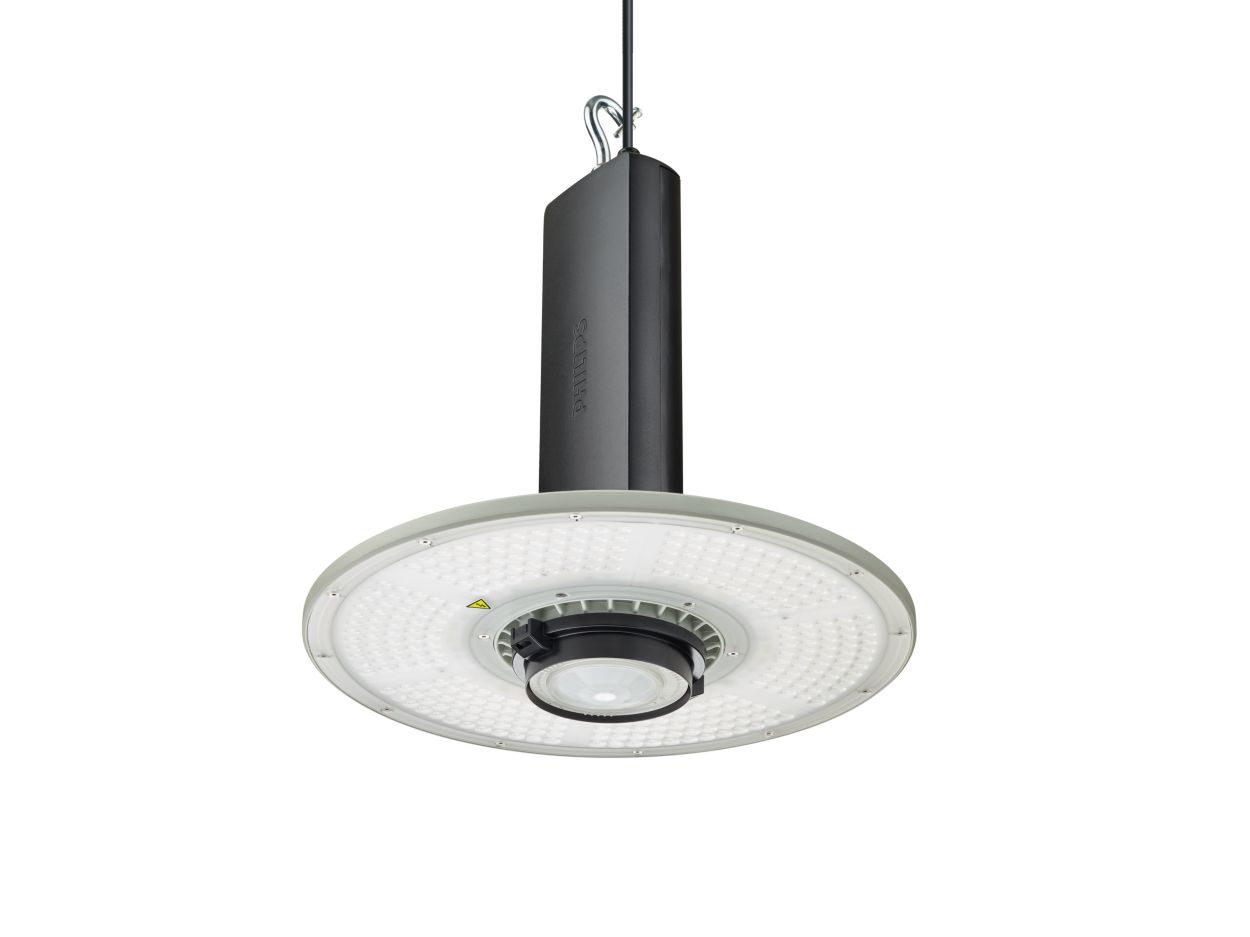

| Full product name | BY121P G4 LED200S/840 SRD WB H4
|
| Order code | 911401507981
|
| Numerator - Packs per outer box | 1
|
| Material number (12NC) | 911401507981
|
| EAN/UPC - Case | 8719514527072
|
| Order product name | BY121P G4 LED200S/840 SRD WB H4
|
| Lumen maintenance at median useful life* 50000 h | L80
|
| Control gear failure rate at median useful life 50000 h | 5
%
|
| Ingress protection code | IP65
[Dust penetration-protected, jet-proof] |
| Protection class IEC | Safety class I
|
| CE mark | Yes
|
| ENEC mark | ENEC mark
|
| EU RoHS compliant | Yes
|
| Flammability mark | For mounting on normally flammable surfaces
|
| Warranty period | 5 years
|
| Sustainability rating | -
|
| Photobiological risk | Photobiological risk group 0 @200mm to EN62778
|
| Mech. impact protection code | IK05
[0.7 J] |
| Glow-wire test | Temperature 650 °C, duration 30 s
|
| Constant light output | No
|
| Driver/power unit/transformer | Power supply unit with DALI and SystemReady interface
|
| Control interface | Wireless
|
| Dimmable | Yes
|
| Optic material | Polycarbonate
|
| Housing Color | Gray
|
| Optical cover/lens material | Polycarbonate
|
| Overall diameter | 450
mm
|
| Housing Material | Aluminum
|
| Fixation material | Aluminum
|
| Optical cover/lens finish | Clear
|
| Reflector material | -
|
| Overall height | 460
mm
|
| Connectivity | Interact Ready
|
| Light source replaceable | No
|
| Driver included | Yes
|
| Number of gear units | 1 unit
|
| Embedded control | Sensor SNH (R) 210
|
| Value ladder | Performance
|
| Lighting Technology | LED
|
| Initial chromaticity | (0.38, 0.38) SDCM <5
|
| Power consumption tolerance | +/-10%
|
| Luminous flux tolerance | +/-10%
|
| Performance ambient temperature Tq | 35 °C
|
| Suitable for random switching | Yes (relates to presence/ movement detection and daylight harvesting)
|
| Ambient temperature range | -30 to +45 °C
|
| Saturated Red (R9) | <50
|
| Optic type | Wide beam
|
| Correlated Color Temperature (Nom) | 4000
K
|
| Luminous Efficacy (rated) (Nom) | 141
lm/W
|
| Unified glare rating CEN | 26
|
| Luminous Flux | 20,500
lumen
|
| Light source color | 840 neutral white
|
| Color rendering index (CRI) | >80
|
| Luminaire light beam spread | 90°
|
