| Number of light sources | 1
[ 1 pc] |
| Lamp family code | LED205S
[ LED module, system flux 20500 lm] |
| Beam angle of light source | -
°
|
| Light source colour | 865 cool daylight
|
| Light source replaceable | No
|
| Number of gear units | 1 unit
|
| Driver/power unit/transformer | PSU
[ Power supply unit] |
| Driver included | Yes
|
| Optic type | WB
[ Wide beam] |
| Optical cover/lens type | PC
[ Polycarbonate bowl/cover] |
| Luminaire light beam spread | 100°
|
| Control interface | -
|
| Connection | CU3
[ Connection unit 3-pole] |
| Cable | Cord 0.5 m with cable connector 3-pole
|
| Protection class IEC | Safety class I (I)
|
| Glow-wire test | 650/5
[ Temperature 650 °C, duration 5 s] |
| Flammability mark | F
[ For mounting on normally flammable surfaces] |
| CE mark | CE mark
|
| ENEC mark | -
|
| Remarks | *-Per Lighting Europe guidance paper “Evaluating performance of LED based luminaires - January 2018”: statistically there is no relevant difference in lumen maintenance between B50 and for example B10. Therefore the median useful life (B50) value also represents the B10 value.
|
| Constant light output | Yes
|
| Number of products on MCB | 8
|
| EU RoHS compliant | Yes
|
| LED engine type | LED
|
| Input voltage | 220 to 240
V
|
| Input frequency | 50 to 60
Hz
|
| Control signal voltage | -
|
| Initial CLO power consumption | 155
W
|
| Average CLO power consumption | 155
W
|
| Inrush current | 53
A
|
| Inrush time | 0.3
ms
|
| Power factor (min.) | 0.9
|
| Dimmable | No
|
| Housing material | Aluminum
|
| Reflector material | -
|
| Optic material | Polycarbonate
|
| Optical cover/lens material | Polycarbonate
|
| Fixation material | -
|
| Optical cover/lens finish | Clear
|
| Overall length | 454
mm
|
| Overall width | 452
mm
|
| Overall height | 152
mm
|
| Overall diameter | 452
mm
|
| Diameter | -
|
| Colour | Gray
|
| Ingress protection code | IP65
[ Dust penetration-protected, jet-proof] |
| Mech. impact protection code | IK07
[ 2 J reinforced] |
| Initial luminous flux | 20500
lm
|
| Luminous flux tolerance | +/-10%
|
| Initial LED luminaire efficacy | 130
lm/W
|
| Init. Corr. Colour Temperature | 6500
K
|
| Init. colour rendering index | ≥80
|
| Initial chromaticity | (0.38, 0.38) SDCM <5
|
| Initial input power | 155
W
|
| Power consumption tolerance | +/-10%
|
| Control gear failure rate at median useful life 50,000 h | 5
%
|
| Lumen maintenance at median useful life* 50,000 h | L70
|
| Ambient temperature range | -30 to +45 °C
|
| Performance ambient temperature Tq | 25 °C
|
| Suitable for random switching | Yes
|
| Full product code | 871016331713700
|

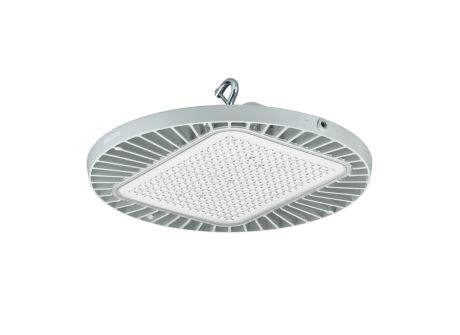

| Order product name | BY121P G3 LED205S/865 PSU WB GR
|
| EAN/UPC – product | 8710163317137
|
| Order code | 31713700
|
| Numerator – quantity per pack | 1
|
| Numerator – packs per outer box | 1
|
| Material no. (12NC) | 911401571341
|
| Net weight (piece) | 4.800
kg
|
