    • GentleSpace gen3: adaptable high-bay lighting offering high-efficiency and connectivity options to lighting systems and software applications.

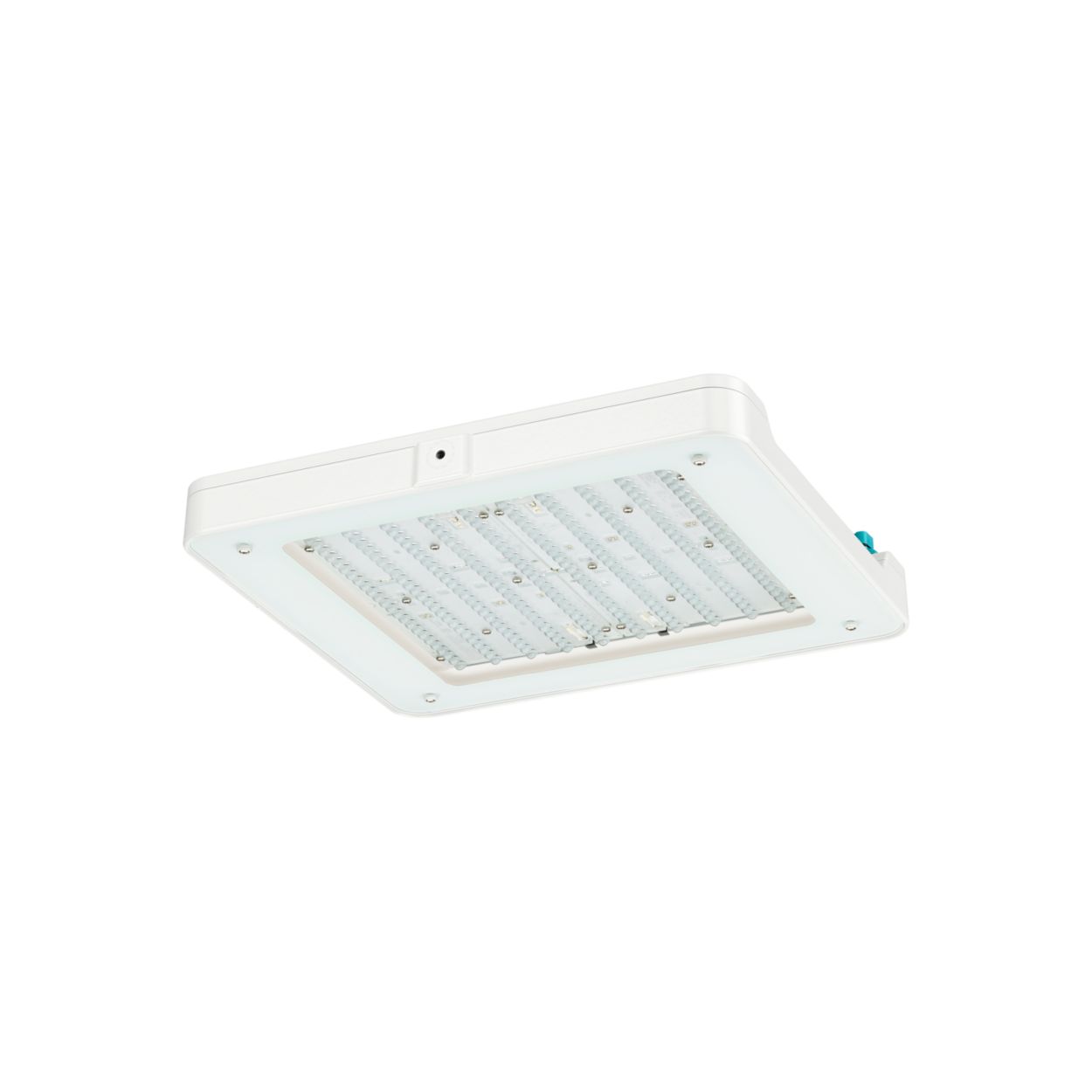

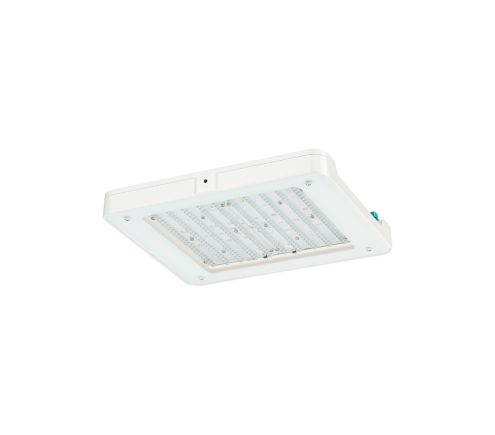

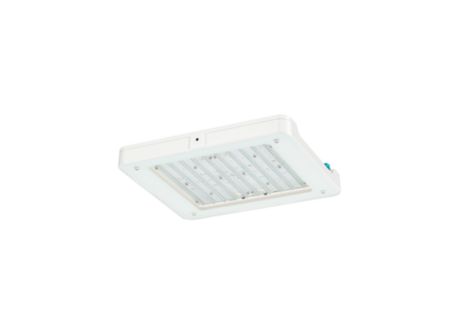

      BY480P LED130S/840 PSD WB GC WH
      LED
      BY480P LED130S/840 PSD WB GC WH

      BY480P LED130S/840 PSD WB GC WH

      Order code: 40760500

      Full Product Code: 871869940760500

      Downloads

      Leaflet
      Size:389.6 kB

      See all downloads

    Specifications Show all

    General Information
    Beam angle of light source
    114 °
    Light source colour
    840 neutral white
    Light source replaceable
    Yes
    Number of gear units
    1 unit
    Driver/power unit/transformer
    PSD  [ Power supply unit with DALI interface]
    Driver included
    Yes
    Optic type
    WB  [ Wide beam]
    Luminaire light beam spread
    42° x 44°
    Control interface
    DALI
    Connection
    W5  [ Plug-in connector 5-pole Wieland/Adels compatible]
    Cable
    Cord with plug Wieland/Adels compatible 5-pole
    Protection class IEC
    Safety class I (I)
    Glow-wire test
    850/5  [ Temperature 850 °C, duration 5 s]
    Flammability mark
    D  [ For mounting on easily flammable surfaces]
    CE mark
    CE mark
    ENEC mark
    ENEC mark
    Warranty period
    5 years
    Constant light output
    No
    Number of products on MCB
    12
    RoHS mark
    RoHS mark
    Product Family Code
    BY480P  [ GentleSpace Gen3]
    Unified glare rating CEN
    23
    Operating and Electrical
    Input voltage
    220-240 V
    Input frequency
    50 to 60 Hz
    Inrush current
    4.8 A
    Inrush time
    2.3 ms
    Power factor (min.)
    0.9
    Controls and Dimming
    Dimmable
    Yes
    Mechanical and Housing
    Housing material
    Aluminum
    Reflector material
    -
    Optic material
    Acrylate
    Optical cover/lens material
    Glass
    Fixation material
    Steel
    Optical cover/lens finish
    Clear
    Overall length
    460 mm
    Overall width
    410 mm
    Overall height
    80 mm
    Colour
    White
    Approval and Application
    Ingress protection code
    IP65  [ Dust penetration-protected, jet-proof]
    Mech. impact protection code
    IK07  [ 2 J reinforced]
    Initial Performance (IEC Compliant)
    Initial luminous flux
    13000 lm
    Luminous flux tolerance
    +/-10%
    Initial LED luminaire efficacy
    153 lm/W
    Init. Corr. colour temperature
    4000 K
    Init. colour rendering index
    ≥80
    Initial chromaticity
    (0.38, 0.38) SDCM <3
    Initial input power
    85 W
    Power consumption tolerance
    +/-10%
    Over Time Performance (IEC Compliant)
    Control gear failure rate at median useful life 50000 h
    5 %
    Median useful life L70B50
    100000 h
    Median useful life L80B50
    100000 h
    Median useful life L90B50
    50000 h
    Control gear failure rate at median useful life 100000 h
    10 %
    Lumen maintenance at median useful life* 50000 h
    L90
    Lumen maintenance at median useful life* 100000 h
    L80
    Application Conditions
    Ambient temperature range
    -30 to +45 °C
    Performance ambient temperature Tq
    45 °C
    Maximum dimming level
    10%
    Suitable for random switching
    No
    Product Data
    Full product code
    871869940760500
    Order product name
    BY480P LED130S/840 PSD WB GC WH
    EAN/UPC – product
    8718699407605
    Order code
    40760500
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    1
    Material no. (12NC)
    910500465566
    Net weight (piece)
    7.900 kg

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     New Highbay
    New Highbay
    Photometrics
    IFGU1_BY480PPSD1xLED130S840WB
    IFGU1_BY480PPSD1xLED130S840WB
    Downloads
    Leaflets
    • Leaflet Localized commercial leaflet PDF 389.6 kB
    Green Data
    Visuals
    Brochures
    Software Plugins
    • IES IFMT1_BY480PPSD1xLED130S840WB IES 8.5 kB
    • ULD IFDM1_BY480PPSD1xLED130S840WB ULD 29.5 kB
    • Relux IFDM2_BY480PPSD1xLED130S840WB ROLF 7.6 kB
    • LDT IFMT2_BY480PPSD1xLED130S840WB LDT 6.6 kB
