| Number of products on MCB of 16 A type B | 8
|
| Connection | External connector
|
| Initial CLO power consumption | -
W
|
| Power Consumption | 232
W
|
| Average CLO power consumption | -
W
|
| Line Frequency | 50 to 60
Hz
|
| Input Voltage | 220-240
V
|
| Inrush current | 15.3
A
|
| Cable | Cord with plug Wieland/Adels compatible 5-pole
|
| Input Frequency | 50 to 60
Hz
|
| Inrush time | 6.1
ms
|
| Power Factor (Fraction) | 0.9
|
| Full product code | 871869941466500
|

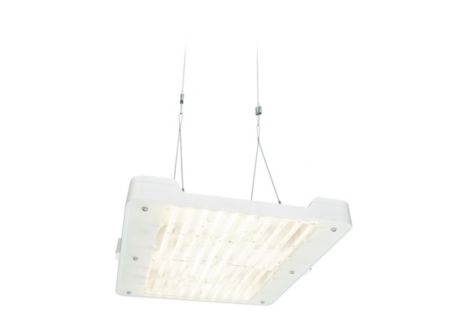

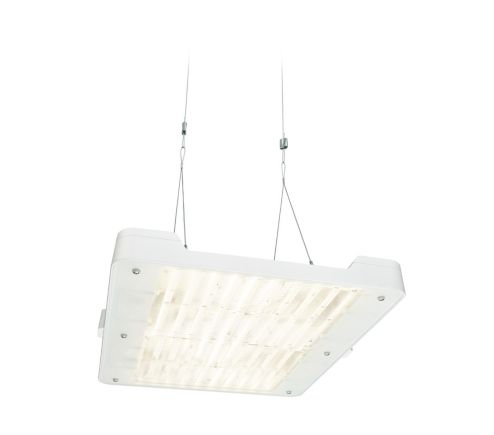

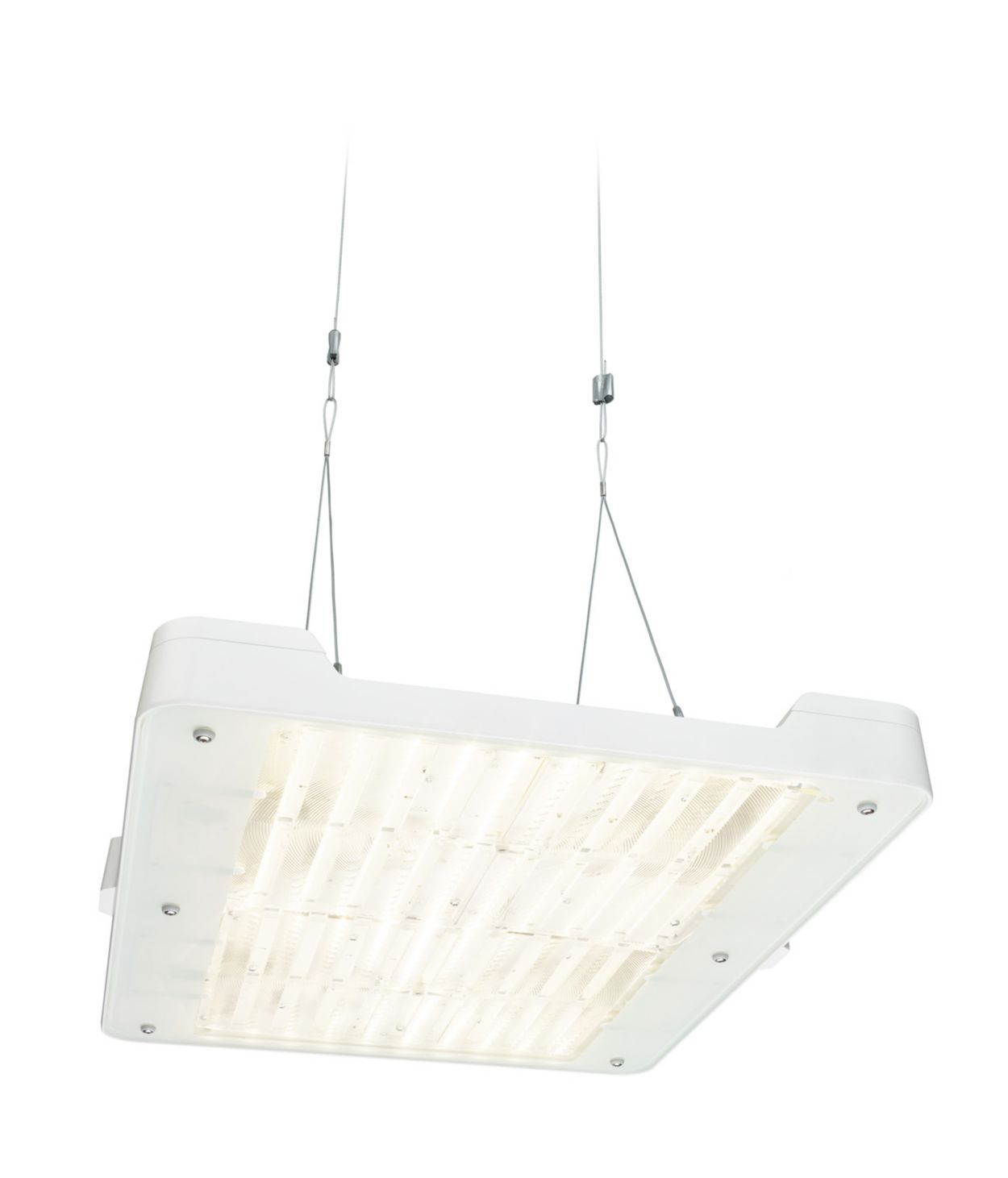

| Full product name | BY481P LED350S/840 PSD NBA GC SI
|
| Order code | 910500465804
|
| EAN/UPC - Case | 8718699414665
|
| Material number (12NC) | 910500465804
|
| Order product name | BY481P LED350S/840 PSD NBA GC SI
|
| Numerator - Quantity Per Pack | 1
|
| Numerator - Packs per outer box | 1
|
| Ingress protection code | IP65
[Dust penetration-protected, jet-proof] |
| Protection class IEC | Safety class I
|
| CE mark | Yes
|
| EU RoHS compliant | Yes
|
| Photobiological risk specification | 8.4
m
|
| Warranty period | 5 years
|
| Flammability mark | -
|
| Sustainability rating | -
|
| Photobiological risk | Photobiological risk group 2 @200mm to EN62778
|
| Mech. impact protection code | IK07
[2 J reinforced] |
| Glow-wire test | Temperature 650 °C, duration 30 s
|
| ENEC mark | ENEC mark
|
| Lumen maintenance at median useful life* 50000 h | L90
|
| Control gear failure rate at median useful life 50000 h | 5
%
|
| Control gear failure rate at median useful life 100000 h | 10
%
|
| Lumen maintenance at median useful life* 100000 h | L80
|
| Constant light output | No
|
| Driver/power unit/transformer | Power supply unit with DALI interface
|
| Control interface | DALI
|
| Dimmable | Yes
|
| Light source replaceable | Yes
|
| Lamp family code | -
|
| Driver included | Yes
|
| Product family code | BY481P
[Gentlespace gen3 Large] |
| Service tag | Yes
|
| Number of gear units | 1 unit
|
| Cap-Base | -
[-] |
| Value ladder | Specification
|
| Lighting Technology | LED
|
| Overall width | 490
mm
|
| Optic material | Polycarbonate
|
| Housing Color | Silver RAL 9006
|
| Optical cover/lens material | Glass
|
| Fixation material | Steel
|
| Housing Material | Aluminum
|
| Optical cover/lens finish | Clear
|
| Overall length | 600
mm
|
| Dimensions (Height x Width x Depth) | 110 x 490 x 600 mm
|
| Reflector material | -
|
| Overall height | 110
mm
|
| Maximum dim level | 10%
|
| Suitable for random switching | No
|
| Performance ambient temperature Tq | 45 °C
|
| Initial chromaticity | (0.38, 0.38) SDCM <3
|
| Power consumption tolerance | +/-10%
|
| Luminous flux tolerance | +/-10%
|
| Ambient temperature range | -30 to +45 °C
|
| Optic type | Narrow beam adjustable
|
| Beam angle of light source | 114
degree(s)
|
| Correlated Color Temperature (Nom) | 4000
K
|
| Luminous Efficacy (rated) (Nom) | 150
lm/W
|
| Optical cover/lens type | Polymethyl methacrylate bowl/cover
|
| Unified glare rating CEN | Not applicable
|
| Luminous Flux | 35,000
lumen
|
| Luminaire light beam spread | 25° x 30°
|
| Light source color | 840 neutral white
|
| Color rendering index (CRI) | >80
|
