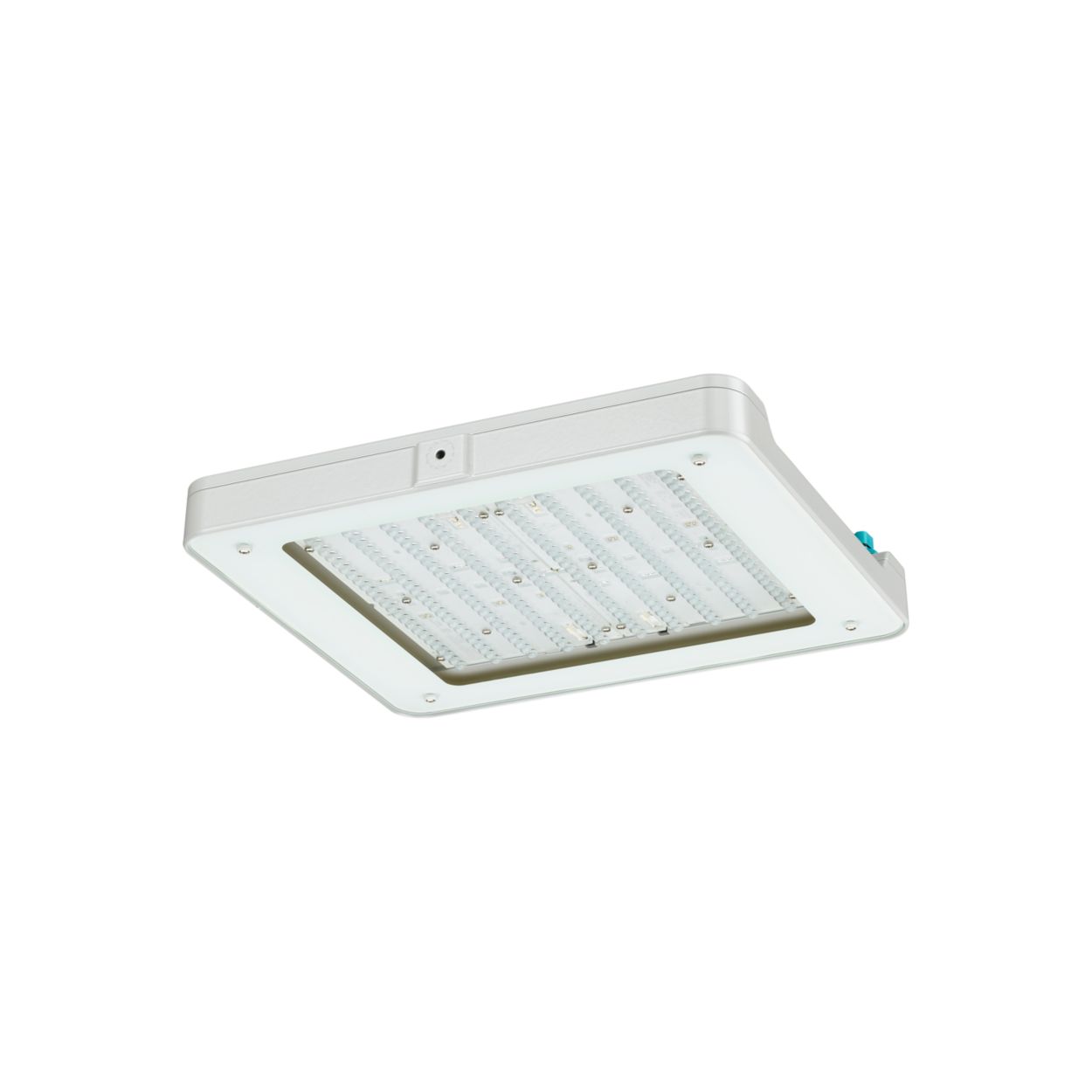

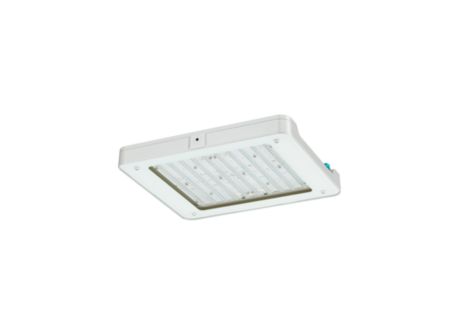

BY480P LED130S/840 PSD WB GC SI XT

Specifications Show all

Operating and Electrical

Number of products on MCB of 16 A type B	12
Connection	External connector
Inrush time	76 ms
Initial CLO power consumption	- W
Power Consumption	84 W
Average CLO power consumption	- W
Line Frequency	50 to 60 Hz
Input Voltage	220-240 V
Inrush current	5.1 A
Cable	Cord with plug Wieland/Adels compatible 5-pole
Input Frequency	50 to 60 Hz
Power Factor (Fraction)	0.9

Product Data

Numerator - Quantity Per Pack	1
Full product code	871951401092500
Order code	910505100775
EAN/UPC - Case	8719514010925
Material number (12NC)	910505100775
Full product name	BY480P LED130S/840 PSD WB GC SI XT
Order product name	BY480P LED130S/840 PSD WB GC SI XT
Numerator - Packs per outer box	1

Approval and Application

Ingress protection code	IP65  [Dust penetration-protected, jet-proof]
Protection class IEC	Safety class I
CE mark	Yes
EU RoHS compliant	Yes
Warranty period	5 years
Flammability mark	-
Sustainability rating	-
Photobiological risk	Photobiological risk group 1 @200mm to EN62778
Mech. impact protection code	IK07  [2 J reinforced]
Glow-wire test	Temperature 650 °C, duration 30 s
ENEC mark	ENEC mark

Over Time Performance (IEC Compliant)

Lumen maintenance at median useful life* 50000 h	L80
Control gear failure rate at median useful life 50000 h	5 %
Control gear failure rate at median useful life 100000 h	10 %

Controls and Dimming

Constant light output	No
Driver/power unit/transformer	Power supply unit with DALI interface
Control interface	DALI
Dimmable	Yes

General Information

Light source replaceable	Yes
Driver included	Yes
Service tag	Yes
Number of gear units	1 unit
Product family code	BY480P  [Gentlespace gen3 Small]
Value ladder	Specification
Lighting Technology	LED

Mechanical and Housing

Overall width	410 mm
Optic material	Polycarbonate
Housing Color	Silver RAL 9006
Optical cover/lens material	Glass
Housing Material	Aluminum
Fixation material	Steel
Optical cover/lens finish	Clear
Overall length	460 mm
Dimensions (Height x Width x Depth)	86 x 410 x 460 mm
Reflector material	-
Overall height	86 mm

Application Conditions

Maximum dim level	10%
Suitable for random switching	No
Performance ambient temperature Tq	45 °C

Initial Performance (IEC Compliant)

Initial chromaticity	(0.38, 0.38) SDCM <3
Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-10%

Temperature

Ambient temperature range

-40 to +70 °C

Light Technical

Beam angle of light source	114 degree(s)
Optic type	Wide beam
Correlated Color Temperature (Nom)	4000 K
Luminous Efficacy (rated) (Nom)	154 lm/W
Luminous Flux	13,000 lumen
Unified glare rating CEN	Not applicable
Light source color	840 neutral white
Color rendering index (CRI)	>80
Luminaire light beam spread	42° x 44°
