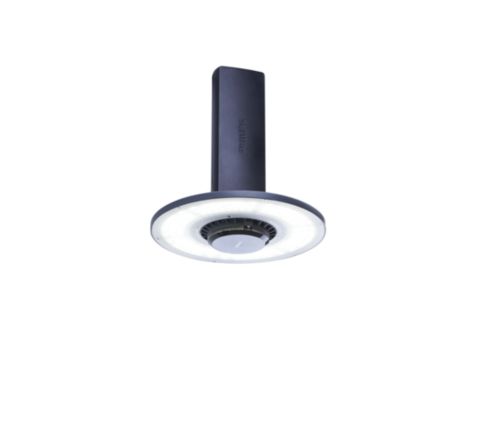

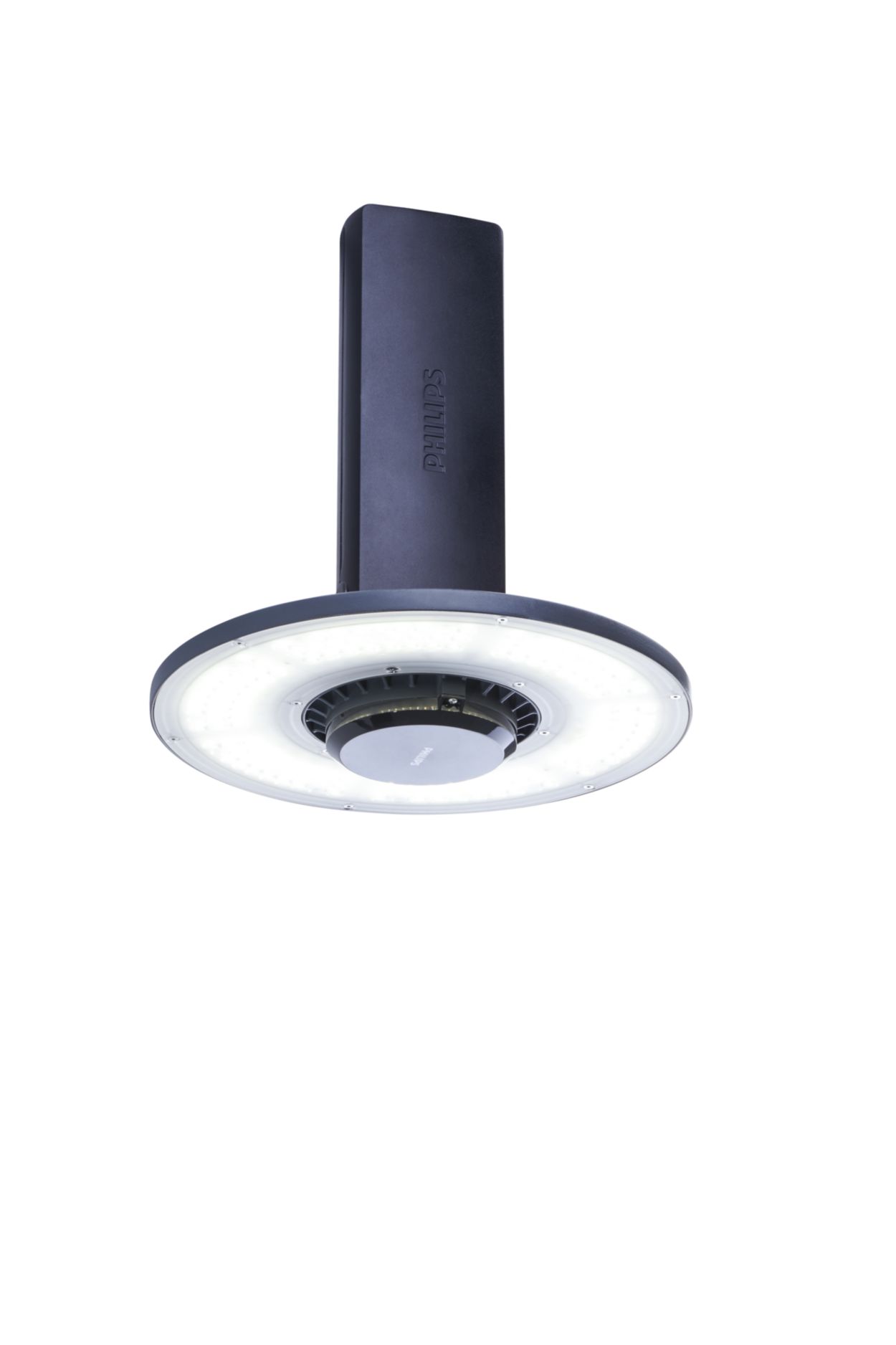

BY718P LED100/NW PSD WB

Specifications Show all

Operating and Electrical

Number of products on MCB of 16 A type B	8
Input Frequency	50 or 60 Hz
Inrush time	0.3 ms
Power Consumption	73 W
Line Frequency	50 or 60 Hz
Input Voltage	220 to 240 V
Inrush current	53 A
Power Factor (Fraction)	0.95
Cable	Cable 0.3 m without plug

Over Time Performance (IEC Compliant)

Driver failure rate at 5000 h	0.0021 %
Median useful life L70B50	75,000 hour(s)

Product Data

Order product name	BY718P LED100/NW PSD WB
Numerator - Quantity Per Pack	1
Full product code	911401572151
Full product name	BY718P LED100/NW PSD WB
Order code	911401572151
Numerator - Packs per outer box	1
Material number (12NC)	911401572151

Approval and Application

Ingress protection code	IP65  [Dust penetration-protected, jet-proof]
Glow-wire test	Temperature 650 °C, duration 30 s
Protection class IEC	Safety class I
CE mark	CE mark
ENEC mark	-
EU RoHS compliant	Yes
Flammability mark	For mounting on normally flammable surfaces
Warranty period	3 years
Mech. impact protection code	IK08  [5 J vandal-protected]

Controls and Dimming

Constant light output	No
Driver/power unit/transformer	Power supply unit with DALI interface
Control interface	DALI
Dimmable	Yes

General Information

Light source replaceable	No
Light source engine type	LED
Driver included	Yes
Service tag	Yes
Number of gear units	1 unit

Mechanical and Housing

Optic material	Polycarbonate
Housing Color	Black and gray
Optical cover/lens material	Polycarbonate
Overall diameter	385 mm
Housing Material	Aluminum
Overall height	445 mm
Optical cover/lens finish	Frosted
Reflector material	-

Application Conditions

Maximum dim level	1%
Suitable for random switching	No

Initial Performance (IEC Compliant)

Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-10%

Temperature

Ambient temperature range

-30 to +50 °C

Light Technical

Optic type	Symmetrical
Correlated Color Temperature (Nom)	4000 K
Luminous Efficacy (rated) (Nom)	145 lm/W
Optical cover/lens type	Polycarbonate bowl/cover
Luminous Flux	11,000 lumen
Light source color	840 neutral white
Color rendering index (CRI)	>80
Luminaire light beam spread	90°
