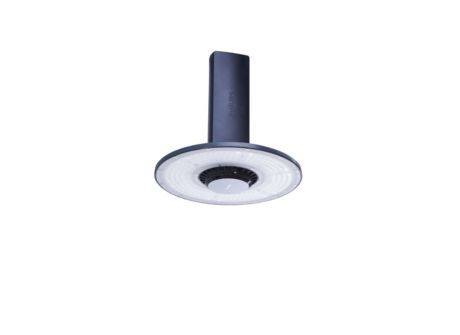

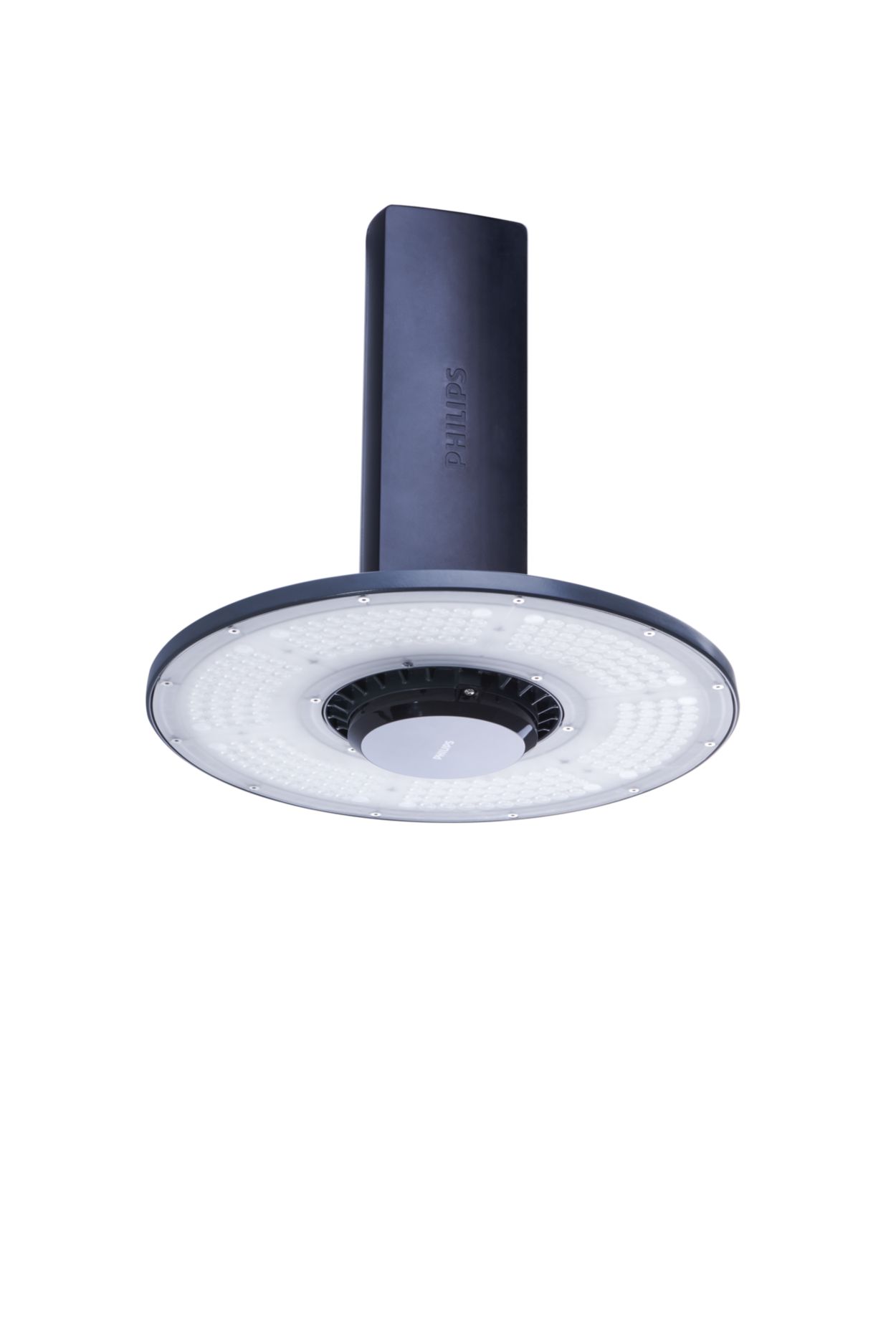

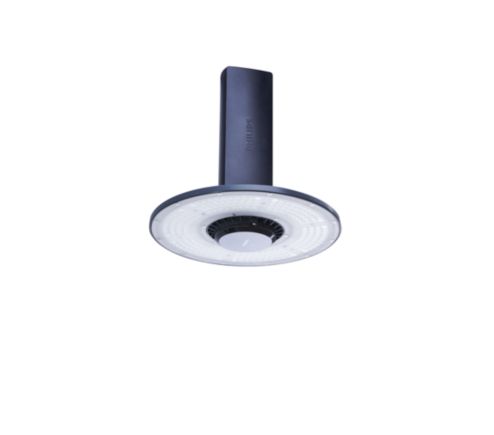

BY718P LED200/NW PSD NB

Specifications Show all

Operating and Electrical

Number of products on MCB of 16 A type B	8
Input Frequency	50 or 60 Hz
Inrush time	0.3 ms
Power Consumption	145 W
Line Frequency	50 or 60 Hz
Input Voltage	220 to 240 V
Inrush current	53 A
Cable	Cable 0.3 m without plug
Power Factor (Fraction)	0.95

Over Time Performance (IEC Compliant)

Driver failure rate at 5000 h	0.0021 %
Median useful life L70B50	75,000 hour(s)

Product Data

Order product name	BY718P LED200/NW PSD NB
Numerator - Quantity Per Pack	1
Full product code	911401572451
Order code	911401572451
Numerator - Packs per outer box	1
Material number (12NC)	911401572451
Full product name	BY718P LED200/NW PSD NB

Approval and Application

Ingress protection code	IP65  [Dust penetration-protected, jet-proof]
Glow-wire test	Temperature 650 °C, duration 30 s
Protection class IEC	Safety class I
ENEC mark	-
CE mark	CE mark
EU RoHS compliant	Yes
Flammability mark	For mounting on normally flammable surfaces
Warranty period	3 years
Mech. impact protection code	IK08  [5 J vandal-protected]

Controls and Dimming

Constant light output	No
Driver/power unit/transformer	Power supply unit with DALI interface
Control interface	DALI
Dimmable	Yes

General Information

Light source replaceable	No
Light source engine type	LED
Driver included	Yes
Service tag	Yes
Number of gear units	1 unit

Mechanical and Housing

Optic material	Polycarbonate
Housing Color	Black and gray
Optical cover/lens material	Polycarbonate
Overall diameter	450 mm
Overall height	445 mm
Housing Material	Aluminum
Optical cover/lens finish	Frosted
Reflector material	-

Application Conditions

Maximum dim level	1%
Suitable for random switching	No

Initial Performance (IEC Compliant)

Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-10%

Temperature

Ambient temperature range

-30 to +50 °C

Light Technical

Optic type	Symmetrical
Correlated Color Temperature (Nom)	4000 K
Luminous Efficacy (rated) (Nom)	147 lm/W
Optical cover/lens type	Polycarbonate bowl/cover
Luminous Flux	21,500 lumen
Luminaire light beam spread	54°
Color rendering index (CRI)	>80
Light source color	840 neutral white
