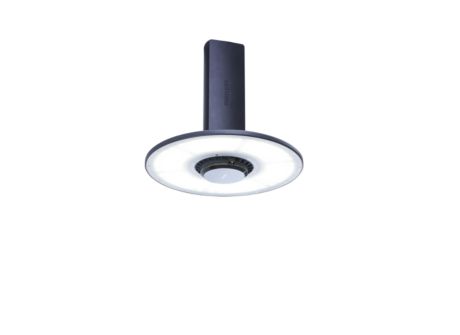

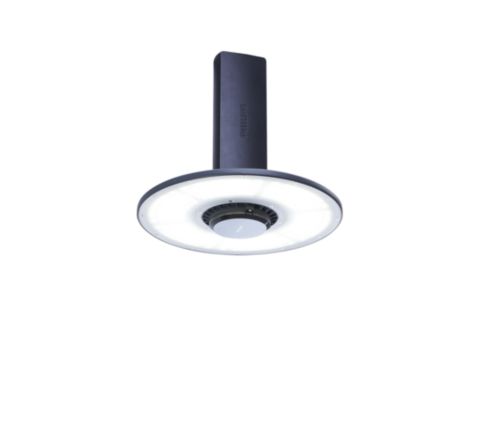

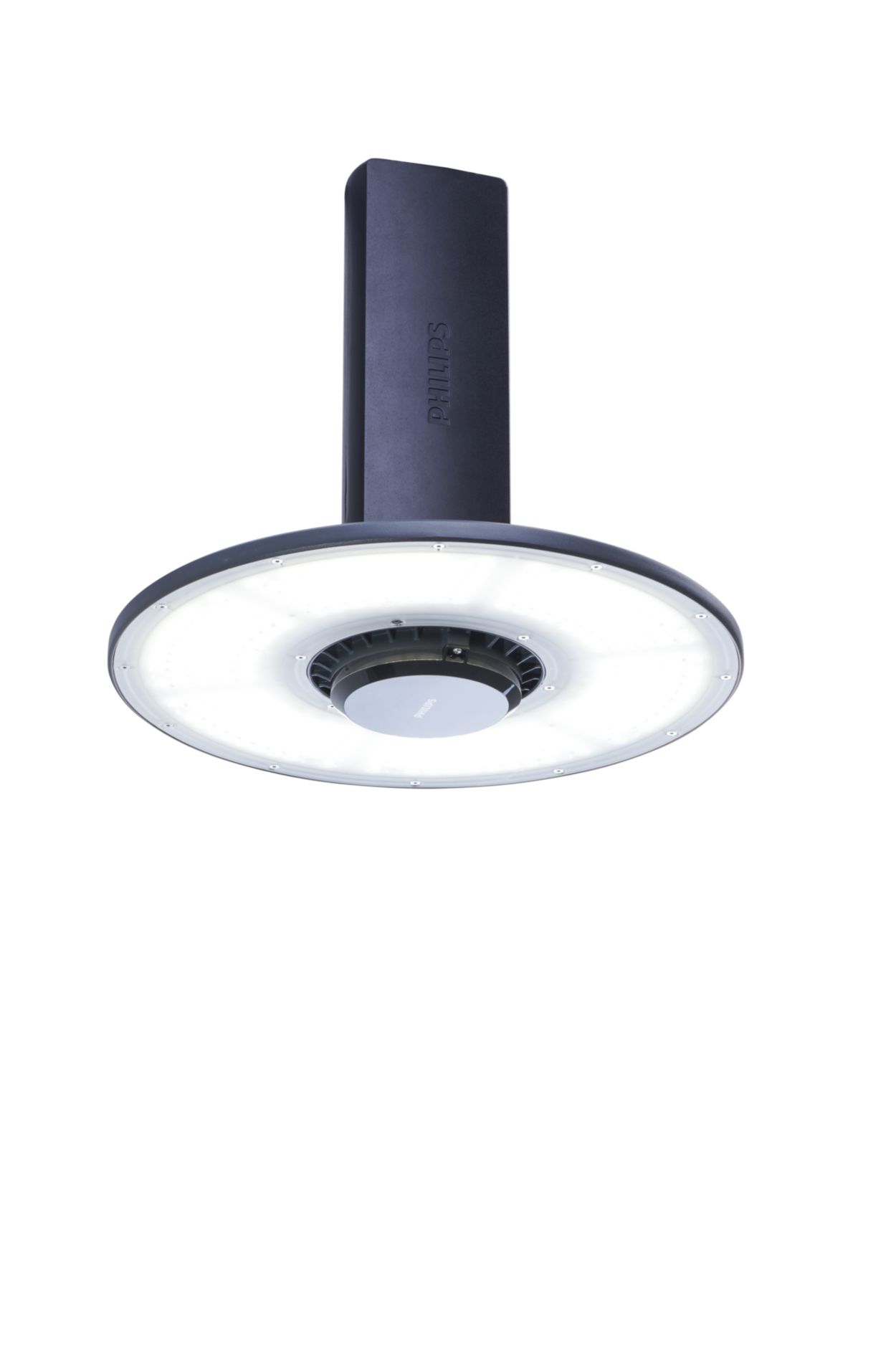

BY718P LED150/CW PSD WB

Specifications Show all

Operating and Electrical

Number of products on MCB of 16 A type B	8
Input Frequency	50 or 60 Hz
Inrush time	0.3 ms
Power Consumption	109 W
Line Frequency	50 or 60 Hz
Input Voltage	220 to 240 V
Inrush current	53 A
Power Factor (Fraction)	0.95
Cable	Cable 0.3 m without plug

Over Time Performance (IEC Compliant)

Driver failure rate at 5000 h	0.0021 %
Median useful life L70B50	75,000 hour(s)

Product Data

Order product name	BY718P LED150/CW PSD WB
Numerator - Quantity Per Pack	1
Full product code	911401580651
Order code	911401580651
Numerator - Packs per outer box	1
Material number (12NC)	911401580651
Full product name	BY718P LED150/CW PSD WB

Approval and Application

Ingress protection code	IP65  [Dust penetration-protected, jet-proof]
Glow-wire test	Temperature 650 °C, duration 30 s
Protection class IEC	Safety class I
CE mark	CE mark
ENEC mark	-
EU RoHS compliant	Yes
Flammability mark	For mounting on normally flammable surfaces
Warranty period	3 years
Mech. impact protection code	IK08  [5 J vandal-protected]

Controls and Dimming

Constant light output	No
Driver/power unit/transformer	Power supply unit with DALI interface
Control interface	DALI
Dimmable	Yes

General Information

Light source replaceable	No
Light source engine type	LED
Driver included	Yes
Number of gear units	1 unit
Service tag	Yes

Mechanical and Housing

Optic material	Polycarbonate
Housing Color	Black and gray
Optical cover/lens material	Polycarbonate
Optical cover/lens finish	Frosted
Overall diameter	415 mm
Housing Material	Aluminum
Overall height	445 mm
Reflector material	-

Application Conditions

Maximum dim level	1%
Suitable for random switching	No

Initial Performance (IEC Compliant)

Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-10%

Temperature

Ambient temperature range

-30 to +50 °C

Light Technical

Optic type	Symmetrical
Correlated Color Temperature (Nom)	6500 K
Luminous Efficacy (rated) (Nom)	137 lm/W
Optical cover/lens type	Polycarbonate bowl/cover
Luminous Flux	15,000 lumen
Luminaire light beam spread	90°
Color rendering index (CRI)	>80
Light source color	865 cool daylight
