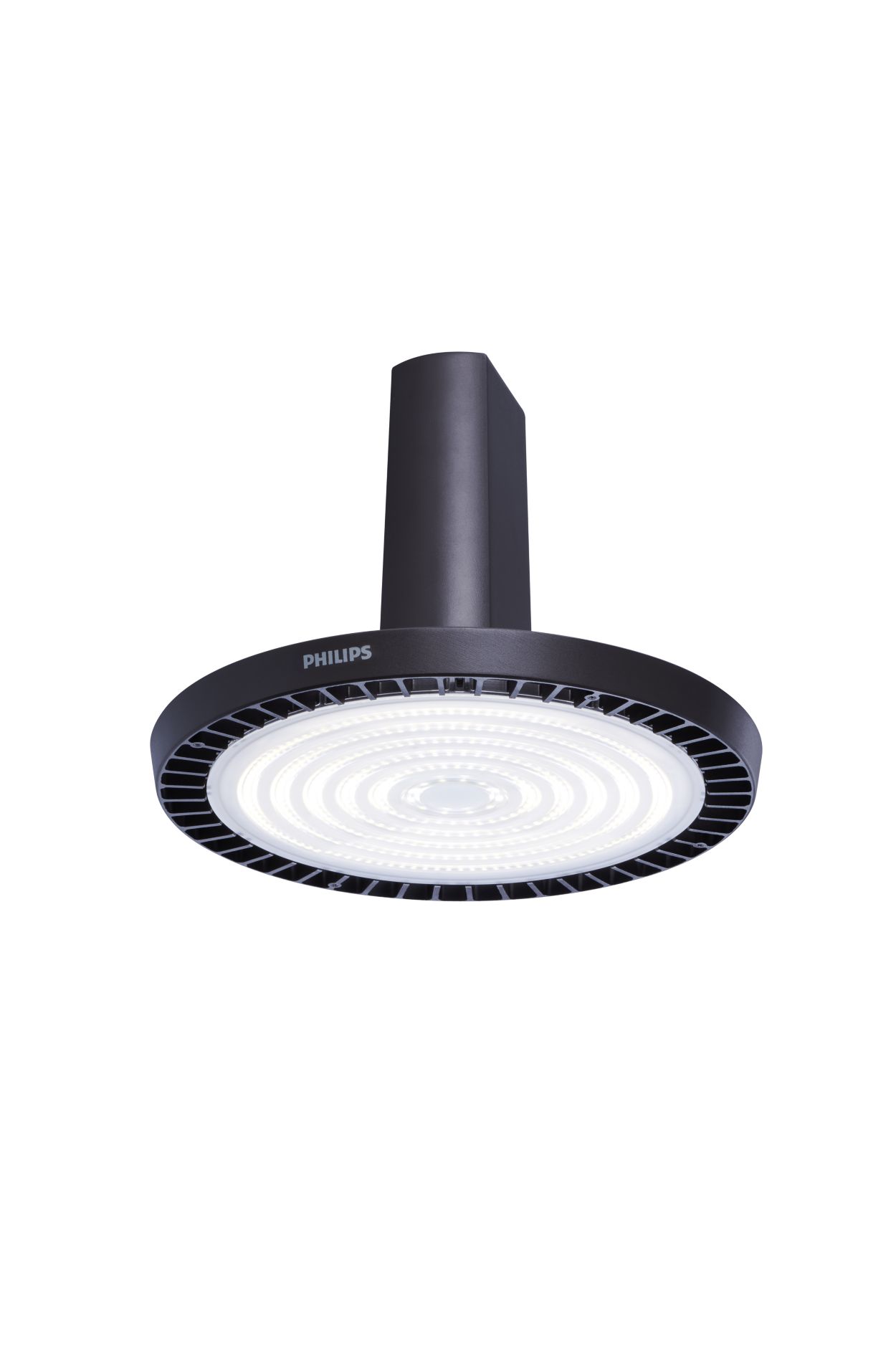

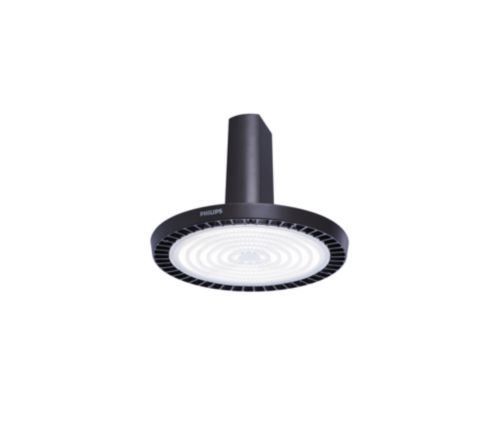

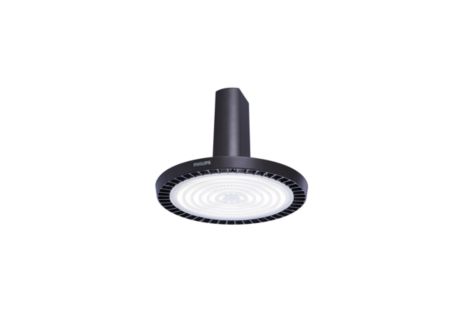

BY698P LED265/CW PSD WB GM G2

Specifications Show all

Operating and Electrical

Connection	-
Number of products on MCB of 16 A type B	8
Input Frequency	50 or 60 Hz
Inrush time	0.6 ms
Initial CLO power consumption	207 W
Power Consumption	207 W
Line Frequency	50 or 60 Hz
Input Voltage	220 to 240 V
Inrush current	60 A
Average CLO power consumption	207 W
Cable	Cable 0.3 m without plug
Power Factor (Fraction)	0.95

Over Time Performance (IEC Compliant)

Driver failure rate at 5000 h	0.1 %
Median useful life L70B50	50,000 hour(s)

Product Data

Order product name	BY698P LED265/CW PSD WB GM G2
Numerator - Quantity Per Pack	1
Full product code	911401535361
Order code	911401535361
Numerator - Packs per outer box	1
Full product name	BY698P LED265/CW PSD WB GM G2
Material number (12NC)	911401535361

Approval and Application

Ingress protection code	IP65  [Dust penetration-protected, jet-proof]
Glow-wire test	Temperature 750 °C, duration 5 s
Protection class IEC	Safety class I
ENEC mark	-
CE mark	CE mark
EU RoHS compliant	Yes
Flammability mark	For mounting on normally flammable surfaces
Warranty period	3 years
Mech. impact protection code	IK08  [5 J vandal-protected]

Controls and Dimming

Constant light output	Programmable
Driver/power unit/transformer	Power supply unit (ON/OFF)
Control interface	DALI
Dimmable	Yes

General Information

Light source replaceable	No
Light source engine type	LED
Driver included	Yes
Number of gear units	2 units

Mechanical and Housing

Optic material	Polycarbonate
Housing Color	Gray
Optical cover/lens material	Polycarbonate
Overall diameter	416 mm
Overall height	335 mm
Housing Material	Aluminum die cast
Fixation material	Aluminum
Optical cover/lens finish	Clear
Reflector material	Aluminum

Application Conditions

Maximum dim level	5%
Suitable for random switching	No

Initial Performance (IEC Compliant)

Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-10%

Temperature

Ambient temperature range

-30 to +45 °C

Light Technical

Optic type	Beam angle 90°
Beam angle of light source	90 degree(s)
Correlated Color Temperature (Nom)	6500 K
Luminous Efficacy (rated) (Nom)	128 lm/W
Optical cover/lens type	Without cover
Luminous Flux	26,500 lumen
Luminaire light beam spread	90°
Color rendering index (CRI)	>80
Light source color	865 cool daylight
