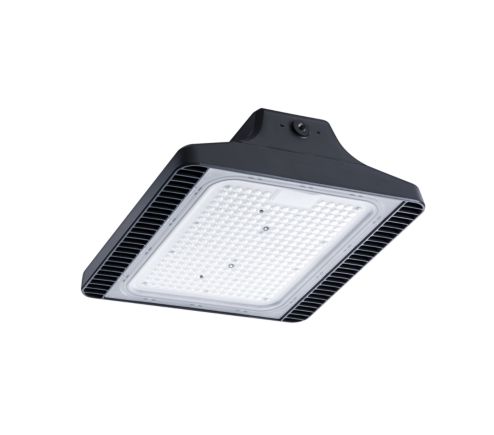

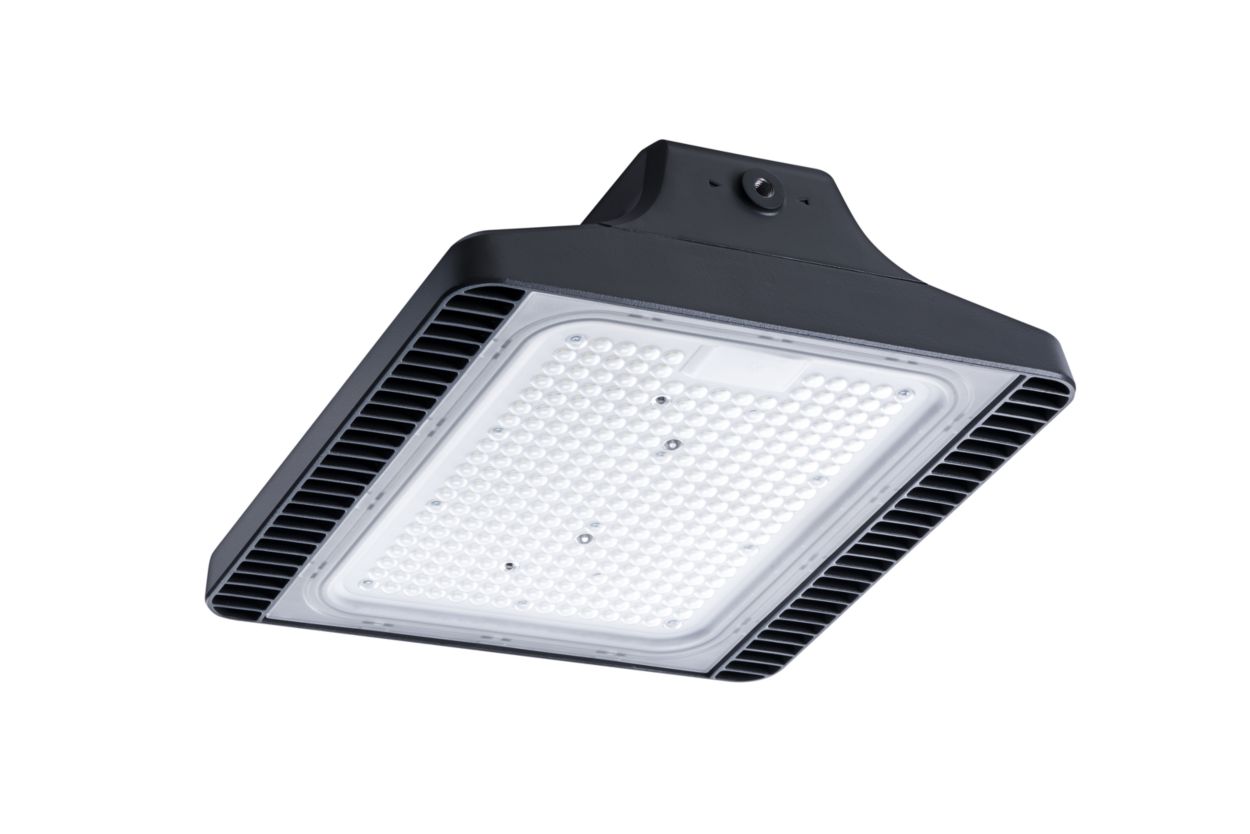

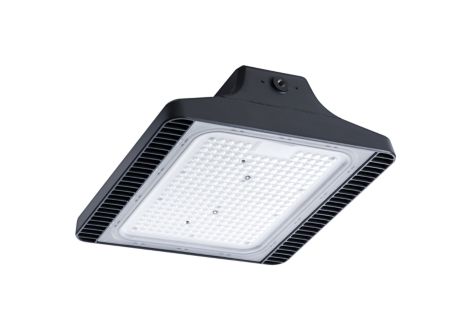

BY570P LED250/CW PSU WB GM

Specifications Show all

Operating and Electrical

Number of products on MCB of 16 A type B	6
Input Frequency	50 or 60 Hz
Power Consumption	182 W
Line Frequency	50 or 60 Hz
Input Voltage	220 to 240 V
Power Factor (Fraction)	0.95

Product Data

Order product name	BY570P LED250/CW PSU WB GM
Numerator - Quantity Per Pack	1
Full product code	911401591961
Full product name	BY570P LED250/CW PSU WB GM
Order code	911401591961
Numerator - Packs per outer box	2
Material number (12NC)	911401591961

Approval and Application

Ingress protection code	IP65  [Dust penetration-protected, jet-proof]
Protection class IEC	Safety class I
CE mark	CE mark
Mech. impact protection code	IK06  [1 J]

Controls and Dimming

Dimmable	No
Control interface	-

General Information

Light source engine type

LED

Mechanical and Housing

Overall width	13 mm
Housing Color	Gray
Optical cover/lens material	Polycarbonate
Optical cover/lens finish	Clear
Overall length	32 mm
Housing Material	Aluminum die cast
Overall height	32.8 mm
Dimensions (Height x Width x Depth)	33 x 13 x 32 mm

Initial Performance (IEC Compliant)

Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-10%

Temperature

Ambient temperature range

-30 to +50 °C

Light Technical

Correlated Color Temperature (Nom)	6500 K
Luminous Efficacy (rated) (Nom)	140 lm/W
Optical cover/lens type	Transparent dome
Luminous Flux	25,000 lumen
Light source color	865 cool daylight
Color rendering index (CRI)	>80
