    • Philips GreenPerform Highbay: A versatile LED highbay that’s designed to optimize performance

      BY570P LED150/CW PSD WB GM
      BY570P LED150/CW PSD WB GM

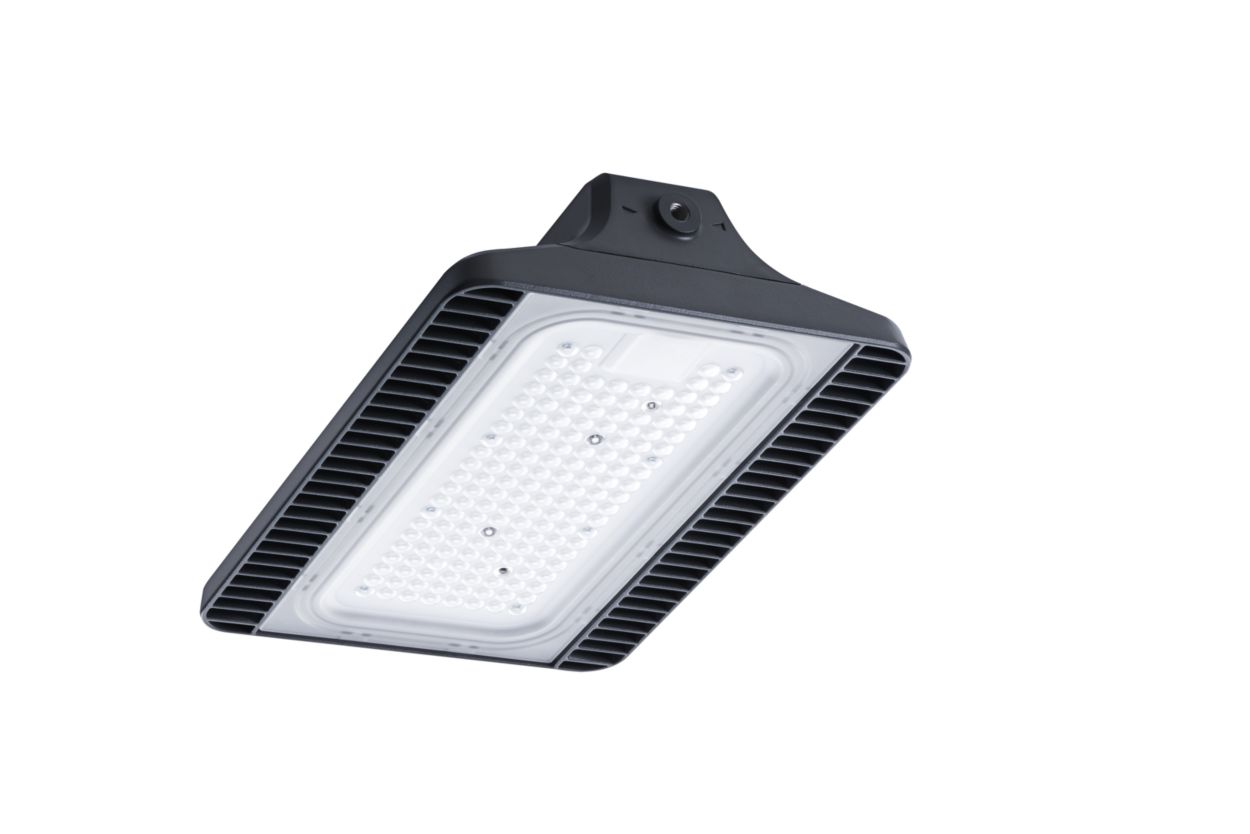

      GreenPerform Highbay Rectangular

      BY570P LED150/CW PSD WB GM

      Downloads

      Spec Sheet
      Size:387.1 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Number of products on MCB of 16 A type B
    8
    Input Frequency
    50 or 60 Hz
    Power Consumption
    119 W
    Line Frequency
    50 or 60 Hz
    Input Voltage
    220 to 240 V
    Power Factor (Fraction)
    0.95
    Approval and Application
    Ingress protection code
    IP65  [Dust penetration-protected, jet-proof]
    Protection class IEC
    Safety class I
    CE mark
    CE mark
    Mech. impact protection code
    IK06  [1 J]
    Product Data
    Order product name
    BY570P LED150/CW PSD WB GM
    Numerator - Quantity Per Pack
    1
    Full product code
    911401593361
    Full product name
    BY570P LED150/CW PSD WB GM
    Order code
    911401593361
    Numerator - Packs per outer box
    2
    Material number (12NC)
    911401593361
    Controls and Dimming
    Control interface
    DALI
    Dimmable
    Yes
    General Information
    Light source engine type
    LED
    Mechanical and Housing
    Overall width
    11 mm
    Housing Color
    Gray
    Optical cover/lens material
    Polycarbonate
    Optical cover/lens finish
    Clear
    Housing Material
    Aluminum die cast
    Overall height
    34 mm
    Dimensions (Height x Width x Depth)
    34 x 11 x 24 mm
    Overall length
    23.6 mm
    Initial Performance (IEC Compliant)
    Power consumption tolerance
    +/-10%
    Luminous flux tolerance
    +/-10%
    Temperature
    Ambient temperature range
    -30 to +45 °C
    Light Technical
    Correlated Color Temperature (Nom)
    6500 K
    Luminous Efficacy (rated) (Nom)
    126 lm/W
    Optical cover/lens type
    Transparent dome
    Luminous Flux
    15,000 lumen
    Light source color
    865 cool daylight
    Color rendering index (CRI)
    >80
    Installation Diagrams

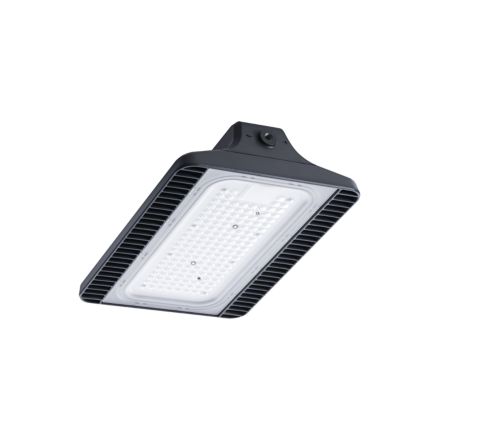

    GreenPerform Highbay Rectangular
    GreenPerform Highbay Rectangular
    Downloads
    Leaflets
    Visuals
    Software Plugins
    • IES IES File - BY570P LED150/CW PSD WB GM IES 9.5 kB
