| Number of light sources | 1
[ 1 pc] |
| Lamp family code | LED80S
[ LED Module, system flux 8000 lm] |
| Beam angle of light source | 120
°
|
| Light source colour | 840 neutral white
|
| Cap base | -
[ -] |
| Light source replaceable | No
|
| Number of gear units | 1 unit
|
| Gear | -
|
| Driver/power unit/transformer | PSD
[ Power supply unit with DALI interface] |
| Driver included | Yes
|
| Optic type | WB
[ Wide beam] |
| Optical cover/lens type | PM
[ PMMA bowl/cover] |
| Luminaire light beam spread | 90°
|
| Control interface | DALI
|
| Connection | CU5
[ Connection unit 5-pole] |
| Cable | -
|
| Protection class IEC | Safety class I (I)
|
| Glow-wire test | 650/30
[ Temperature 650 °C, duration 30 s] |
| Flammability mark | NO
[ -] |
| CE mark | Yes
|
| ENEC mark | ENEC mark
|
| UL mark | -
|
| Warranty period | 5 years
|
| Remarks | *- According to the Lighting Europe guidance paper 'Evaluating performance of LED based luminaires – January 2018': statistically there is no relevant difference in lumen maintenance between the B50 and, for example, the B10. Therefore, the median useful life (B50) value also represents the B10 value.
|
| Constant light output | No
|
| Number of products on MCB (16 A type B) | 24
|
| Photobiological risk | Photobiological risk group 0 @200mm to EN62778
|
| EU RoHS compliant | Yes
|

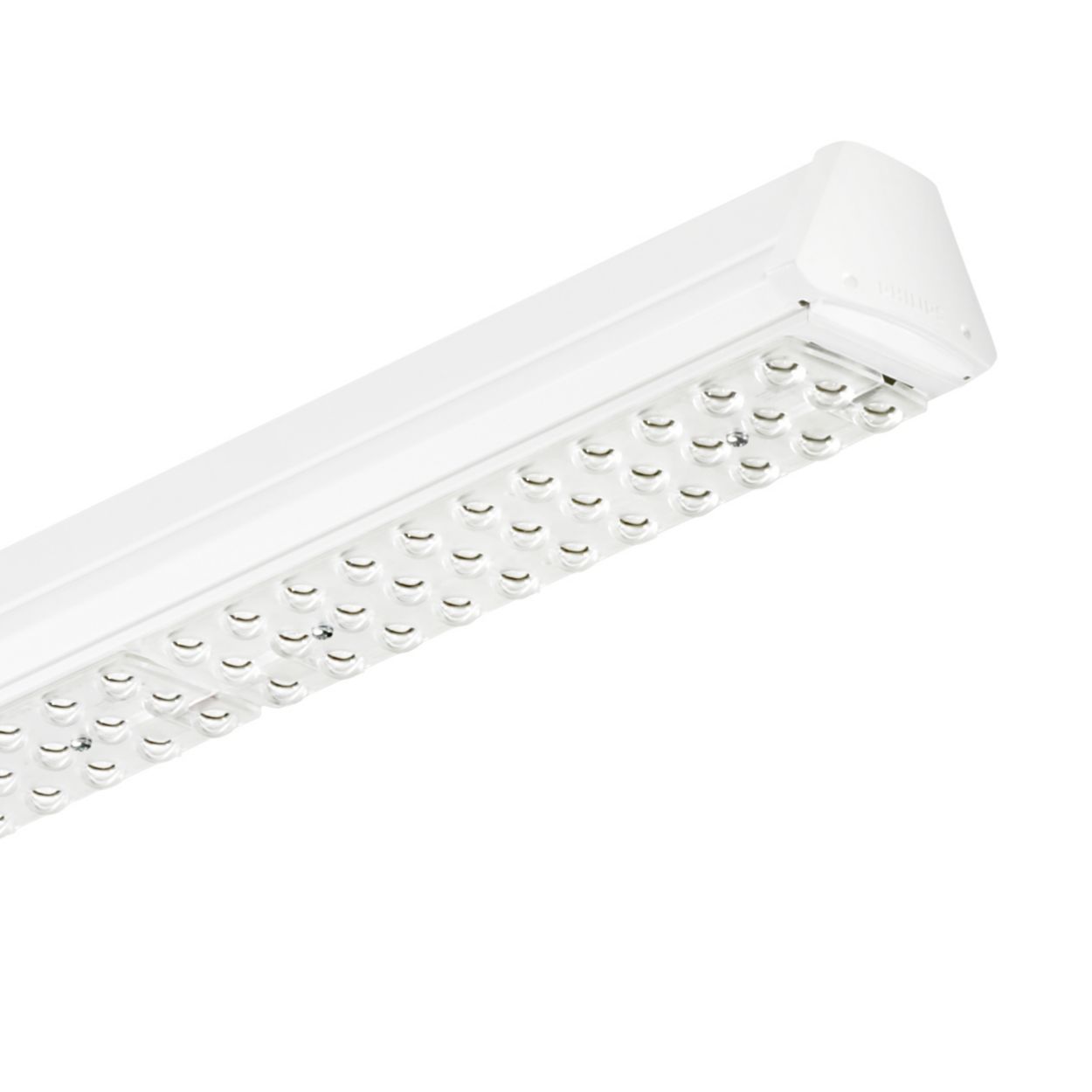

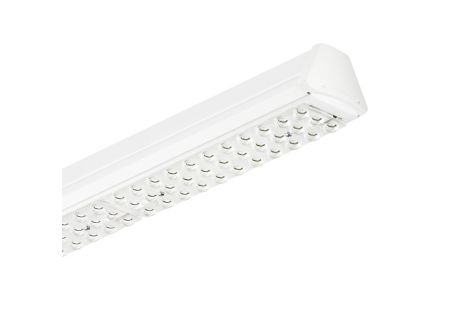

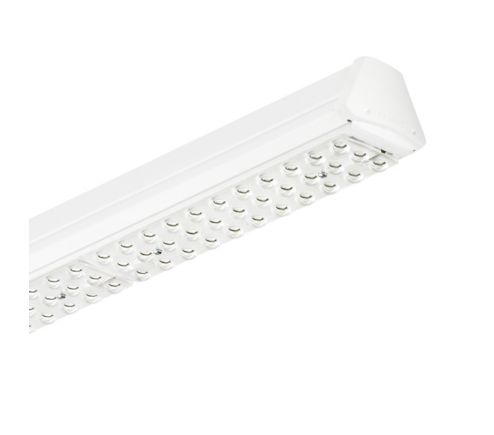

| Product family code | 4MX850
[ Maxos Led Industry] |
| Unified glare rating CEN | Not applicable
|
| Input Voltage | 220-240
V
|
| Input frequency | 50 to 60
Hz
|
| Control signal voltage | 0-16 V DC DALI
|
| Inrush current | 21
A
|
| Inrush time | 0.280
ms
|
| Power factor (min.) | 0.9
|
| Dimmable | Yes
|
| Trunking length | 491
[ 1 unit for TL5 49 W] |
| Housing material | Steel
|
| Reflector material | -
|
| Optic material | Polymethyl methacrylate
|
| Optical cover/lens material | Polymethyl methacrylate
|
| Fixation material | Steel
|
| Optical cover/lens finish | Clear
|
| Overall length | 1478
mm
|
| Overall width | 63
mm
|
| Overall height | 50
mm
|
| Colour | White
|
| Dimensions (height x width x depth) | 50 x 63 x 1478 mm
|
| Ingress protection code | IP20
[ Finger-protected] |
| Mech. impact protection code | IK02
[ 0.2 J standard] |
| Sustainability rating | -
|
| Initial luminous flux (system flux) | 8000
lm
|
| Luminous flux tolerance | +/-10%
|
| Initial LED luminaire efficacy | 166
lm/W
|
| Init. Corr. Colour Temperature | 4000
K
|
| Init. Colour rendering index | ≥80
|
| Initial chromaticity | (0.38, 0.38) SDCM <3.5
|
| Initial input power | 48
W
|
| Power consumption tolerance | +/-10%
|
| Control gear failure rate at median useful life 50,000 h | 5
%
|
| Control gear failure rate at median useful life 100,000 h | 10
%
|
| Lumen maintenance at median useful life* 50,000 h | L90
|
| Lumen maintenance at median useful life* 100,000 h | L80
|
| Ambient temperature range | -20 to +35 °C
|
| Performance ambient temperature Tq | 25 °C
|
| Maximum dimming level | 1%
|
| Suitable for random switching | Not applicable
|
| Full product code | 403073267282099
|
| Order product name | 4MX850 491 LED80S/840 PSD WB WH
|
| EAN/UPC – product | 4030732672820
|
| Order code | 67282099
|
| SAP numerator – quantity per pack | 1
|
| Numerator – packs per outer box | 3
|
| SAP material | 910629167526
|
| Net Weight (Piece) | 1.765
kg
|
