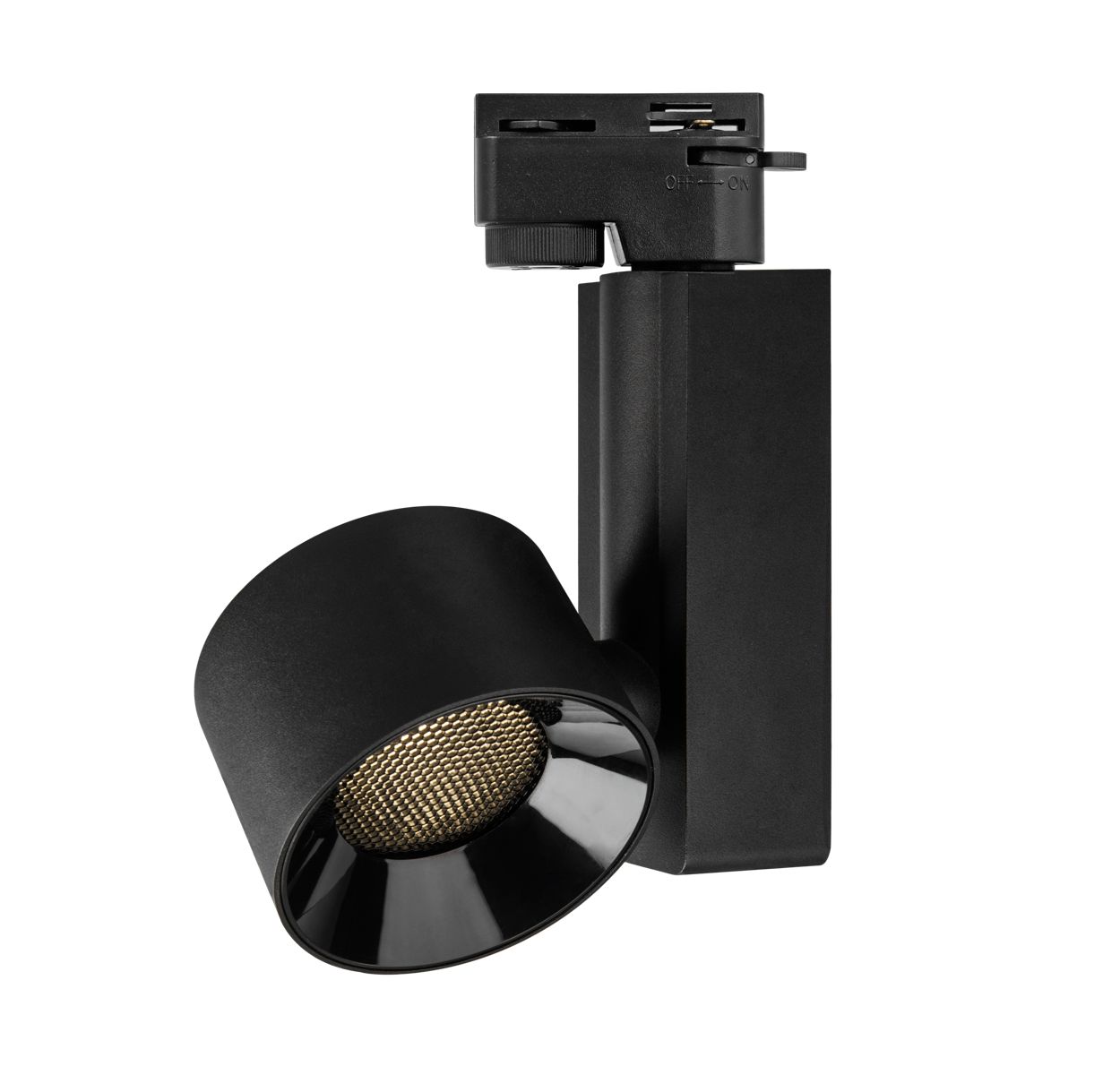

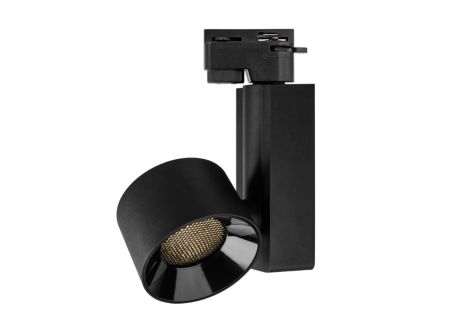

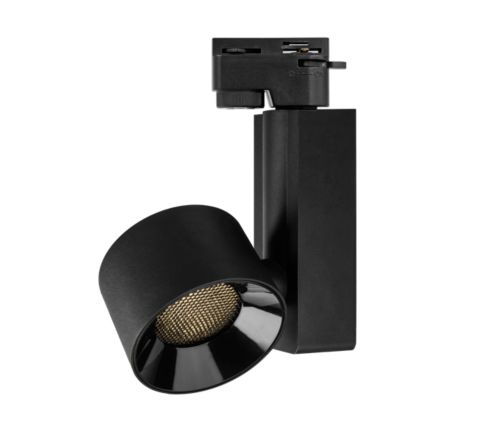

ST306T P40 930 PSU NB BK BR

Specifications Show all

Operating and Electrical

Number of products on MCB of 16 A type B	51
Input Frequency	50 or 60 Hz
Power Consumption	40 W
Line Frequency	50 or 60 Hz
Input Voltage	220-240 V
Power Factor (Fraction)	0.9

Product Data

Order product name	ST306T P40 930 PSU NB BK BR
Numerator - Quantity Per Pack	1
Full product name	ST306T P40 930 PSU NB BK BR
Order code	911401566022
Numerator - Packs per outer box	8
Material number (12NC)	911401566022

Approval and Application

Ingress protection code	IP20  [Finger-protected]
Protection class IEC	Safety class II
CE mark	-
Mech. impact protection code	IK03  [0.3 J]

Controls and Dimming

Dimmable	No
Control interface	-

General Information

Light source engine type

LED

Mechanical and Housing

Overall width	115 mm
Housing Color	Black
Optical cover/lens material	Polycarbonate
Optical cover/lens finish	Smoke
Overall length	175 mm
Housing Material	Aluminum die cast
Overall height	185 mm
Dimensions (Height x Width x Depth)	185 x 115 x 175 mm

Initial Performance (IEC Compliant)

Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-10%

Temperature

Ambient temperature range

-20 to +40 °C

Light Technical

Correlated Color Temperature (Nom)	3000 K
Luminous Efficacy (rated) (Nom)	93 lm/W
Optical cover/lens type	Lens
Luminous Flux	3,720 lumen
Light source color	930 warm white
Color rendering index (CRI)	>90
