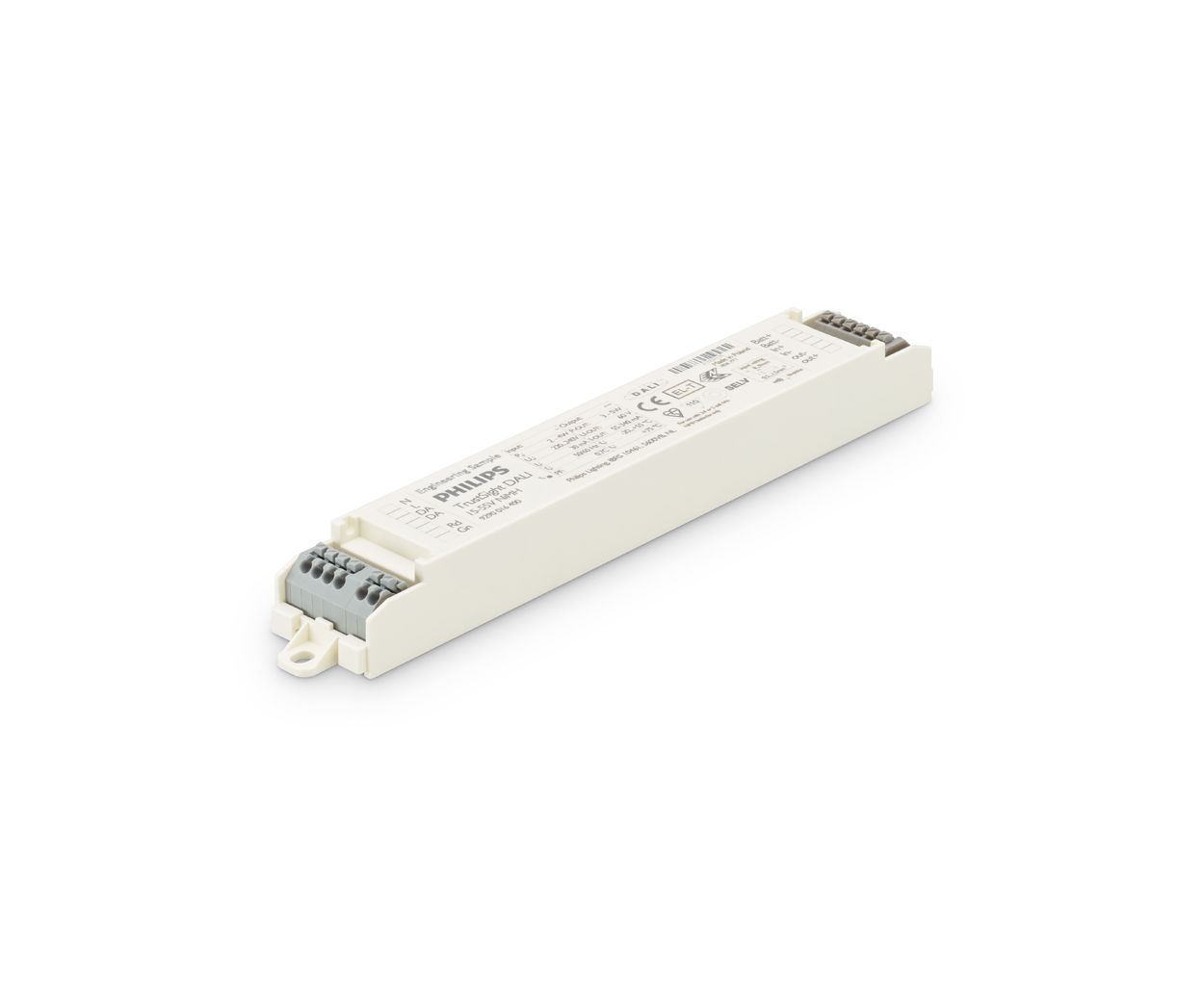

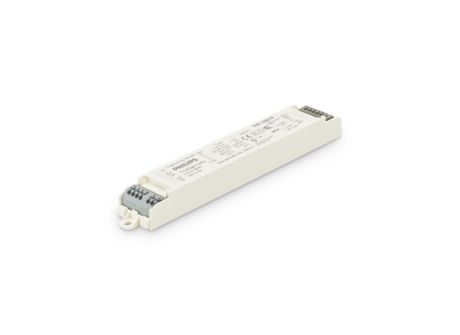

TrustSight BASIC 45-300V NiMH

Specifications Show all

Operating and Electrical

Output Current Ripple (Max)	4 %
Output Current (Max)	1000 mA
Output Power (Min)	2 W
Diagnostics	False
Input Voltage	220 to 240 V
Output Current (Min)	N/A mA
Output Voltage (Max)	300 V
Output Voltage (Min)	45 V
Output Power (Max)	5 W
Open Circuit Voltage (DC) (Max)	330 V

Approval and Application

Ingress protection code	IP20  [Finger-protected]
Protection class IEC	Safety class I/II
Approval Marks	CE marking	CB Certificate	ENEC certificate
Output Current Set Options	N/A
Isolation Classification	Class I and Class II

Product Data

Order product name	TrustSight BASIC 45-300V NiMH
Numerator - Quantity Per Pack	1
Full product code	871869960914600
Full product name	TrustSight BASIC 45-300V NiMH
Order code	929001642706
Numerator - Packs per outer box	10
Material number (12NC)	929001642706
EAN/UPC - Case	8718699609153

Controls and Dimming

Dimmable

No

General Information

Nominal lifetime	700,000 hour(s)
Lighting Technology	LED

Mechanical and Housing

Overall width	30 mm
Product Length	205 mm
Overall length	205 mm
Overall height	21 mm
Dimensions (Height x Width x Depth)	21 x 30 x 205 mm

Emergency Operation

Emergency time

3 hour(s)

Temperature

T-Case Lifetime (Max)	75 °C
T-Case Maximum (Max)	75 °C

System characteristics

YellowDot ready	No
Central DC Operation	No
