    • Reliable, high performance technology for extreme LED applications

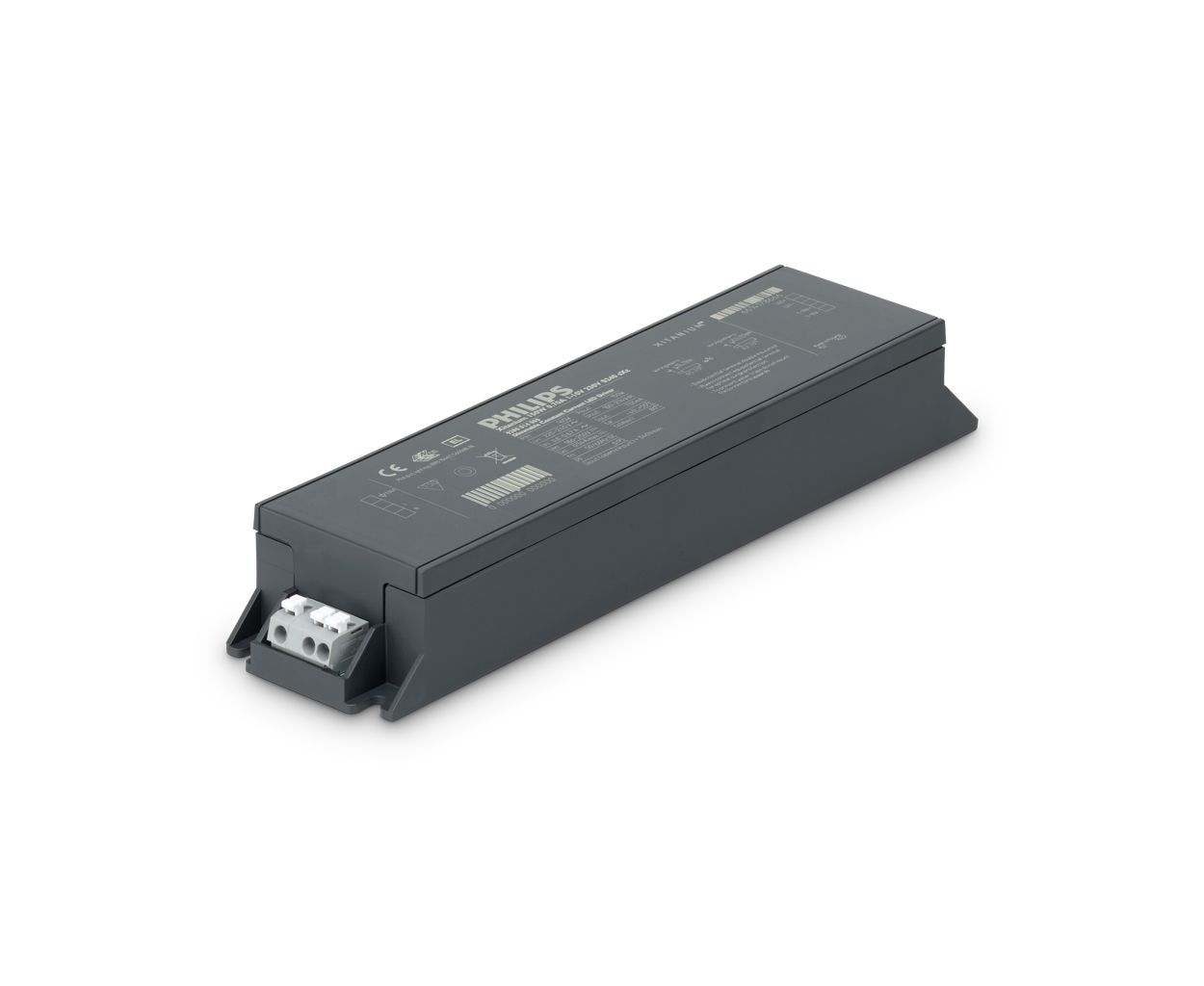

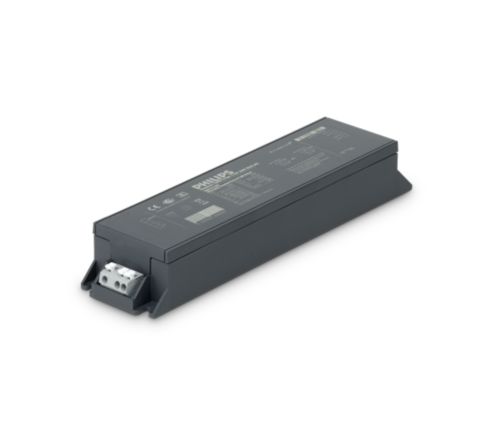

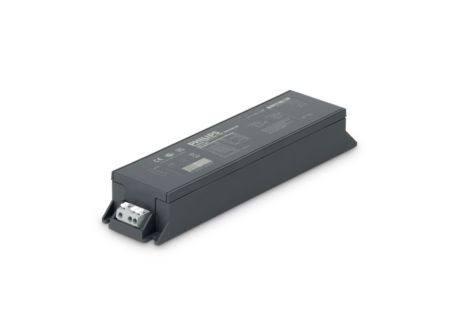

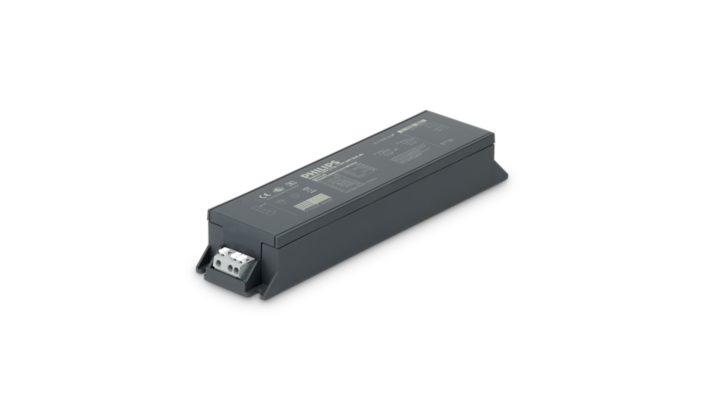

      Xitanium 150W 0.70A 1-10V 230V S240 sXt
      LED
      Xitanium 150W 0.70A 1-10V 230V S240 sXt
      Xitanium LED drivers - 1-10V dimmable

      Xitanium 150W 0.70A 1-10V 230V S240 sXt

      Downloads

      Spec Sheet
      Size:349.9 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Maximum Efficiency at Full Load
    93.3 %
    Output Current Ripple (Max)
    4 %
    Output Current (Max)
    700 mA
    Output Power (Min)
    7 W
    Diagnostics
    False
    Output Current (Min)
    700 mA
    Output Voltage (Min)
    100 V
    Output Voltage (Max)
    214 V
    Output Power (Max)
    150 W
    Inrush Current Width to 50% of Peak
    475 µs
    Inrush Current Peak (Max)
    34 A
    Open Circuit Voltage (DC) (Max)
    320 V
    Approval and Application
    Ingress protection code
    IP20  [Finger-protected]
    Surge Protection (Common/Differential)
    Luminaire surge protection level until 6 kV differential mode and 8 kV common mode
    Protection class IEC
    Safety class I/II
    Approval Marks
    CCC certificate
    CE marking
    CB Certificate
    ENEC certificate
    Isolation Classification
    Class I and Class II
    Output Current Set Options
    0.7A
    Product Data
    Order product name
    Xitanium 150W 0.70A 1-10V 230V S240 sXt
    Numerator - Quantity Per Pack
    1
    Full product code
    871869664623600
    Full product name
    Xitanium 150W 0.70A 1-10V 230V S240 sXt
    Order code
    929001405506
    Numerator - Packs per outer box
    10
    EAN/UPC - Case
    8718696646243
    Material number (12NC)
    929001405506
    Controls and Dimming
    Constant light output
    Yes
    DynaDimmer
    No
    Dimming Range
    100-10 %
    D4i compliant
    No
    Dimmable
    1-10V
    General Information
    Nominal lifetime
    100,000 hour(s)
    Lighting Technology
    LED
    Mechanical and Housing
    Overall width
    59.7 mm
    Product Length
    240 mm
    Housing
    S240
    Overall height
    37.8 mm
    Dimensions (Height x Width x Depth)
    38 x 60 x 240 mm
    Overall length
    240 mm
    Temperature
    T-Case Lifetime (Max)
    75 °C
    T-Case Maximum (Max)
    85 °C
    System characteristics
    YellowDot ready
    No
    Central DC Operation
    No
