    • The new generation of energy-saving LED PLC 2P tube lighting

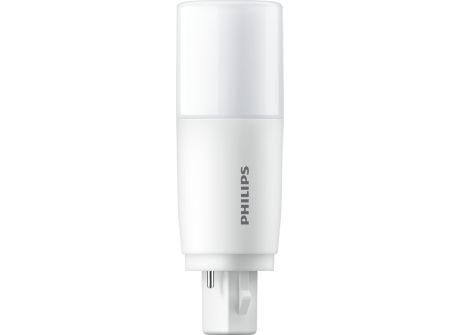

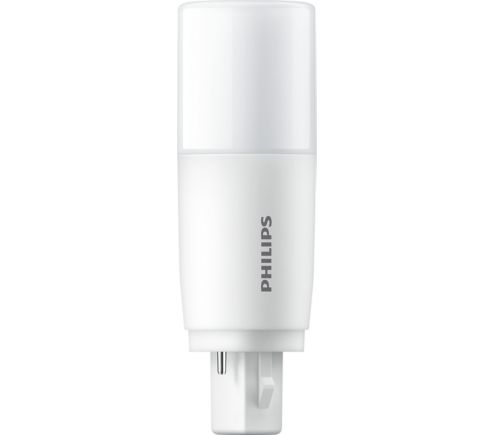

      LED PLC 7.5W 865 2P G24d
      LED
      LED PLC 7.5W 865 2P G24d
      CorePro LED PLC 2P

      LED PLC 7.5W 865 2P G24d

      Downloads

      Spec Sheet
      Size:809.0 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Input Frequency
    50 to 60 Hz
    Power Consumption
    7.5 W
    Warm-up time to 60% light
    0.5 s
    Line Frequency
    50 to 60 Hz
    Starting Time (Nom)
    0.5 s
    Power Factor (Fraction)
    0.5
    Lamp Current (Nom)
    57 mA
    Voltage (Nom)
    220-240 V
    Approval and Application
    Approval Marks
    RoHS compliance
    CE marking
    KEMA Keur certificate
    EU RoHS compliant
    Yes
    Energy Consumption kWh/1000 h
    - kWh
    Energy Saving Product
    Yes
    Product Data
    Order product name
    LED PLC 7.5W 865 2P G24d
    Numerator - Quantity Per Pack
    1
    Full product code
    871869681020000
    Full product name
    LED PLC 7.5W 865 2P G24d
    Order code
    929001879108
    Numerator - Packs per outer box
    10
    Material number (12NC)
    929001879108
    EAN/UPC - Case
    8718696810217
    Controls and Dimming
    Dimmable
    No
    General Information
    Nominal lifetime
    15,000 hour(s)
    Lighting Technology
    LED
    Cap-Base
    G24D  [G24d]
    Switching Cycle
    50,000
    Mechanical and Housing
    Product Length
    100 mm
    Bulb Shape
    PL-C
    Temperature
    T-Case Maximum (Nom)
    64 °C
    Ambient temperature range
    -20 °C to 45 °C
    Light Technical
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Beam Angle (Nom)
    240 degree(s)
    Color Consistency
    <6
    Correlated Color Temperature (Nom)
    6500 K
    Color Designation
    Cool Daylight
    Luminous Efficacy (rated) (Nom)
    107.00 lm/W
    Luminous Flux
    806 lumen
    Color rendering index (CRI)
    80
    Color Code
    865  [CCT of 6500K]

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    LEDtube G24D
    LEDtube G24D
    Performance Diagrams
    Lumen Maintenance Diagram - LED PLC 7.5W 865 2P G24d
    Lumen Maintenance Diagram - LED PLC 7.5W 865 2P G24d
    Lumen Maintenance Diagram - LED PLC 7.5W 865 2P G24d
    Lumen Maintenance Diagram - LED PLC 7.5W 865 2P G24d
    Life Expectancy Diagram - LED PLC 7.5W 865 2P G24d
    Life Expectancy Diagram - LED PLC 7.5W 865 2P G24d
    Life Expectancy Diagram - LED PLC 7.5W 865 2P G24d
    Life Expectancy Diagram - LED PLC 7.5W 865 2P G24d
    Life Expectancy Diagram - LED PLC 7.5W 865 2P G24d
    Life Expectancy Diagram - LED PLC 7.5W 865 2P G24d
    Photometrics
    General uniform lighting
    General uniform lighting
    Spectral Power Distribution Colour - LED PLC 7.5W 865 2P G24d
    Spectral Power Distribution Colour - LED PLC 7.5W 865 2P G24d
    Light Distribution Diagram - LED PLC 7.5W 865 2P G24d
    Light Distribution Diagram - LED PLC 7.5W 865 2P G24d
    Downloads
    Leaflets
    Green Data
    Visuals
    Software Plugins
    • IES IES File - LED PLC 7.5W 865 2P G24d IES 4.8 kB
