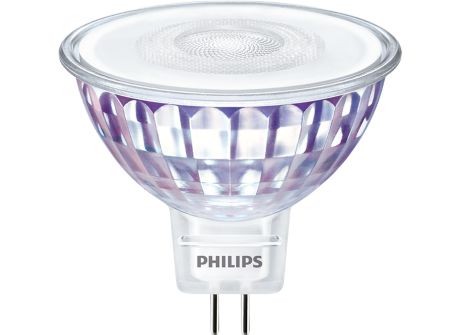

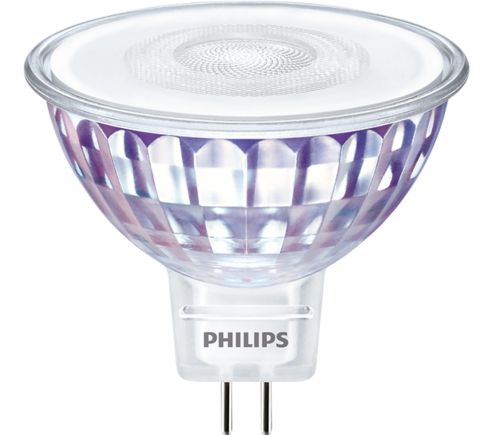

MAS LED SPOT VLE D 7.5-50W MR16 930 60D

Specifications Show all

Operating and Electrical

Input Frequency	- Hz
Power Consumption	7.5 W
Wattage Equivalent	50 W
Warm-up time to 60% light	0.5 s
Line Frequency	- Hz
Power Factor (Fraction)	0.7
Starting Time (Nom)	0.5 s
Voltage (Nom)	ac electronic 12 V
Lamp Current (Nom)	660 mA

Approval and Application

EPREL Registration Number	453184
CE mark	Yes
EU RoHS compliant	Yes
Energy Consumption kWh/1000 h	8 kWh
Suitable For Accent Lighting	Yes
Energy Efficiency Class	F

Product Data

Order product name	MAS LED SPOT VLE D 7.5-50W MR16 930 60D
Numerator - Quantity Per Pack	1
Full product code	871951430740700
Full product name	MAS LED SPOT VLE D 7.5-50W MR16 930 60D
Order code	929002493602
Numerator - Packs per outer box	10
Material number (12NC)	929002493602
EAN/UPC - Case	8719514307414

Controls and Dimming

Dimmable

Only with specific dimmers

General Information

Nominal lifetime	25,000 hour(s)
Lighting Technology	LED
Cap-Base	GU5.3  [GU5.3]
Switching Cycle	50,000
Flux measurement reference	Narrow Cone

Mechanical and Housing

Bulb Shape

MR16  [2inch/50mm]

Temperature

T-Case Maximum (Nom)

95 °C

Light Technical

LLMF At End Of Nominal Lifetime (Nom)	70 %
Beam Angle (Nom)	60 degree(s)
Color Consistency	<6
Correlated Color Temperature (Nom)	3000 K
Color Designation	White (WH)
Luminous Intensity (Nom)	800 cd
Luminous Efficacy (rated) (Nom)	84.00 lm/W
Luminous Flux	630 lumen
Color rendering index (CRI)	90
Luminous Flux in 90° Cone (Rated)	630 lumen
Color Code	930  [CCT of 3000K]
