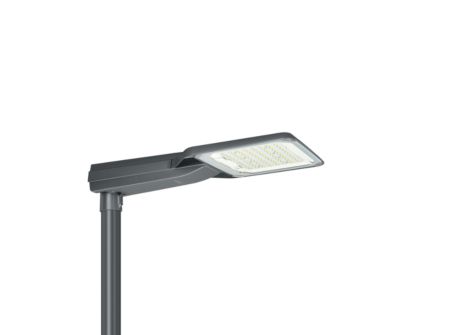

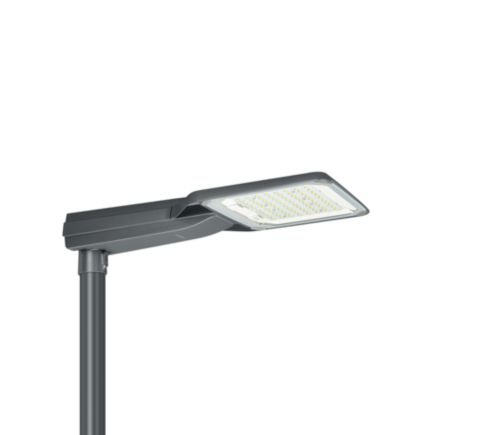

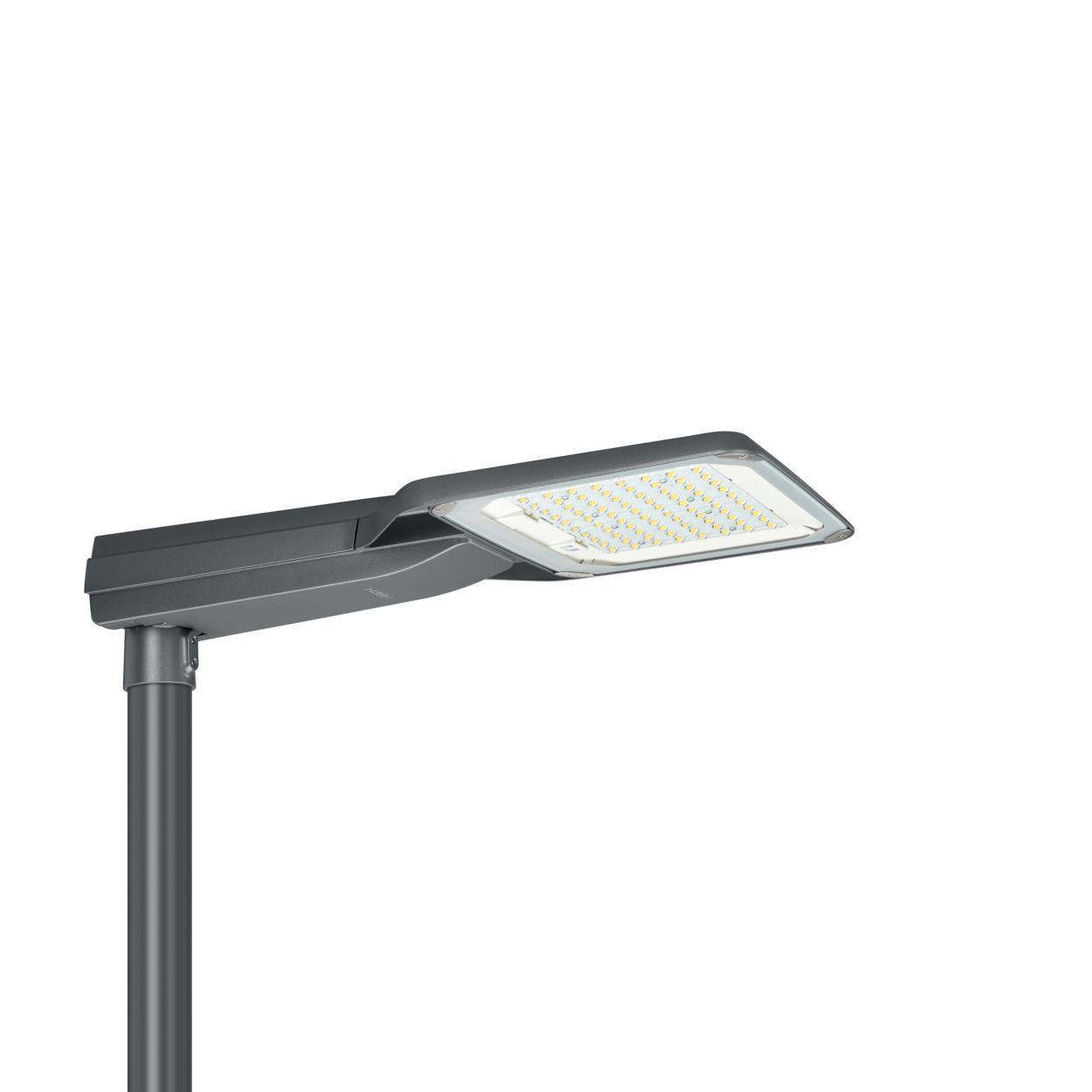

BGP762 LED149-/740 I DM50 DGR 32-48

Specifications Show all

Operating and Electrical

Number of products on MCB of 16 A type B	8
Connection	Screw connector
Power Consumption	88 W
Cable	-
Line Frequency	50 to 60 Hz
Input Voltage	220-240 V
Inrush current	53 A
Input Frequency	50 to 60 Hz
Inrush time	0.3 ms
Power Factor (Fraction)	0.99

Over Time Performance (IEC Compliant)

Control gear failure rate at median useful life 100000 h	10 %
Lumen maintenance at median useful life* 100000 h	L96

Product Data

Numerator - Quantity Per Pack	1
Full product code	871869637830400
Full product name	BGP762 LED149-/740 I DM50 DGR 32-48
Order code	910925866225
Material number (12NC)	910925866225
EAN/UPC - Case	8718696378304
Order product name	BGP762 LED149-/740 I DM50 DGR 32-48
Numerator - Packs per outer box	1

Approval and Application

Ingress protection code	IP66  [Dust penetration-protected, jet-proof]
Surge Protection (Common/Differential)	Luminaire surge protection level until 6 kV differential mode and 8 kV common mode
Protection class IEC	Safety class I
CE mark	Yes
EU RoHS compliant	Yes
Flammability mark	-
Warranty period	5 years
Sustainability rating	-
Photobiological risk	Photobiological risk group 0 @200mm to EN62778
Mech. impact protection code	IK09  [10 J]
ENEC mark	ENEC mark

Controls and Dimming

Constant light output	No
Driver/power unit/transformer	Power supply unit (On/Off)
Control interface	-
Dimmable	Yes

General Information

Light source replaceable	Yes
Remarks	* At extreme ambient temperatures the luminaire might automatically dim down to protect components
Light source engine type	LED
Lamp family code	LED149  [LED module 14900 lm]
Driver included	Yes
Number of gear units	1 unit
Product family code	BGP762  [DigiStreet Medium]
Value ladder	Specification
Lighting Technology	LED

Mechanical and Housing

Overall width	361 mm
Optic material	Acrylate
Mounting device	Spigot for diameter 32 to 48 mm
Housing Color	Dark gray
Optical cover/lens shape	Flat
Optical cover/lens material	Glass
Optical cover/lens finish	Clear
Fixation material	Stainless steel
Housing Material	Aluminum die cast
Effective projected area	0.068 m²
Overall length	860 mm
Dimensions (Height x Width x Depth)	107 x 361 x 860 mm
Reflector material	Polycarbonate
Overall height	107 mm

Application Conditions

Maximum dim level	Not applicable
Performance ambient temperature Tq	25 °C

Initial Performance (IEC Compliant)

Initial chromaticity	(0.38. 0.38) SDCM <5
Init. Color Rendering Index Tolerance	+/-2
Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-7%

Temperature

Ambient temperature range

-40 to +50 °C

Light Technical

Standard tilt angle posttop	0°
Correlated Color Temperature (Nom)	4000 K
Standard tilt angle side entry	0°
Luminous Efficacy (rated) (Nom)	153 lm/W
Optical cover/lens type	Flat glass
Upward light output ratio	0
Luminous Flux	13,500 lumen
Color rendering index (CRI)	70
Light source color	740 neutral white
Luminaire light beam spread	154° - 31° x 54°
Optic type outdoor	Distribution medium 50
