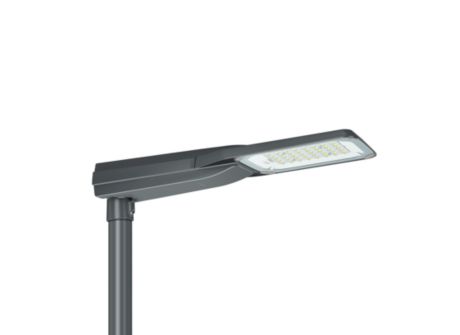

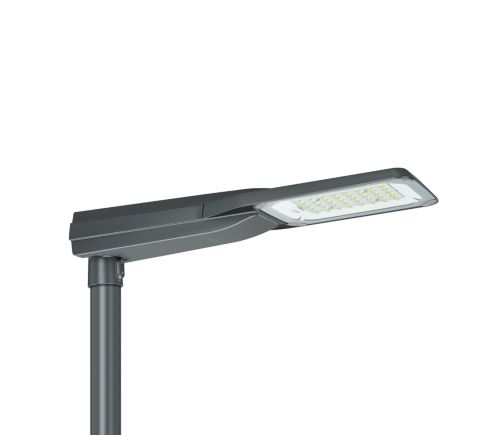

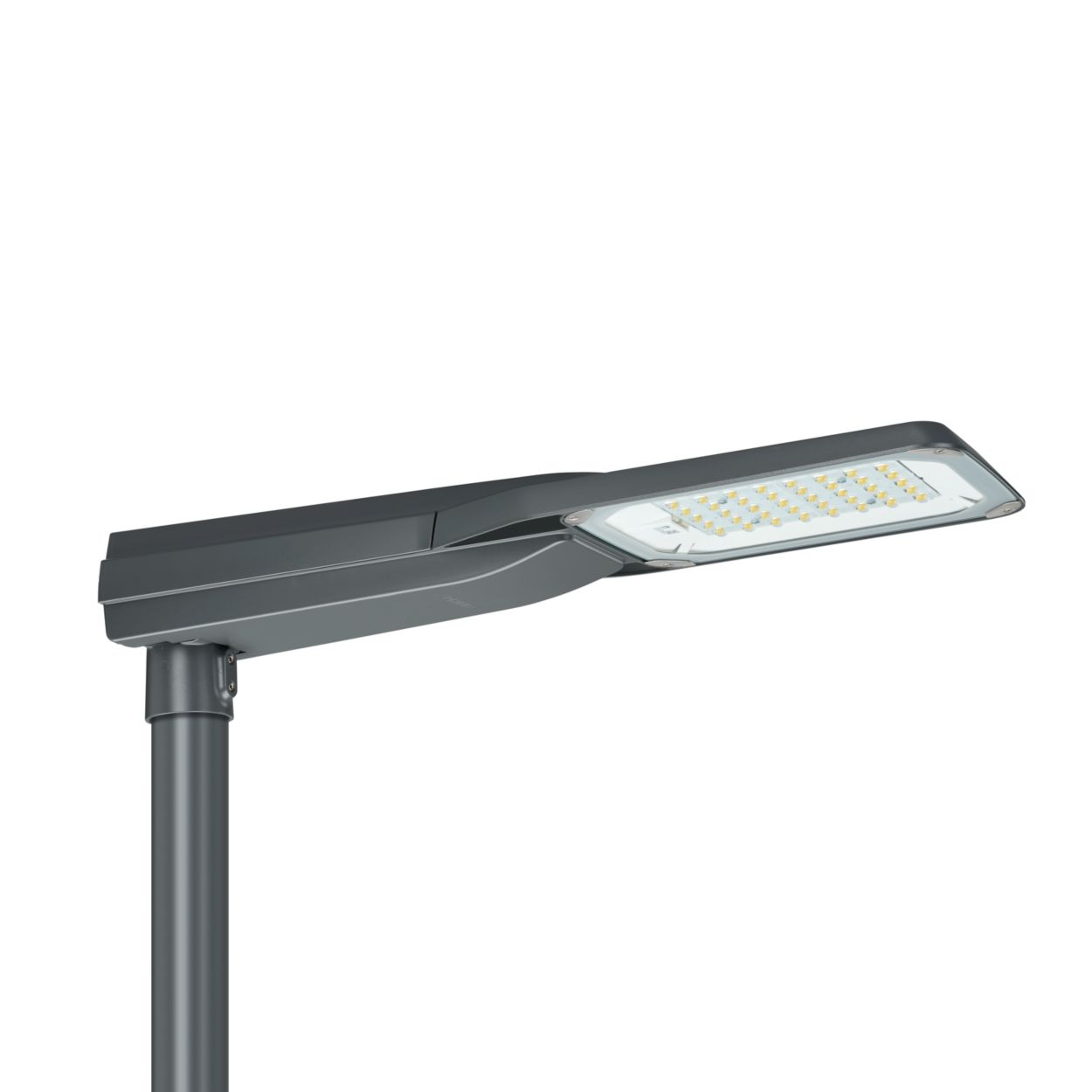

      BGP761 LED79-/830 II DM70 DGR DDF27 D18
      LED
      BGP761 LED79-/830 II DM70 DGR DDF27 D18
      DigiStreet

      BGP761 LED79-/830 II DM70 DGR DDF27 D18

    Specifications Show all

    Operating and Electrical
    Connection
    Screw connector
    Number of products on MCB of 16 A type B
    11
    Power Consumption
    60 W
    Line Frequency
    50 to 60 Hz
    Input Voltage
    220-240 V
    Inrush current
    46 A
    Cable
    -
    Input Frequency
    50 to 60 Hz
    Inrush time
    0.25 ms
    Power Factor (Fraction)
    0.98
    Over Time Performance (IEC Compliant)
    Control gear failure rate at median useful life 100000 h
    10 %
    Lumen maintenance at median useful life* 100000 h
    L97
    Product Data
    Numerator - Quantity Per Pack
    1
    Full product code
    871869637700000
    Order code
    910925866239
    Material number (12NC)
    910925866239
    Full product name
    BGP761 LED79-/830 II DM70 DGR DDF27 D18
    EAN/UPC - Case
    8718696377000
    Order product name
    BGP761 LED79-/830 II DM70 DGR DDF27 D18
    Numerator - Packs per outer box
    1
    Approval and Application
    Ingress protection code
    IP66  [Dust penetration-protected, jet-proof]
    Surge Protection (Common/Differential)
    Luminaire surge protection level until 6 kV differential mode and 8 kV common mode
    Protection class IEC
    Safety class II
    CE mark
    Yes
    EU RoHS compliant
    Yes
    Warranty period
    5 years
    Flammability mark
    -
    Sustainability rating
    -
    Photobiological risk
    Photobiological risk group 0 @200mm to EN62778
    Mech. impact protection code
    IK09  [10 J]
    ENEC mark
    ENEC mark
    Controls and Dimming
    Constant light output
    No
    Driver/power unit/transformer
    Power supply unit with DynaDimmer
    Control interface
    Internal (no external connection)
    Dimmable
    Yes
    General Information
    Light source replaceable
    Yes
    Remarks
    * At extreme ambient temperatures the luminaire might automatically dim down to protect components
    Light source engine type
    LED
    Lamp family code
    LED79  [LED module 7900 lm]
    Driver included
    Yes
    Product family code
    BGP761  [DigiStreet Mini]
    Number of gear units
    1 unit
    Embedded control
    DynaDimmer with fixed presets version 27
    Value ladder
    Specification
    Lighting Technology
    LED
    Mechanical and Housing
    Overall width
    236 mm
    Optic material
    Acrylate
    Housing Color
    Dark gray
    Mounting device
    Spigot for diameter 62 mm
    Optical cover/lens shape
    Flat
    Optical cover/lens material
    Glass
    Housing Material
    Aluminum die cast
    Fixation material
    Stainless steel
    Optical cover/lens finish
    Clear
    Effective projected area
    0.0666 m²
    Overall length
    860 mm
    Dimensions (Height x Width x Depth)
    107 x 236 x 860 mm
    Reflector material
    Polycarbonate
    Overall height
    107 mm
    Application Conditions
    Maximum dim level
    50%
    Performance ambient temperature Tq
    25 °C
    Initial Performance (IEC Compliant)
    Initial chromaticity
    (0.43. 0.40) SDCM <5
    Init. Color Rendering Index Tolerance
    +/-2
    Power consumption tolerance
    +/-10%
    Luminous flux tolerance
    +/-7%
    Temperature
    Ambient temperature range
    -40 to +50 °C
    Light Technical
    Standard tilt angle posttop
    Correlated Color Temperature (Nom)
    3000 K
    Luminous Efficacy (rated) (Nom)
    117 lm/W
    Optical cover/lens type
    Flat glass
    Upward light output ratio
    0
    Luminous Flux
    7,040 lumen
    Luminaire light beam spread
    -
    Color rendering index (CRI)
    80
    Light source color
    830 warm white
    Optic type outdoor
    Distribution medium 70
    Standard tilt angle side entry
    Installation Diagrams
     DigiStreet Mini - LED module 7900 lm - 830 warm white - Safety class II - Distribution medium 70 - Dark gray - DynaDimmer with fixed presets version 27 - Dimming via DynaDimmer integrated in ballast or driver - Luminaire surge protection level until 6 kV differential mode and 8 kV common mode - Spigot for diameter 62 mm
    DigiStreet Mini - LED module 7900 lm - 830 warm white - Safety class II - Distribution medium 70 - Dark gray - DynaDimmer with fixed presets version 27 - Dimming via DynaDimmer integrated in ballast or driver - Luminaire surge protection level until 6 kV differential mode and 8 kV common mode - Spigot for diameter 62 mm
