Connection | Screw connector
|
Number of products on MCB of 16 A type B | 4
|
Power Consumption | 154
W
|
Line Frequency | 50 to 60
Hz
|
Input Voltage | 220-240
V
|
Inrush current | 53
A
|
Cable | -
|
Input Frequency | 50 to 60
Hz
|
Inrush time | 0.3
ms
|
Power Factor (Fraction) | 0.99
|
Control gear failure rate at median useful life 100000 h | 10
%
|
Lumen maintenance at median useful life* 100000 h | L96
|
Numerator - Quantity Per Pack | 1
|
Full product code | 871869637840300
|
Order code | 910925866250
|
EAN/UPC - Case | 8718696378403
|

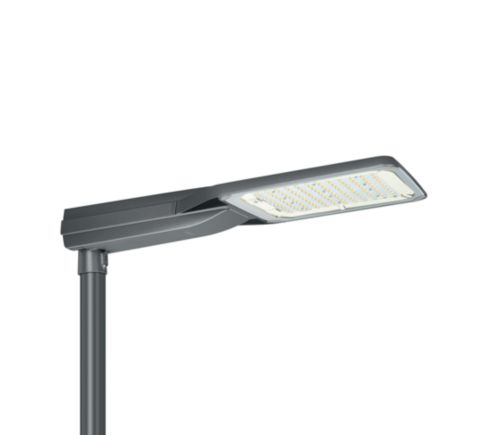

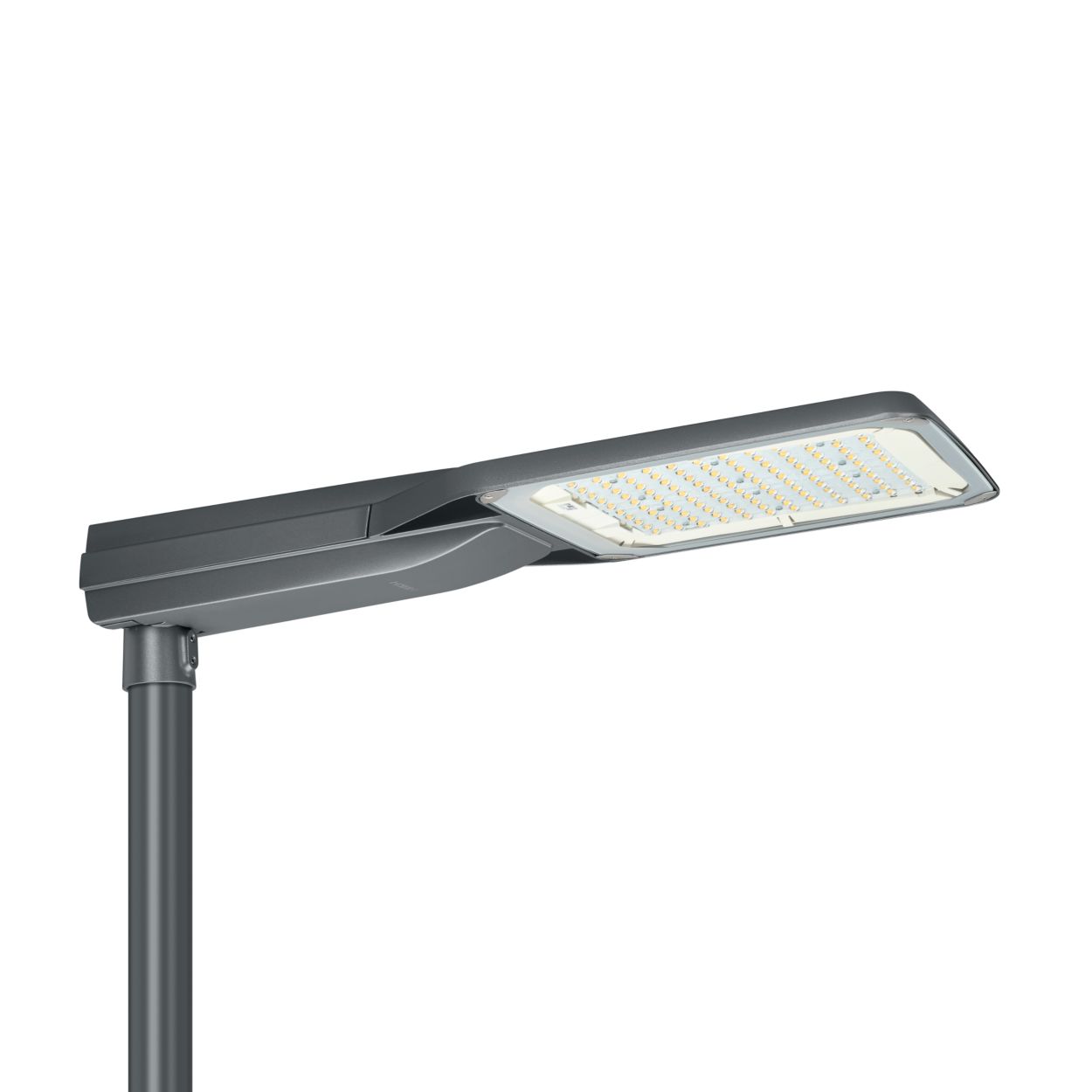

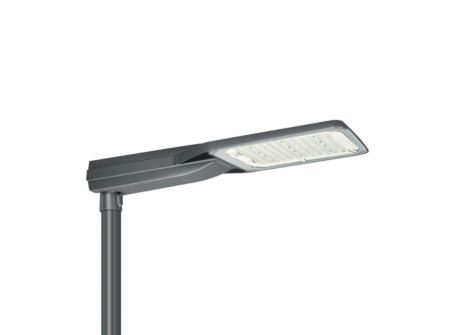

Full product name | BGP763 LED260-/740 I DX10 DGR 32-48
|
Material number (12NC) | 910925866250
|
Order product name | BGP763 LED260-/740 I DX10 DGR 32-48
|
Numerator - Packs per outer box | 1
|
Ingress protection code | IP66
[Dust penetration-protected, jet-proof] |
Surge Protection (Common/Differential) | Luminaire surge protection level until 6 kV differential mode and 8 kV common mode
|
Protection class IEC | Safety class I
|
CE mark | Yes
|
EU RoHS compliant | Yes
|
Flammability mark | -
|
Warranty period | 5 years
|
Sustainability rating | -
|
Photobiological risk | Photobiological risk group 0 @200mm to EN62778
|
Mech. impact protection code | IK09
[10 J] |
ENEC mark | ENEC mark
|
Constant light output | No
|
Driver/power unit/transformer | Power supply unit (On/Off)
|
Control interface | -
|
Dimmable | Yes
|
Light source replaceable | Yes
|
Light source engine type | LED
|
Remarks | * At extreme ambient temperatures the luminaire might automatically dim down to protect components
|
Lamp family code | LED260
[LED module 26000 lm] |
Driver included | Yes
|
Number of gear units | 2 units
|
Product family code | BGP763
[DigiStreet Large] |
Value ladder | Specification
|
Lighting Technology | LED
|
Overall width | 361
mm
|
Optic material | Acrylate
|
Housing Color | Dark gray
|
Mounting device | Spigot for diameter 32 to 48 mm
|
Optical cover/lens material | Glass
|
Optical cover/lens shape | Flat
|
Fixation material | Stainless steel
|
Housing Material | Aluminum die cast
|
Optical cover/lens finish | Clear
|
Effective projected area | 0.08
m²
|
Overall length | 1,011
mm
|
Dimensions (Height x Width x Depth) | 121 x 361 x 1011 mm
|
Reflector material | Polycarbonate
|
Overall height | 121
mm
|
Maximum dim level | Not applicable
|
Performance ambient temperature Tq | 25 °C
|
Initial chromaticity | (0.38. 0.38) SDCM <5
|
Init. Color Rendering Index Tolerance | +/-2
|
Power consumption tolerance | +/-10%
|
Luminous flux tolerance | +/-7%
|
Ambient temperature range | -40 to +50 °C
|
Standard tilt angle posttop | 0°
|
Correlated Color Temperature (Nom) | 4000
K
|
Standard tilt angle side entry | 0°
|
Luminous Efficacy (rated) (Nom) | 144
lm/W
|
Upward light output ratio | 0
|
Optical cover/lens type | Flat glass
|
Luminous Flux | 22,100
lumen
|
Light source color | 740 neutral white
|
Color rendering index (CRI) | 70
|
Luminaire light beam spread | 150° - 43° x 67°
|
Optic type outdoor | Distribution extra wide 10
|
