    • Smart Post-top G3-BGP161

      BGP161 LED2300/WW PSU 220-240V 7043 GM
      BGP161 LED2300/WW PSU 220-240V 7043 GM

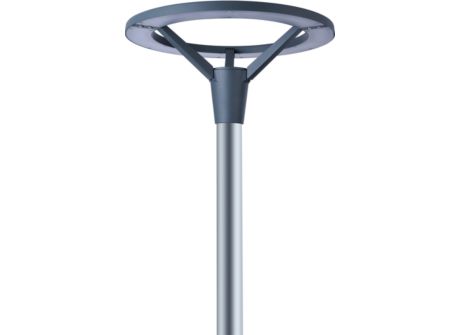

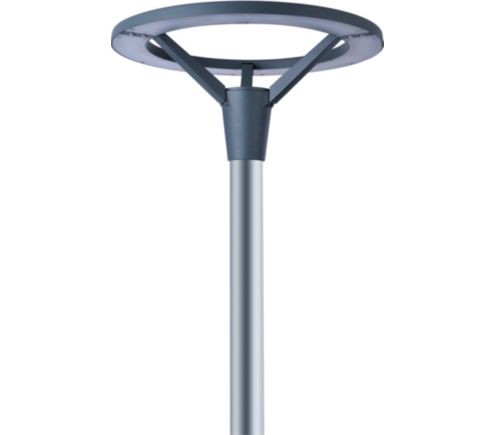

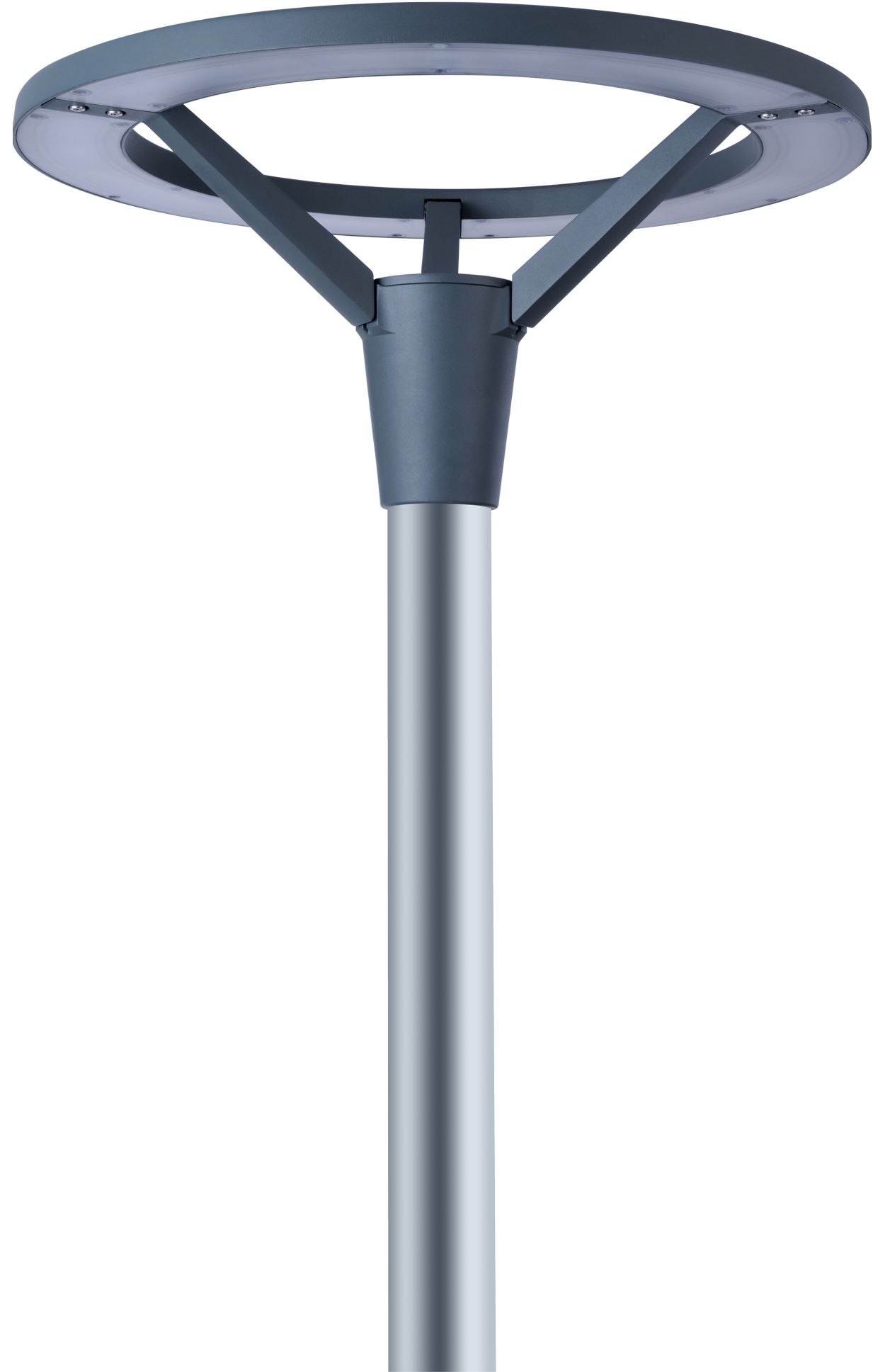

      Smart Post-top G3

      BGP161 LED2300/WW PSU 220-240V 7043 GM

      Downloads

      Spec Sheet
      Size:366.7 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Number of products on MCB of 16 A type B
    -
    Connection
    Flying leads/wires
    Input Frequency
    50 to 60 Hz
    Inrush time
    22.3 ms
    Power Consumption
    27 W
    Line Frequency
    50 to 60 Hz
    Input Voltage
    220 to 240 V
    Inrush current
    2.1 A
    Cable
    Cable 0.45 m without plug
    Power Factor (Fraction)
    0.9
    Product Data
    Order product name
    BGP161 LED2300/WW PSU 220-240V 7043 GM
    Numerator - Quantity Per Pack
    1
    Full product code
    911401834698
    Order code
    911401834698
    Numerator - Packs per outer box
    2
    Full product name
    BGP161 LED2300/WW PSU 220-240V 7043 GM
    Material number (12NC)
    911401834698
    Approval and Application
    Ingress protection code
    IP65  [Dust penetration-protected, jet-proof]
    Surge Protection (Common/Differential)
    4/2 kV
    Protection class IEC
    Safety class I
    ENEC mark
    -
    CE mark
    -
    EU RoHS compliant
    Yes
    Flammability mark
    For mounting on normally flammable surfaces
    Warranty period
    3 years
    Mech. impact protection code
    IK07  [2 J reinforced]
    Controls and Dimming
    Constant light output
    No
    Driver/power unit/transformer
    Power supply unit (ON/OFF)
    Control interface
    -
    Dimmable
    No
    General Information
    Light source replaceable
    Yes
    Light source engine type
    LED
    Lamp family code
    -
    Driver included
    Yes
    Number of gear units
    1 unit
    Mechanical and Housing
    Optic material
    Acrylate
    Mounting device
    Post-top for diameter 60 mm
    Housing Color
    Dark gray
    Optical cover/lens shape
    Flat
    Optical cover/lens material
    Acrylate
    Overall diameter
    578 mm
    Housing Material
    Aluminum die cast
    Overall height
    265 mm
    Optical cover/lens finish
    Frosted
    Fixation material
    Stainless steel
    Effective projected area
    0.11 m²
    Reflector material
    Acrylate
    Application Conditions
    Maximum dim level
    Not applicable
    Initial Performance (IEC Compliant)
    Initial chromaticity
    (0.43,0.40) SDCM ≤ 5
    Power consumption tolerance
    +/-10%
    Luminous flux tolerance
    +/-10%
    Temperature
    Ambient temperature range
    -40 to +50 °C
    Light Technical
    Standard tilt angle posttop
    -
    Correlated Color Temperature (Nom)
    3000 K
    Standard tilt angle side entry
    -
    Luminous Efficacy (rated) (Nom)
    85.19 lm/W
    Optical cover/lens type
    Acrylate cover and semi-matt high-reflective optic
    Upward light output ratio
    0
    Luminous Flux
    2,300 lumen
    Color rendering index (CRI)
    70
    Light source color
    Warm white
    Luminaire light beam spread
    -
    Optic type outdoor
    Symmetrical
    Installation Diagrams
     Smart Post-top G3 - 2300 lm - 27 W - 3000 K
    Smart Post-top G3 - 2300 lm - 27 W - 3000 K
