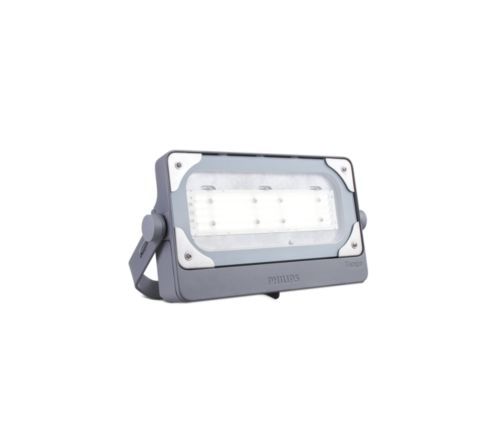

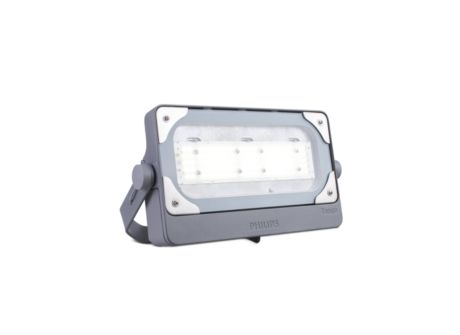

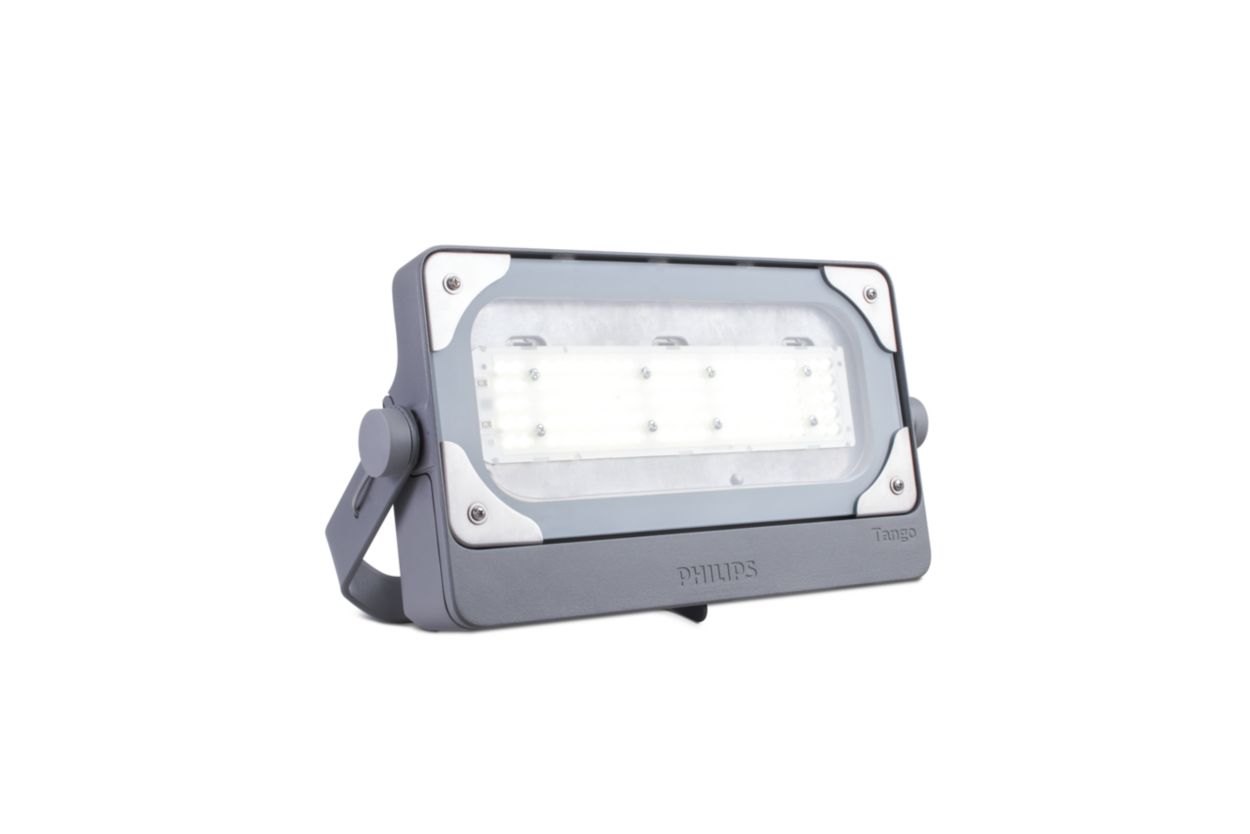

BVP491 LED136/NW 100W SWB FP DALI/CM

Specifications Show all

Operating and Electrical

Connection	Flying leads/wires
Input Frequency	50 to 60 Hz
Power Consumption	99.99999999999999 W
Cable	Cable 0.5 m without plug
Line Frequency	50 to 60 Hz
Input Voltage	220-240 V
Inrush current	53 A
Power Factor (Fraction)	0.95

Approval and Application

Ingress protection code	IP66  [Dust penetration-protected, jet-proof]
Protection class IEC	Safety class I
CE mark	CE mark
Flammability mark	For mounting on normally flammable surfaces
Mech. impact protection code	IK08  [5 J vandal-protected]

Product Data

Order product name	BVP491 LED136/NW 100W SWB FP DALI/CM
Numerator - Quantity Per Pack	1
Full product code	692234197835700
Full product name	BVP491 LED136/NW 100W SWB FP DALI/CM
Order code	911401660307
Numerator - Packs per outer box	1
EAN/UPC - Product	6922341978357
Material number (12NC)	911401660307
EAN/UPC - Case	6922341978357

Controls and Dimming

Control interface	depends on driver (1-10V, DALI…)
Dimmable	Yes

General Information

Driver included	Yes
Lighting Technology	LED

Mechanical and Housing

Overall width	386 mm
Housing Color	Gray
Optical cover/lens material	Polycarbonate
Effective projected area	0.08 m²
Housing Material	Aluminum Alloy
Overall height	84 mm
Dimensions (Height x Width x Depth)	84 x 386 x 266 mm
Overall length	266 mm

Initial Performance (IEC Compliant)

Initial chromaticity	7
Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-10%

Temperature

Ambient temperature range

-40 to +50 °C

Light Technical

Correlated Color Temperature (Nom)	4000 K
Luminous Efficacy (rated) (Nom)	140 lm/W
Optical cover/lens type	Glass
Luminous Flux	13,600 lumen
Color rendering index (CRI)	>70
Light source color	White
