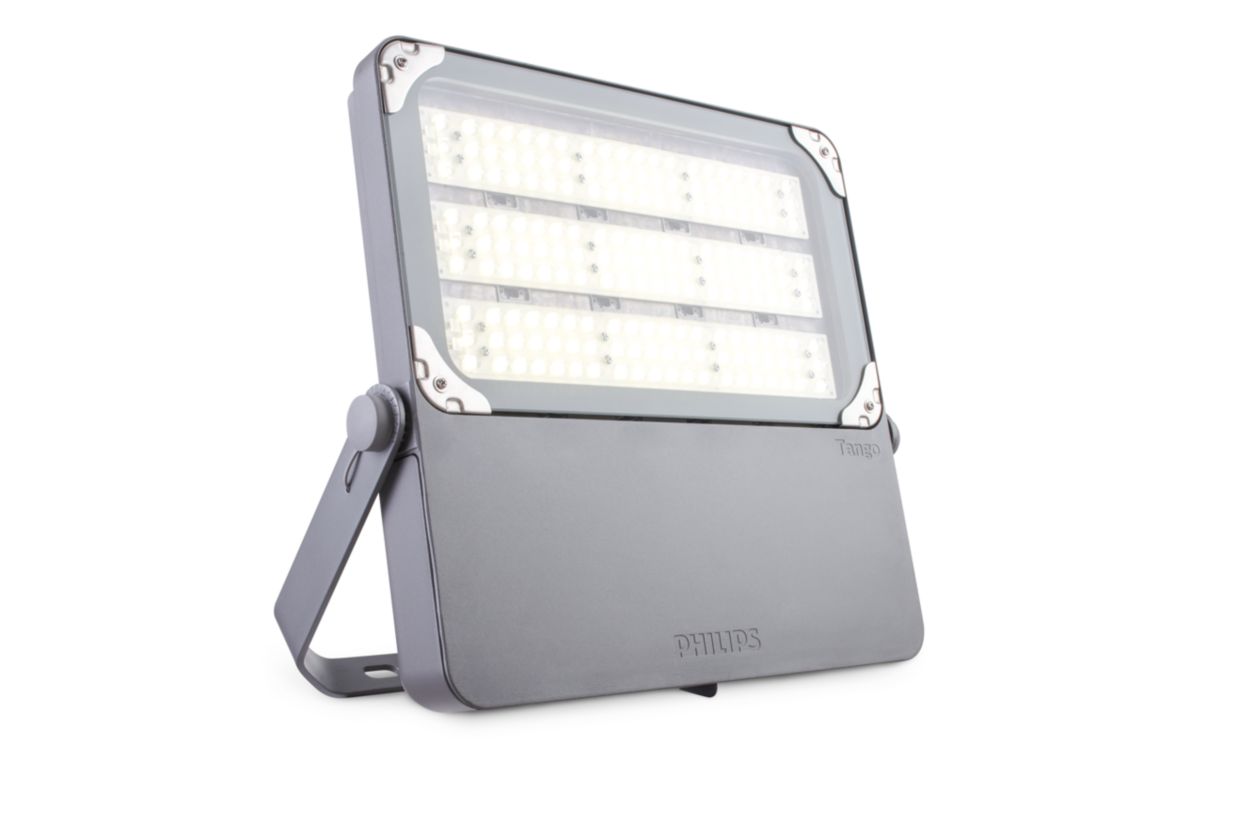

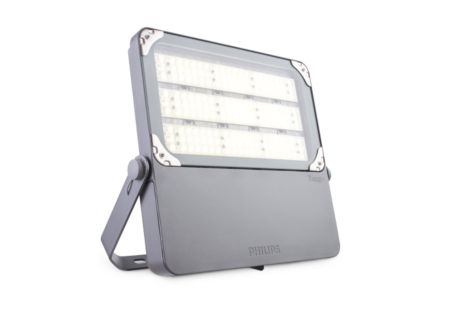

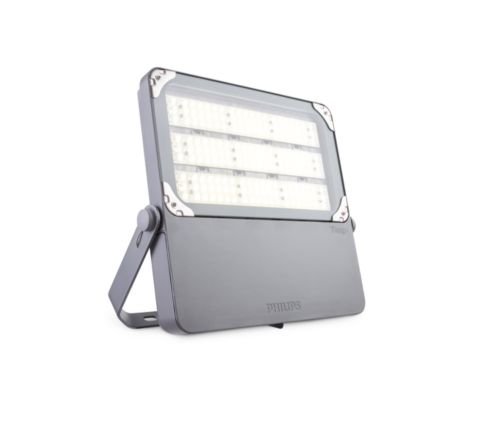

BVP493 LED485/WW 380W NB 1-10V P7

Specifications Show all

Operating and Electrical

Connection	Flying leads/wires
Input Frequency	50 to 60 Hz
Power Consumption	379.99999999999994 W
Cable	Cable 0.5 m without plug
Line Frequency	50 to 60 Hz
Input Voltage	220-240 V
Inrush current	138 A
Power Factor (Fraction)	0.95

Product Data

Order product name	BVP493 LED485/WW 380W NB 1-10V P7
Numerator - Quantity Per Pack	1
Full product code	692234197897500
Full product name	BVP493 LED485/WW 380W NB 1-10V P7
Order code	911401666507
Numerator - Packs per outer box	1
Material number (12NC)	911401666507
EAN/UPC - Case	6922341978975

Approval and Application

Ingress protection code	IP66  [Dust penetration-protected, jet-proof]
Protection class IEC	Safety class I
CE mark	CE mark
Flammability mark	For mounting on normally flammable surfaces
Mech. impact protection code	IK08  [5 J vandal-protected]

Controls and Dimming

Dimmable	Yes
Control interface	depends on driver (1-10V, DALI…)

General Information

Driver included	Yes
Lighting Technology	LED

Mechanical and Housing

Overall width	681 mm
Housing Color	Gray
Optical cover/lens material	Polycarbonate
Effective projected area	0.25 m²
Overall height	223 mm
Housing Material	Aluminum Alloy
Dimensions (Height x Width x Depth)	223 x 681 x 523 mm
Overall length	523 mm

Initial Performance (IEC Compliant)

Initial chromaticity	7
Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-10%

Temperature

Ambient temperature range

-40 to +50 °C

Light Technical

Correlated Color Temperature (Nom)	3000 K
Luminous Efficacy (rated) (Nom)	140 lm/W
Optical cover/lens type	Glass
Luminous Flux	48,500 lumen
Light source color	Warm white
Color rendering index (CRI)	>70
