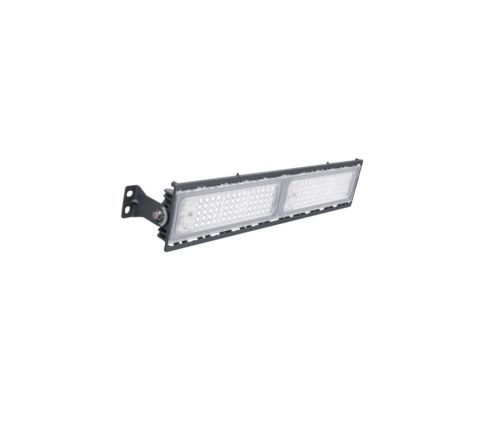

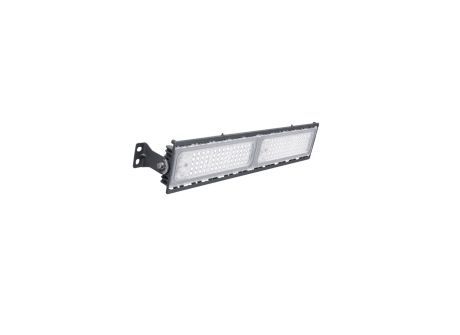

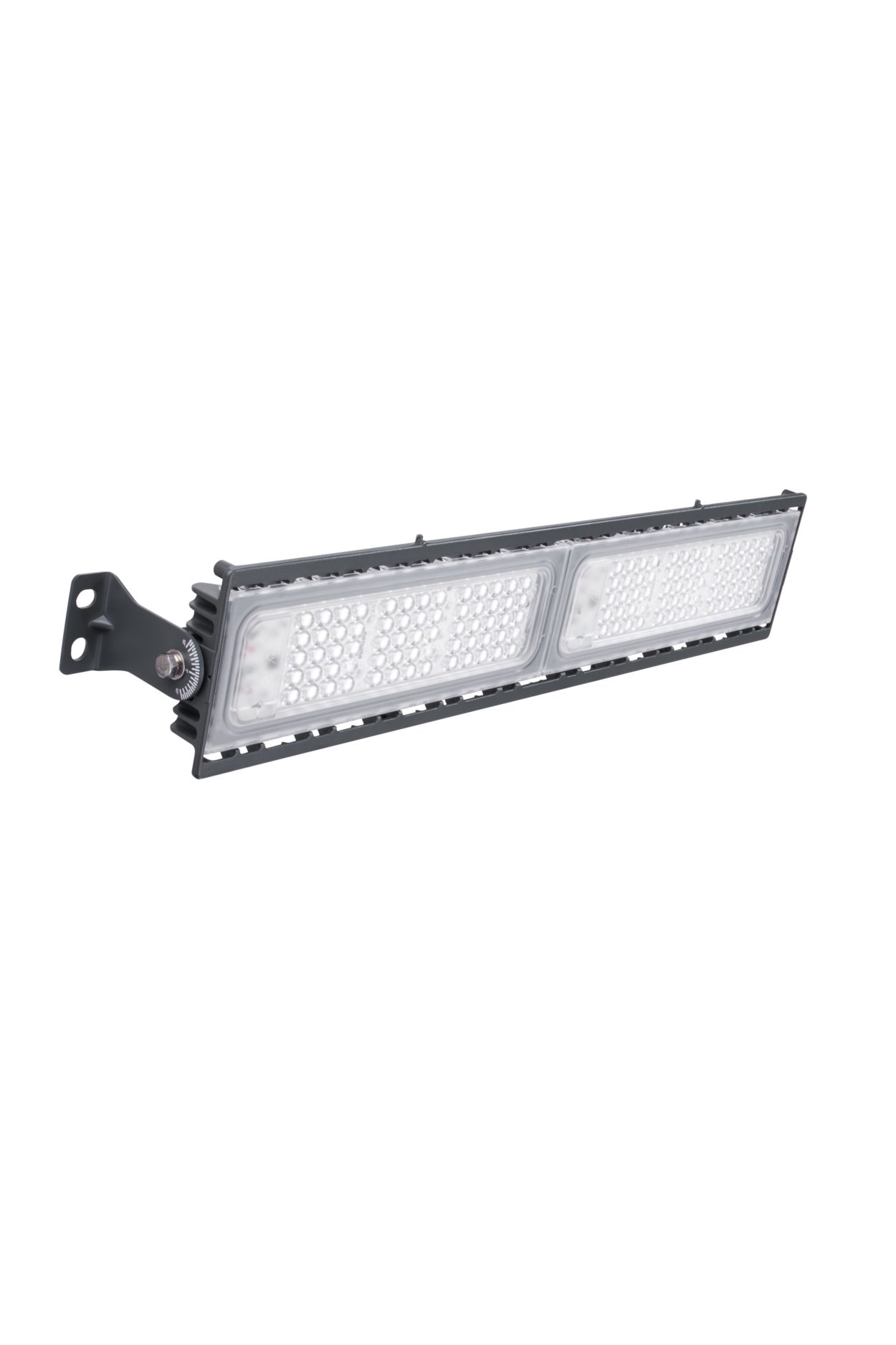

BWP352 LED104/NW 70W 220-240V DM2 G2

Specifications Show all

Operating and Electrical

Connection	Flying leads/wires
Input Frequency	50 or 60 Hz
Power Consumption	70 W
Cable	Cable 0.5 m without plug
Line Frequency	50 or 60 Hz
Input Voltage	220 to 240 V
Power Factor (Fraction)	0.9

Product Data

Order product name	BWP352 LED104/NW 70W 220-240V DM2 G2
Numerator - Quantity Per Pack	1
Full product name	BWP352 LED104/NW 70W 220-240V DM2 G2
Order code	911401630207
Numerator - Packs per outer box	2
Material number (12NC)	911401630207

Approval and Application

Ingress protection code	IP66  [Dust penetration-protected, jet-proof]
Protection class IEC	Safety class I
CE mark	CE mark
Mech. impact protection code	IK08  [6 J]

Controls and Dimming

Control interface	Analog
Dimmable	Yes

General Information

Driver included

Yes

Mechanical and Housing

Overall width	123 mm
Housing Color	Dark gray
Optical cover/lens material	Polycarbonate
Overall length	675 mm
Overall height	91 mm
Housing Material	Aluminum die cast
Dimensions (Height x Width x Depth)	91 x 123 x 675 mm

Initial Performance (IEC Compliant)

Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-10%

Temperature

Ambient temperature range

-40 to +55 °C

Light Technical

Correlated Color Temperature (Nom)	4000 K
Luminous Efficacy (rated) (Nom)	140 lm/W
Optical cover/lens type	Polycarbonate micro lens optic
Luminous Flux	10,400 lumen
Light source color	740 neutral white
Color rendering index (CRI)	>70
