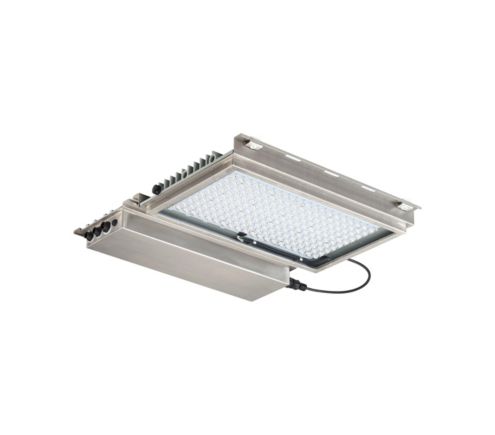

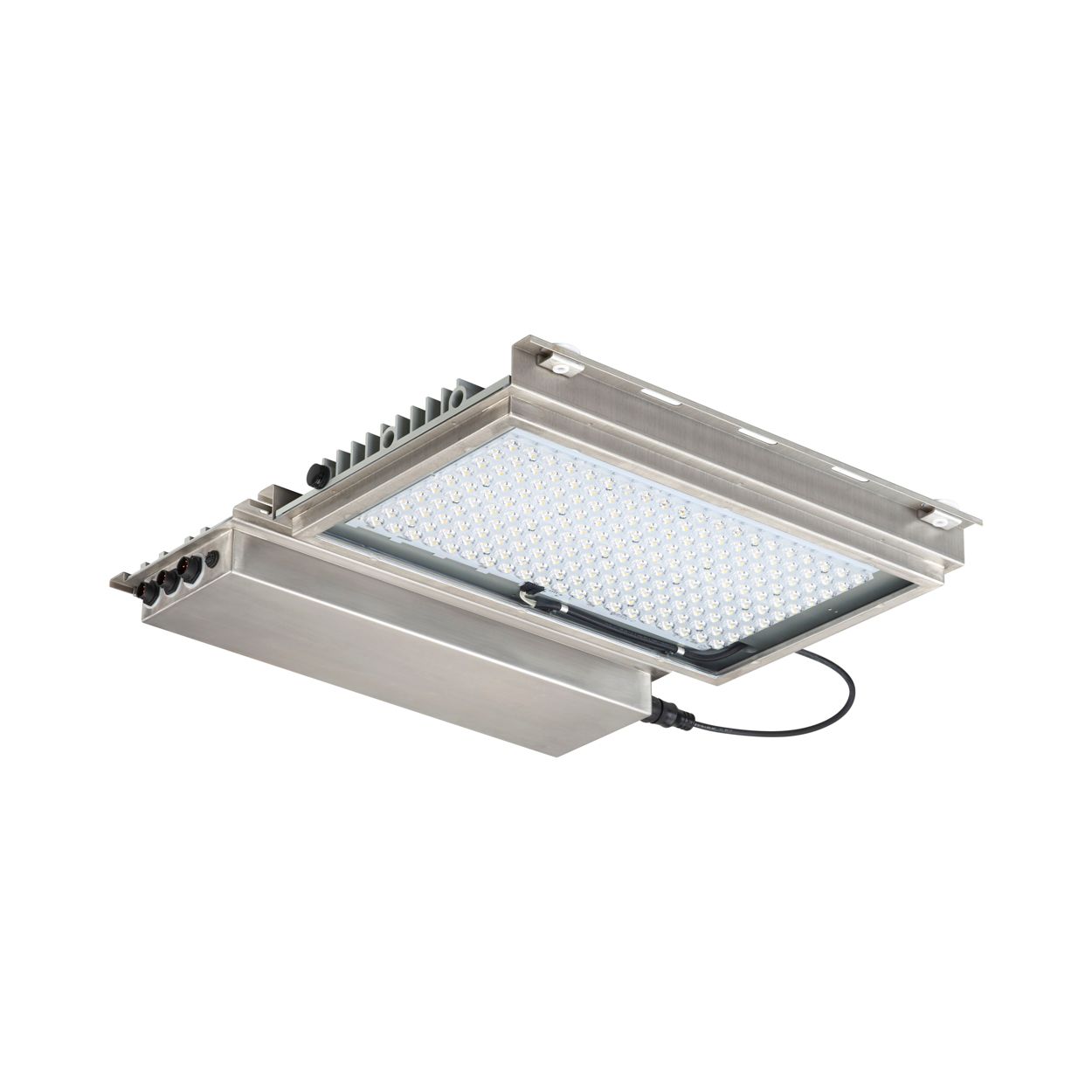

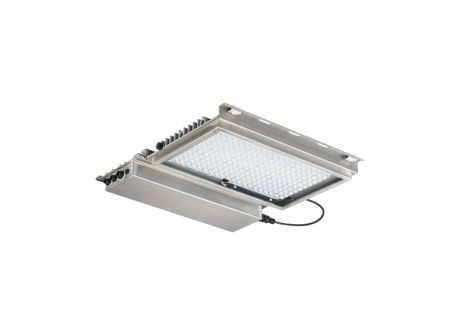

BGB300 LED700-4S/740 PSD BV DSM11 D9 MDD

Specifications Show all

Operating and Electrical

Number of products on MCB of 16 A type B	2
Connection	Mains outlet socket and 2 DALI sockets
Inrush time	0.3 ms
Power Consumption	415 W
Line Frequency	50 to 60 Hz
Input Voltage	220 to 240 V
Inrush current	53 A
Cable	-
Input Frequency	50 to 60 Hz
Power Factor (Fraction)	0.99

Over Time Performance (IEC Compliant)

Control gear failure rate at median useful life 100000 h	10 %
Lumen maintenance at median useful life* 100000 h	L95

Product Data

Numerator - Quantity Per Pack	1
Full product code	871951423918000
Order code	912300060083
EAN/UPC - Case	8719514239180
Full product name	BGB300 LED700-4S/740 PSD BV DSM11 D9 MDD
Material number (12NC)	912300060083
Order product name	BGB300 LED700-4S/740 PSD BV DSM11 D9 MDD
Numerator - Packs per outer box	1

Approval and Application

Ingress protection code	IP66  [Dust penetration-protected, jet-proof]
Surge Protection (Common/Differential)	Philips standard surge protection level
Protection class IEC	Safety class I
CE mark	Yes
EU RoHS compliant	Yes
Warranty period	5 years
Flammability mark	For mounting on normally flammable surfaces
Sustainability rating	-
Mech. impact protection code	IK08  [5 J vandal-protected]
ENEC mark	ENEC mark

Controls and Dimming

Constant light output	No
Driver/power unit/transformer	Power supply unit with DALI interface
Control interface	DALI
Dimmable	Yes

General Information

Light source replaceable	No
Lamp family code	LED700  [LED module 70000 lm]
Light source engine type	LED
Driver included	Yes
Number of gear units	3 units
Product family code	BGB300  [FLOWSTAR LARGE]
Lighting Technology	LED

Mechanical and Housing

Overall width	620 mm
Optic material	Polycarbonate
Mounting device	Suspension set simple, standard
Housing Color	Steel
Optical cover/lens shape	Flat
Optical cover/lens material	Glass
Housing Material	Stainless steel
Fixation material	Stainless steel
Optical cover/lens finish	Clear
Effective projected area	0.4495 m²
Overall length	725 mm
Dimensions (Height x Width x Depth)	67 x 620 x 725 mm
Reflector material	-
Overall height	66.5 mm

Application Conditions

Maximum dim level	10%
Performance ambient temperature Tq	25 °C

Initial Performance (IEC Compliant)

Initial chromaticity	(0.433. 0.403) SDCM <3
Init. Color Rendering Index Tolerance	+/-2
Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-7%

Temperature

Ambient temperature range

-30 to +40 °C

Light Technical

Standard tilt angle posttop	0°
Correlated Color Temperature (Nom)	4000 K
Luminous Efficacy (rated) (Nom)	132 lm/W
Standard tilt angle side entry	0°
Optical cover/lens type	Flat glass
Upward light output ratio	0
Luminous Flux	54,780 lumen
Light source color	740 neutral white
Color rendering index (CRI)	>70
Luminaire light beam spread	148° x 148°
Optic type outdoor	Distribution symmetrical medium 11
