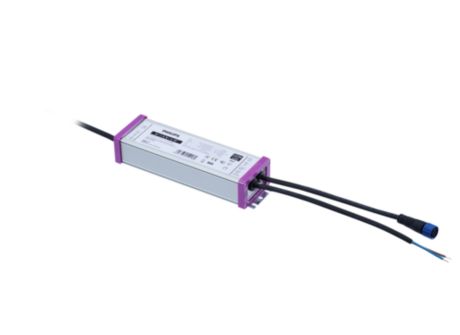

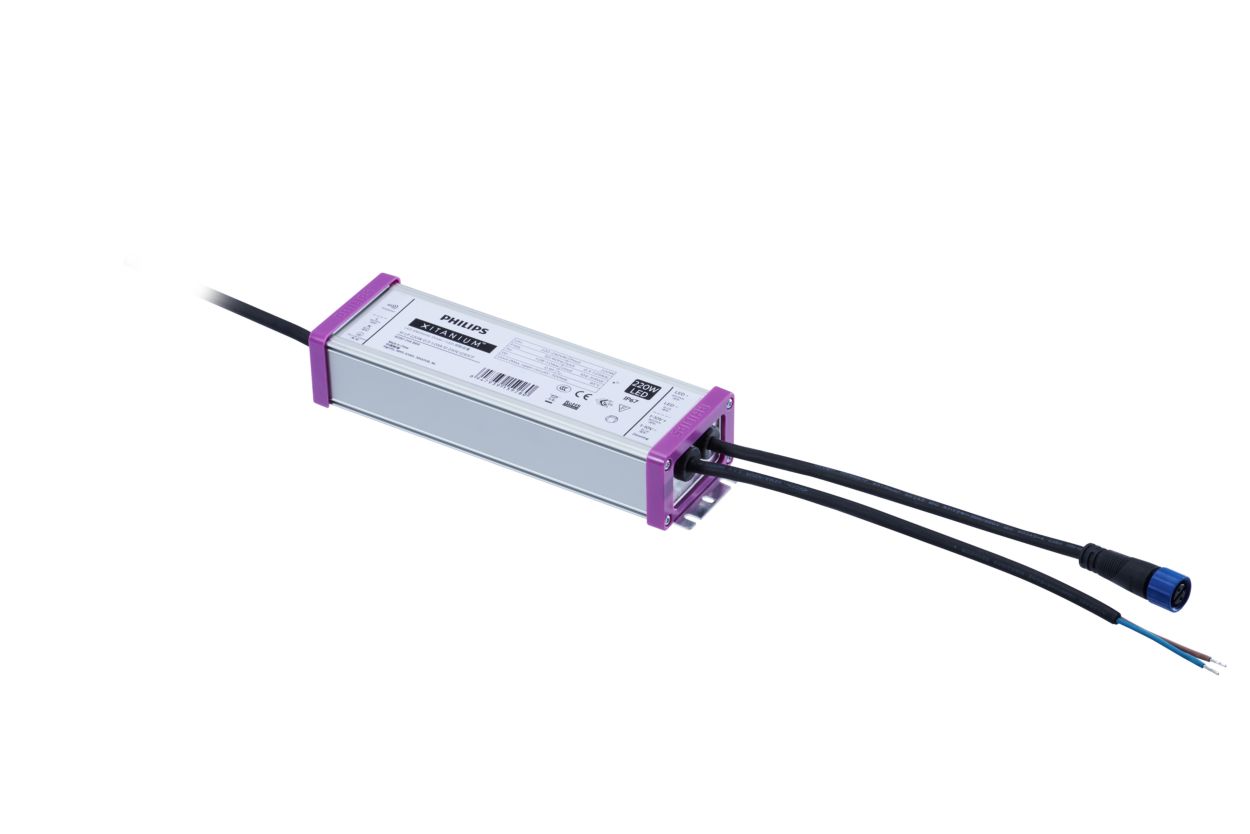

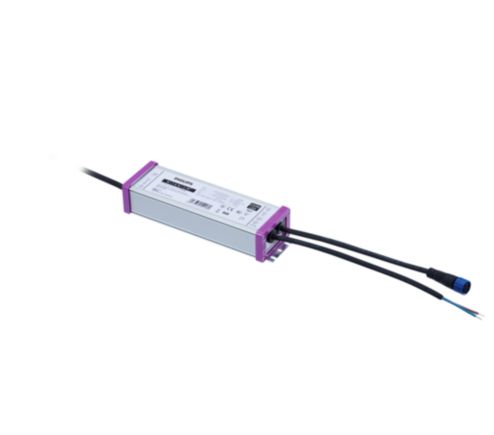

EGP472 220/30W 4/7 210W

Specifications Show all

Operating and Electrical

Input Frequency	50 or 60 Hz
Line Frequency	50 or 60 Hz
Input Voltage	220 to 240 V

Product Data

Order product name	EGP472 220/30W 4/7 210W
Numerator - Quantity Per Pack	1
Full product code	911401682005
Full product name	EGP472 220/30W 4/7 210W
Order code	911401682005
Numerator - Packs per outer box	2
Material number (12NC)	911401682005

Approval and Application

Ingress protection code	IP67  [Dust penetration-protected, watertight]
Protection class IEC	Safety class I
CE mark	CE mark

General Information

Accessory color

Aluminum

Mechanical and Housing

Material	Aluminum
Overall width	69 mm
Overall length	230 mm
Overall height	45 mm
Dimensions (Height x Width x Depth)	45 x 69 x 230 mm
