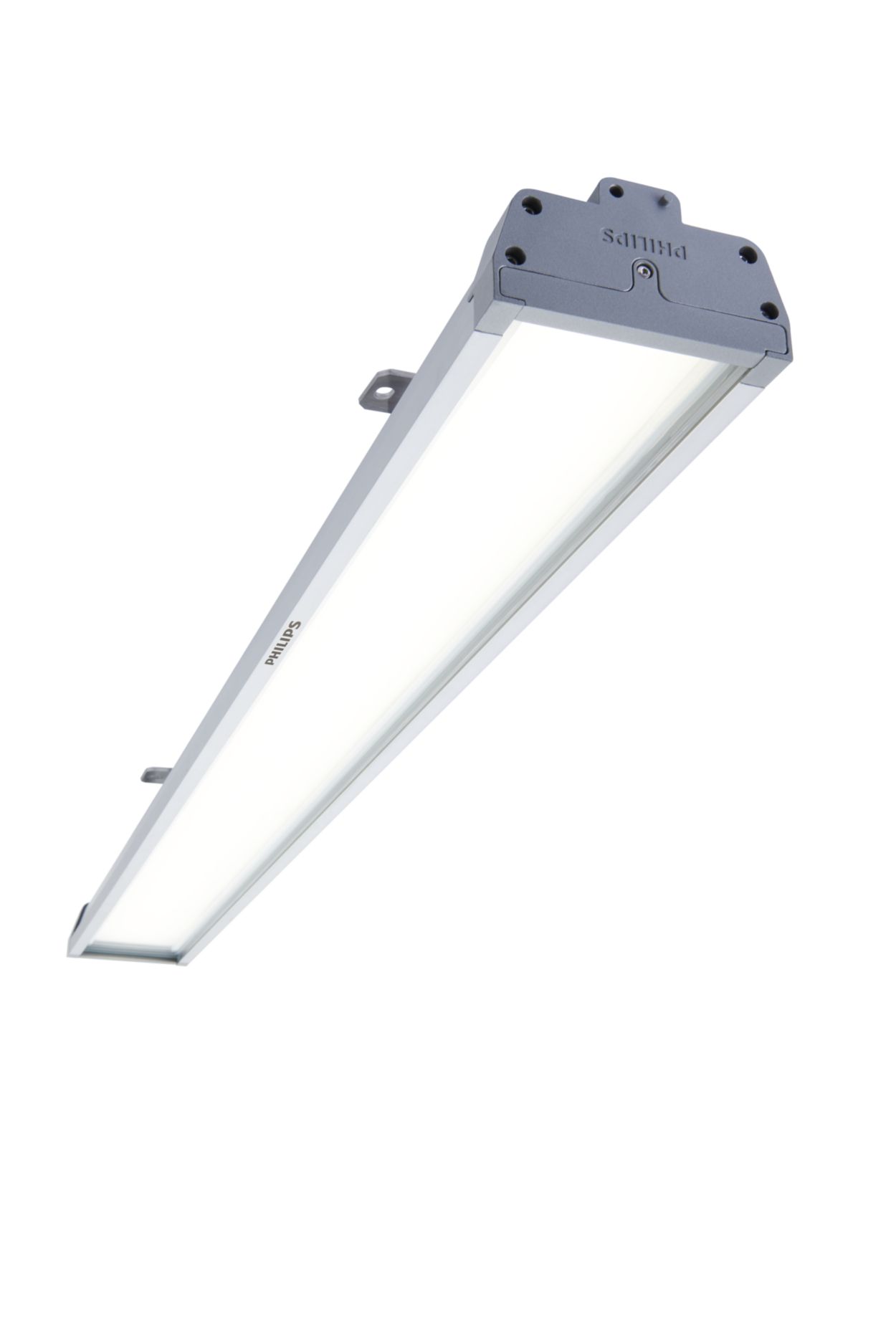

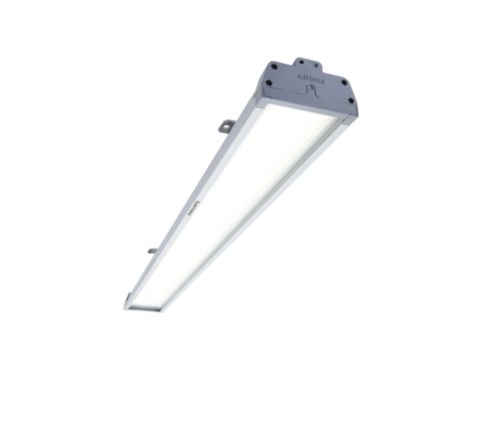

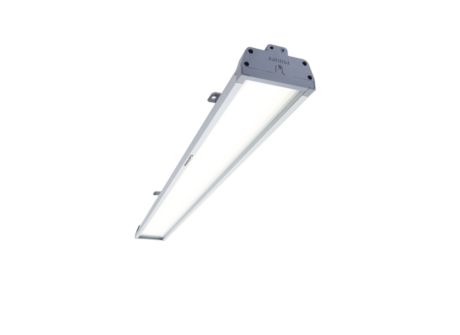

BGP472 LED12/36 NW 10/30W

Specifications Show all

Operating and Electrical

Connection	Connection unit 2-pole
Input Frequency	- Hz
Initial CLO power consumption	- W
Power Consumption	30 W
Line Frequency	- Hz
Input Voltage	31-37 DC V
Power Factor (Fraction)	0.9
Average CLO power consumption	- W
Cable	Cable 0.3m with plug Wieland/Adels compatible 2-pole
End CLO power consumption	- W

Over Time Performance (IEC Compliant)

Useful life L80B10

50,000 hour(s)

Approval and Application

Ingress protection code	IP66  [Dust penetration-protected, jet-proof]
Surge Protection (Common/Differential)	Luminaire surge protection level until 4 kV differential mode and 4 kV common mode
Protection class IEC	Safety class I
CE mark	-
EU RoHS compliant	Yes
Mech. impact protection code	IK05  [0.7 J]

Product Data

Order product name	BGP472 LED12/36 NW 10/30W
Numerator - Quantity Per Pack	1
Full product code	911401682605
Order code	911401682605
Numerator - Packs per outer box	2
Material number (12NC)	911401682605
Full product name	BGP472 LED12/36 NW 10/30W

Controls and Dimming

Constant light output	No
Control interface	-
Dimmable	No

General Information

Light source replaceable	No
Light source engine type	LED
Driver included	No

Mechanical and Housing

Overall width	120 mm
Optic material	Polycarbonate
Mounting device	Mounting bracket adjustable
Housing Color	Aluminum
Optical cover/lens shape	Flat
Optical cover/lens material	Glass
Overall height	120 mm
Housing Material	Aluminum extruded
Dimensions (Height x Width x Depth)	120 x 120 x 1184 mm
Optical cover/lens finish	Clear
Overall length	1,184 mm

Application Conditions

Maximum dim level

Not applicable

Initial Performance (IEC Compliant)

Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-10%

Temperature

Ambient temperature range

-40 to +55 °C

Light Technical

Standard tilt angle posttop	-
Correlated Color Temperature (Nom)	4000 K
Luminous Efficacy (rated) (Nom)	120 lm/W
Optical cover/lens type	Flat glass
Luminous Flux	3,600 lumen
Light source color	840 neutral white
Color rendering index (CRI)	>80
Luminaire light beam spread	90° x 100°
Optic type outdoor	Wide beam large
