| Connection | -
|
| Number of products on MCB of 16 A type B | 11
|
| Power Consumption | 53
W
|
| Line Frequency | 50 to 60
Hz
|
| Input Voltage | 220-240
V
|
| Inrush current | 46
A
|
| Cable | -
|
| Input Frequency | 50 to 60
Hz
|
| Inrush time | 0.25
ms
|
| Power Factor (Fraction) | 0.98
|
| Driver failure rate at 5000 h | 0.5
%
|
| Control gear failure rate at median useful life 100000 h | 10
%
|
| Lumen maintenance at median useful life* 100000 h | L97
|
| Full product code | 871869948292300
|
| Order code | 912300024110
|

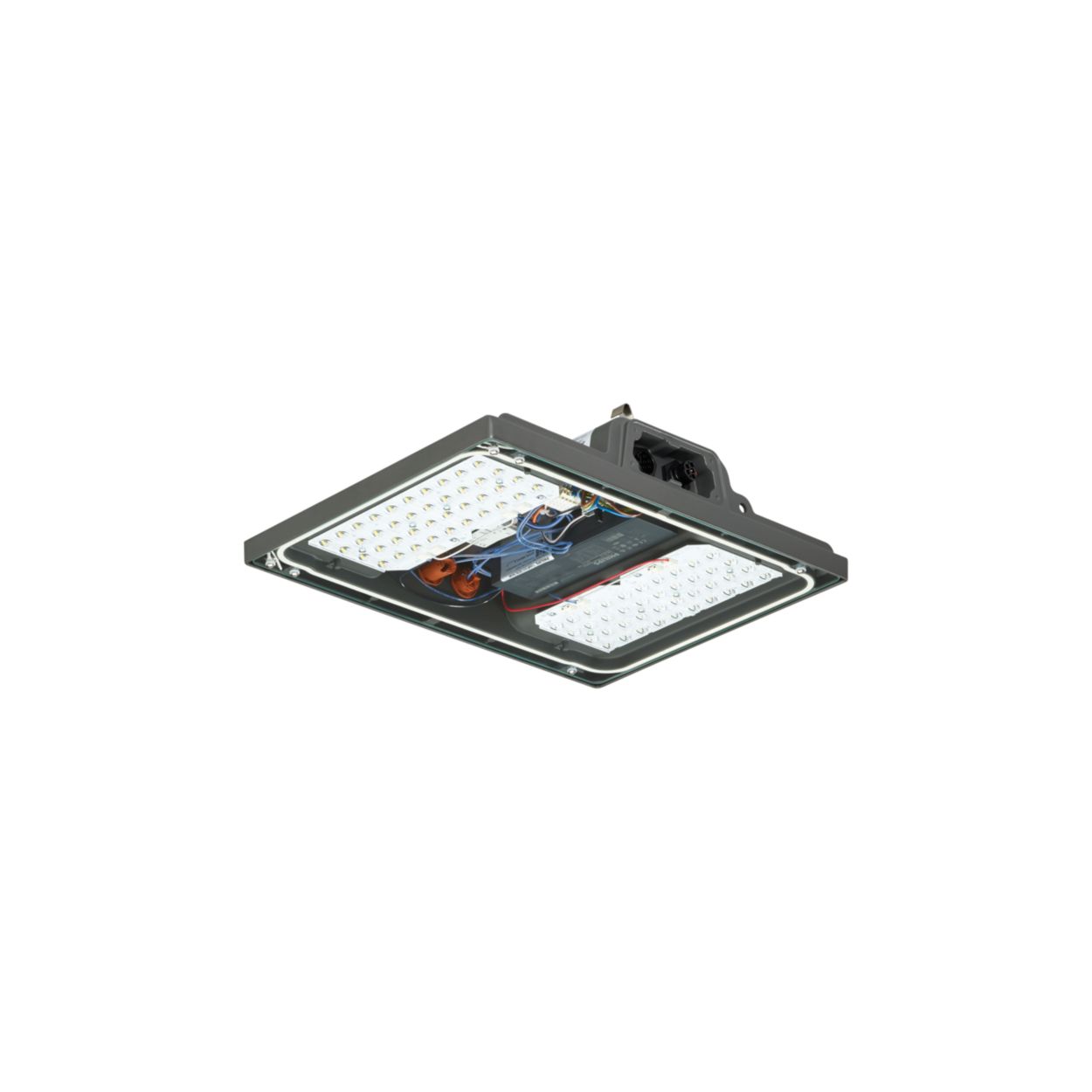

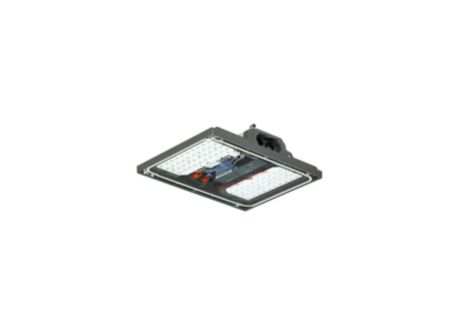

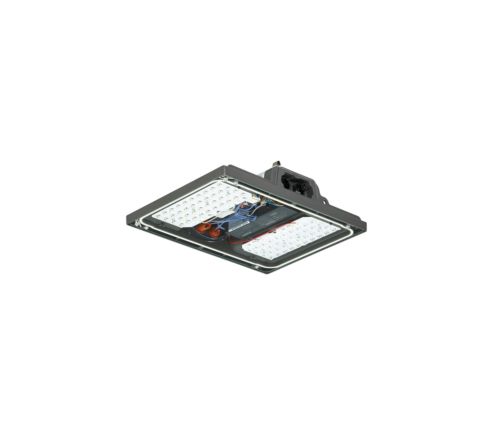

| Full product name | BGP235 LED90-4S/740 DSM11 D9 MIO-CIO MBQ
|
| Material number (12NC) | 912300024110
|
| EAN/UPC - Case | 8718699482923
|
| Order product name | BGP235 LED90-4S/740 DSM11 D9 MIO-CIO MBQ
|
| Numerator - Quantity Per Pack | 1
|
| Numerator - Packs per outer box | 1
|
| Ingress protection code | IP66
[Dust penetration-protected, jet-proof] |
| Surge Protection (Common/Differential) | Luminaire surge protection level until 6 kV differential mode and 6 kV common mode
|
| Protection class IEC | Safety class I
|
| CE mark | Yes
|
| EU RoHS compliant | Yes
|
| Flammability mark | For mounting on normally flammable surfaces
|
| Warranty period | 5 years
|
| Sustainability rating | -
|
| Mech. impact protection code | IK09
[10 J] |
| ENEC mark | ENEC mark
|
| Constant light output | No
|
| Driver/power unit/transformer | Power supply unit with DALI interface
|
| Control interface | DALI
|
| Dimmable | Yes
|
| Light source replaceable | Yes
|
| Lamp family code | LED90
[LED module 9000 lm] |
| Light source engine type | LED
|
| Driver included | Yes
|
| Service tag | Yes
|
| Number of gear units | 1 unit
|
| Product family code | BGP235
[TubePoint GEN2 Small] |
| Value ladder | Specification
|
| Lighting Technology | LED
|
| Overall width | 485.5
mm
|
| Optic material | Polycarbonate
|
| Housing Color | Dark gray
|
| Mounting device | Mounting bracket quick-release, medium
|
| Optical cover/lens material | Glass
|
| Optical cover/lens shape | Flat
|
| Fixation material | Stainless steel
|
| Housing Material | Aluminum die cast
|
| Optical cover/lens finish | Clear
|
| Effective projected area | 0.18
m²
|
| Overall length | 363.5
mm
|
| Dimensions (Height x Width x Depth) | 90 x 486 x 364 mm
|
| Reflector material | -
|
| Overall height | 89.5
mm
|
| Maximum dim level | 10%
|
| Performance ambient temperature Tq | 25 °C
|
| Initial chromaticity | (0.3818, 0,3796) SDCM<3
|
| Init. Color Rendering Index Tolerance | +/-2
|
| Power consumption tolerance | +/-10%
|
| Luminous flux tolerance | +/-7%
|
| Ambient temperature range | -30 to +50 °C
|
| Number of light sources | 28
|
| Standard tilt angle posttop | -
|
| Correlated Color Temperature (Nom) | 4000
K
|
| Luminous Efficacy (rated) (Nom) | 141
lm/W
|
| Optical cover/lens type | Flat glass
|
| Upward light output ratio | 0
|
| Luminous Flux | 7,470
lumen
|
| Light source color | 740 neutral white
|
| Color rendering index (CRI) | >70
|
| Luminaire light beam spread | 101° x 158°
|
| Optic type outdoor | Distribution symmetrical medium 11
|
| Standard tilt angle side entry | 0°
|
