| Number of products on MCB of 16 A type B | 26
|
| Connection | External connector
|
| Power Consumption | 33
W
|
| Cable | Cable 1.0 m with plug Wieland/Adels compatible 2-pole
|
| Line Frequency | 50 to 60
Hz
|
| Input Voltage | 220-240
V
|
| Inrush current | 21
A
|
| Input Frequency | 50 to 60
Hz
|
| Inrush time | 0.225
ms
|
| Power Factor (Fraction) | 0.98
|
| Control gear failure rate at median useful life 100000 h | 10
%
|
| Lumen maintenance at median useful life* 100000 h | L97
|
| Numerator - Quantity Per Pack | 1
|
| Full product code | 871869911679800
|
| Order code | 912300023849
|
| Material number (12NC) | 912300023849
|
| EAN/UPC - Case | 8718699116798
|

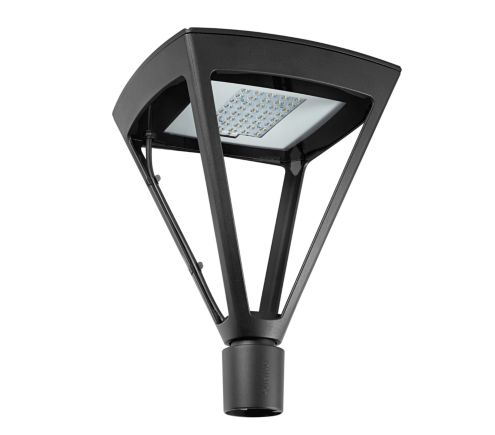

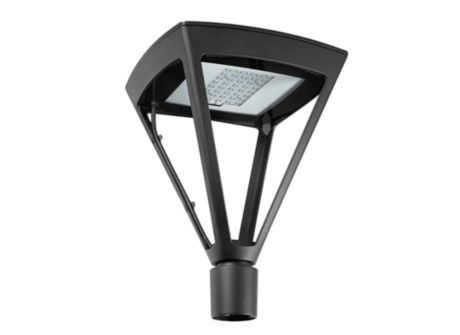

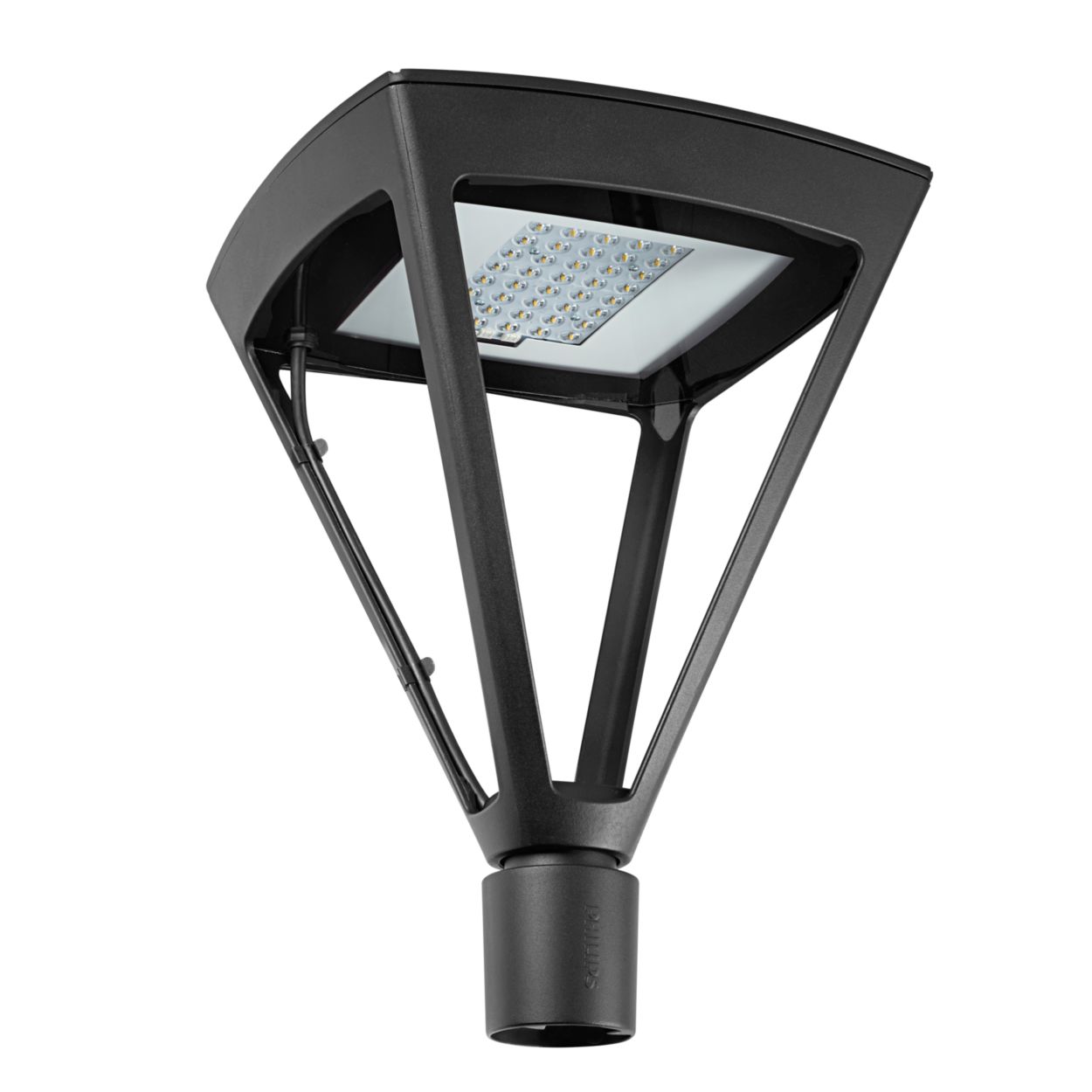

| Full product name | BDP794 LED53-4S/740 PSU II DS50 MK-WH GF
|
| Order product name | BDP794 LED53-4S/740 PSU II DS50 MK-WH GF
|
| Numerator - Packs per outer box | 1
|
| Ingress protection code | IP66
[Dust penetration-protected, jet-proof] |
| Surge Protection (Common/Differential) | Luminaire surge protection level until 6 kV differential mode and 8 kV common mode
|
| Protection class IEC | Safety class II
|
| CE mark | Yes
|
| Photobiological risk specification | 4
m
|
| EU RoHS compliant | Yes
|
| Flammability mark | -
|
| Warranty period | 5 years
|
| Sustainability rating | -
|
| Photobiological risk | Photobiological risk group 1 @200mm to EN62778
|
| Mech. impact protection code | IK08
[5 J vandal-protected] |
| ENEC mark | ENEC mark
|
| Constant light output | No
|
| Driver/power unit/transformer | Power supply unit (ON/OFF)
|
| Control interface | -
|
| Dimmable | No
|
| Light source replaceable | No
|
|
| Remarks | *-Per Lighting Europe guidance paper “Evaluating performance of LED based luminaires - January 2018”: statistically there is no relevant difference in lumen maintenance between B50 and for example B10. Therefore, the median useful life (B50) value also represents the B10 value.
|
* At extreme ambient temperatures the luminaire might automatically dim down to protect components
|
| Light source engine type | LED
|
|
| Lamp family code | LED53
[LED module 5300 lm] |
|
| Driver included | Yes
|
|
| Number of gear units | 1 unit
|
|
| Product family code | BDP794
[ClassicStreet Top] |
|
| Lighting Technology | LED
|
| Overall width | 428
mm
|
| Optic material | Polymethyl methacrylate
|
| Mounting device | Post-top for diameter 60 mm
|
| Housing Color | Black
|
| Optical cover/lens shape | Flat
|
| Optical cover/lens material | Glass
|
| Optical cover/lens finish | Frosted
|
| Fixation material | Aluminum
|
| Housing Material | Aluminum
|
| Effective projected area | 0.15
m²
|
| Overall length | 428
mm
|
| Dimensions (Height x Width x Depth) | 586 x 428 x 428 mm
|
| Reflector material | -
|
| Overall height | 586
mm
|
| Maximum dim level | Not applicable
|
| Performance ambient temperature Tq | 25 °C
|
| Initial chromaticity | (0.380, 0.380) SDCM <5
|
| Init. Color Rendering Index Tolerance | +/-2
|
| Power consumption tolerance | +/-10%
|
| Luminous flux tolerance | +/-7%
|
| Ambient temperature range | -40 to +50 °C
|
| Number of light sources | 20
|
| Standard tilt angle posttop | -
|
| Correlated Color Temperature (Nom) | 4000
K
|
| Luminous Efficacy (rated) (Nom) | 101
lm/W
|
| Optical cover/lens type | Glass frosted
|
| Upward light output ratio | 0.03
|
| Luminous Flux | 3,348
lumen
|
| Color rendering index (CRI) | 70
|
| Light source color | 740 neutral white
|
| Luminaire light beam spread | 152° x 155°
|
| Optic type outdoor | Distribution symmetrical 50
|
| Standard tilt angle side entry | -
|
