| Number of products on MCB of 16 A type B | 10
|
| Connection | Screw connection block 5-pole
|
| Initial CLO power consumption | 26
W
|
| Power Consumption | 27
W
|
| Average CLO power consumption | 26.5
W
|
| Line Frequency | 50 to 60
Hz
|
| Input Voltage | 220-240
V
|
| Inrush current | 45
A
|
| Cable | -
|
| Input Frequency | 50 to 60
Hz
|
| Inrush time | 0.285
ms
|
| Power Factor (Fraction) | 0.97
|
| End CLO power consumption | 27
W
|

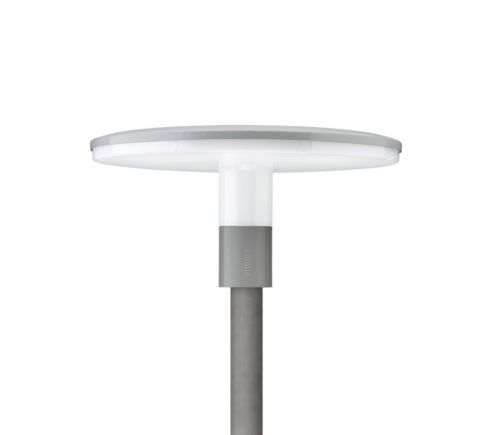

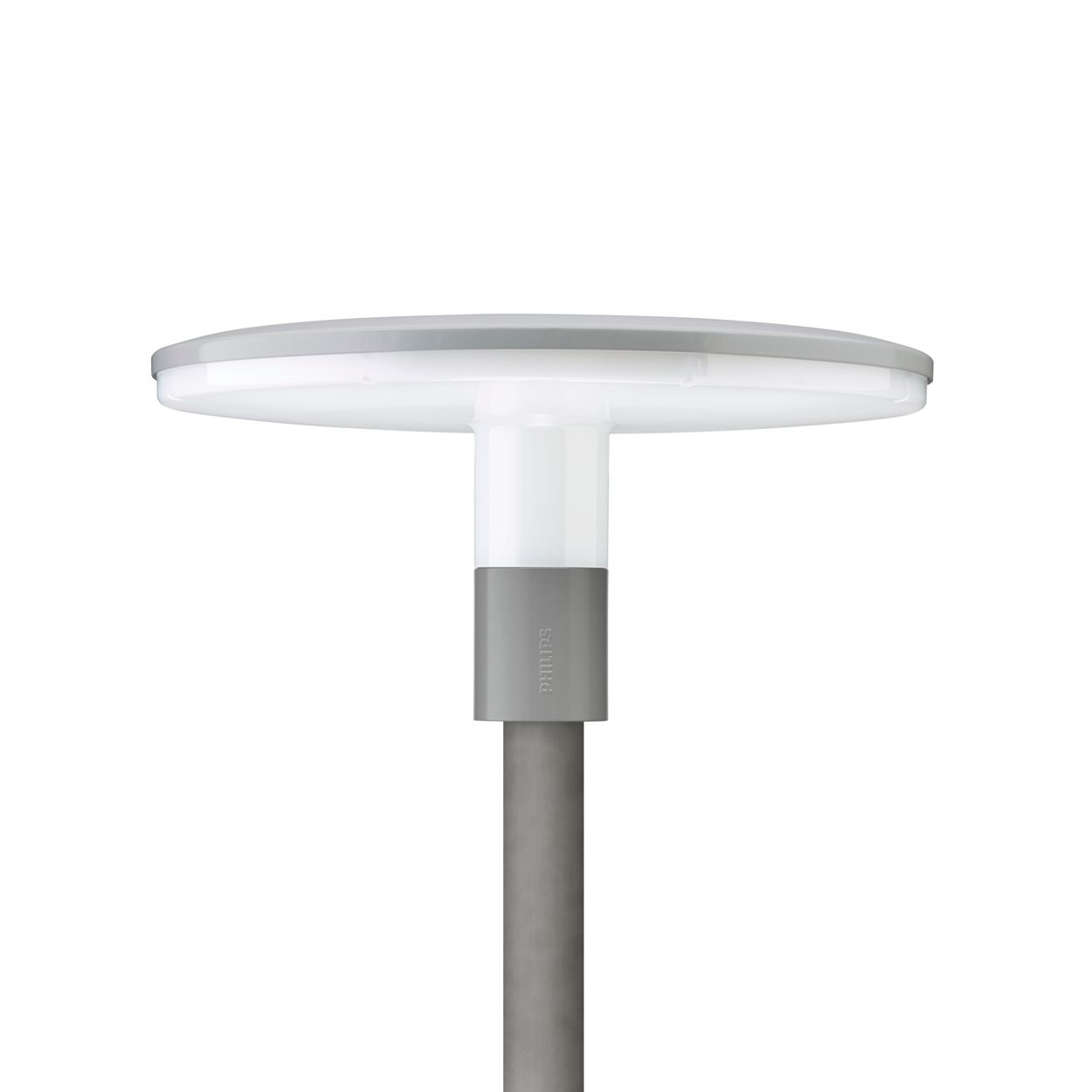

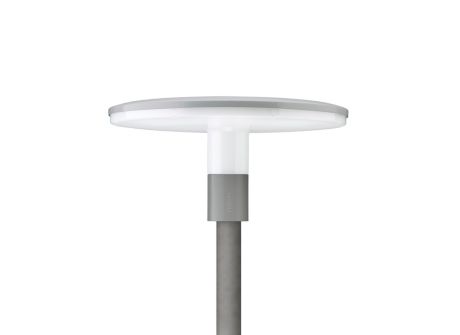

| Full product name | BDP104 LED40/830 II DS PCF SI CLO-LS-8 6
|
| Order code | 910500991025
|
| Material number (12NC) | 910500991025
|
| EAN/UPC - Case | 8718291906247
|
| Order product name | BDP104 LED40/830 II DS PCF SI CLO-LS-8 6
|
| Numerator - Quantity Per Pack | 1
|
| Full product code | 871829190624700
|
| Numerator - Packs per outer box | 1
|
| Driver failure rate at 5000 h | 0.5
%
|
| Control gear failure rate at median useful life 100000 h | 10
%
|
| Lumen maintenance at median useful life* 100000 h | 94
|
| Ingress protection code | IP66
[Dust penetration-protected, jet-proof] |
| Surge Protection (Common/Differential) | Luminaire surge protection level until 6 kV differential mode and 6 kV common mode
|
| Protection class IEC | Safety class II
|
| CE mark | Yes
|
| EU RoHS compliant | Yes
|
| Flammability mark | -
|
| Warranty period | 5 years
|
| Sustainability rating | -
|
| Mech. impact protection code | IK10
[20 J vandal-resistant] |
| Glow-wire test | Temperature 650 °C, duration 5 s
|
| ENEC mark | ENEC mark
|
| Constant light output | Yes
|
| Driver/power unit/transformer | Power supply unit with DynaDimmer and constant light output (integrated)
|
| Control interface | -
|
| Dimmable | Yes
|
| Optic material | Acrylate
|
| Mounting device | Post-top for diameter 62 mm
|
| Housing Color | Silver
|
| Optical cover/lens shape | Narrow
|
| Optical cover/lens material | Polycarbonate
|
| Overall diameter | 570
mm
|
| Housing Material | Aluminum
|
| Fixation material | Steel
|
| Optical cover/lens finish | Frosted
|
| Effective projected area | 0.053
m²
|
| Reflector material | -
|
| Overall height | 277
mm
|
| Photocell | -
|
| Light source replaceable | Yes
|
| Light source engine type | LED
|
| Lamp family code | LED40
[LED module 4000 lm] |
| Driver included | Yes
|
| Service tag | Yes
|
| Product family code | BDP104
[TOWNGUIDE PERF T] |
| Number of gear units | 1 unit
|
| Embedded control | Constant light output and LumiStep dimming 8 hours
|
| Value ladder | Performance
|
| Lighting Technology | LED
|
| Maximum dim level | 50%
|
| Performance ambient temperature Tq | 25 °C
|
| Initial chromaticity | (0.43, 0.40) SDCM <5
|
| Init. Color Rendering Index Tolerance | +/-2
|
| Power consumption tolerance | +/-10%
|
| Luminous flux tolerance | +/-7%
|
| Ambient temperature range | -40 to +35 °C
|
| Number of light sources | 3
|
| Correlated Color Temperature (Nom) | 3000
K
|
| Optic type outdoor | Distribution symmetrical
|
| Luminous Efficacy (rated) (Nom) | 53
lm/W
|
| Optical cover/lens type | Polycarbonate bowl/cover frosted
|
| Upward light output ratio | 3
|
| Luminous Flux | 1,386
lumen
|
| Light source color | 830 warm white
|
| Color rendering index (CRI) | 80
|
| Luminaire light beam spread | 75°
|
| Standard tilt angle posttop | 0°
|
| Standard tilt angle side entry | -
|
